64
LC-32LD145
LC-39LD145

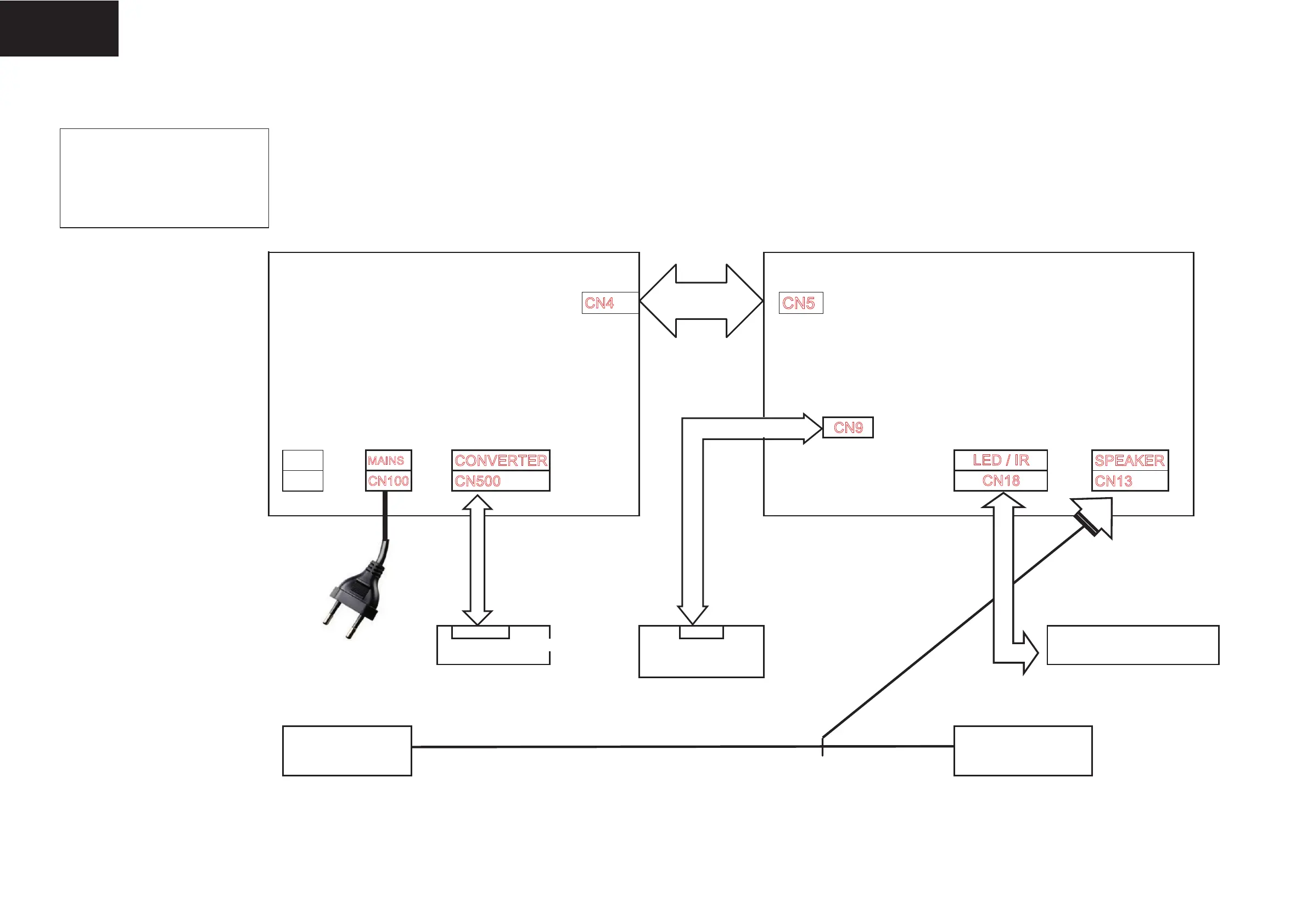

WIRING DIAGRAM
MAINBOARD
: MB82-2
PSU : 17IPS20
PANEL : 39'' VES390UNDC-01
MODEL : LC-39LD145E
LC-39LD145V
LC-39LD145K
17IPS20 R5 17MB82-2
CN4
CN5
PART CODE 23103484
CN9
SWITCH
MAINS
CONVERTER SPEAKER
PL101
CN100
CN500 CN13
CONN CONN
PANEL POWER SUPPLY LED / IR BOARD
PANEL T-CON BOARD
SPEAKER RIGHT SPEAKER LEFT
LED / IR
CN18
PART CODE 30077471
