Sharp LC-43CFE6242E Service Manual

80
2 ADC SETTING
It’s for adjusting the YPBPR and PC color. Press key “right” or “ok” to enter the subpage.
ADC Mode: Display current input source and resolution.
ADC Auto Adjust: Start to auto color to get ADC value.
[ADC]R-Gain: Display current ADC R value.
[ADC]R-Oset: Display current ADC R oset value.
[ADC]G-Gain: Display current ADC G value.
[ADC]G-Oset: Display current ADC G oset value.
[ADC]B-Gain: Display current ADC B value.
[ADC]B-Oset: Display current ADC B oset value
3 PICTURE
SOURCE: Current input source. (use for change source)
STANDARD SETTING: Standard analog quality setting (Like contrast ...etc) for dierent
Picture mode. It will change OSD picture menu’s standard picture mode setting.
NONLINE CURVE: The nonlinear curve for picture mode. To set OSD quality setting (like
contrast. brightness ...etc) the value 0,25,50.75.100 corresponding actual nonline curve value.
W/B ADJUST: Standard white balance setting. Select warm / cold / normal mode and
set its RGB value to change OSD picture menu’s white balance standard value. R-Gain
increase red colour, G-Gain increase green colour, B-Gain increase blue colour.
Color Setting, Luma Setting, Peaking Setting, NR Setting, CTI Setting, Gamma, DLC, Film
Mode, PQ By Pass: Change these setting will change register for PQ.
Suggest do not change these setting.

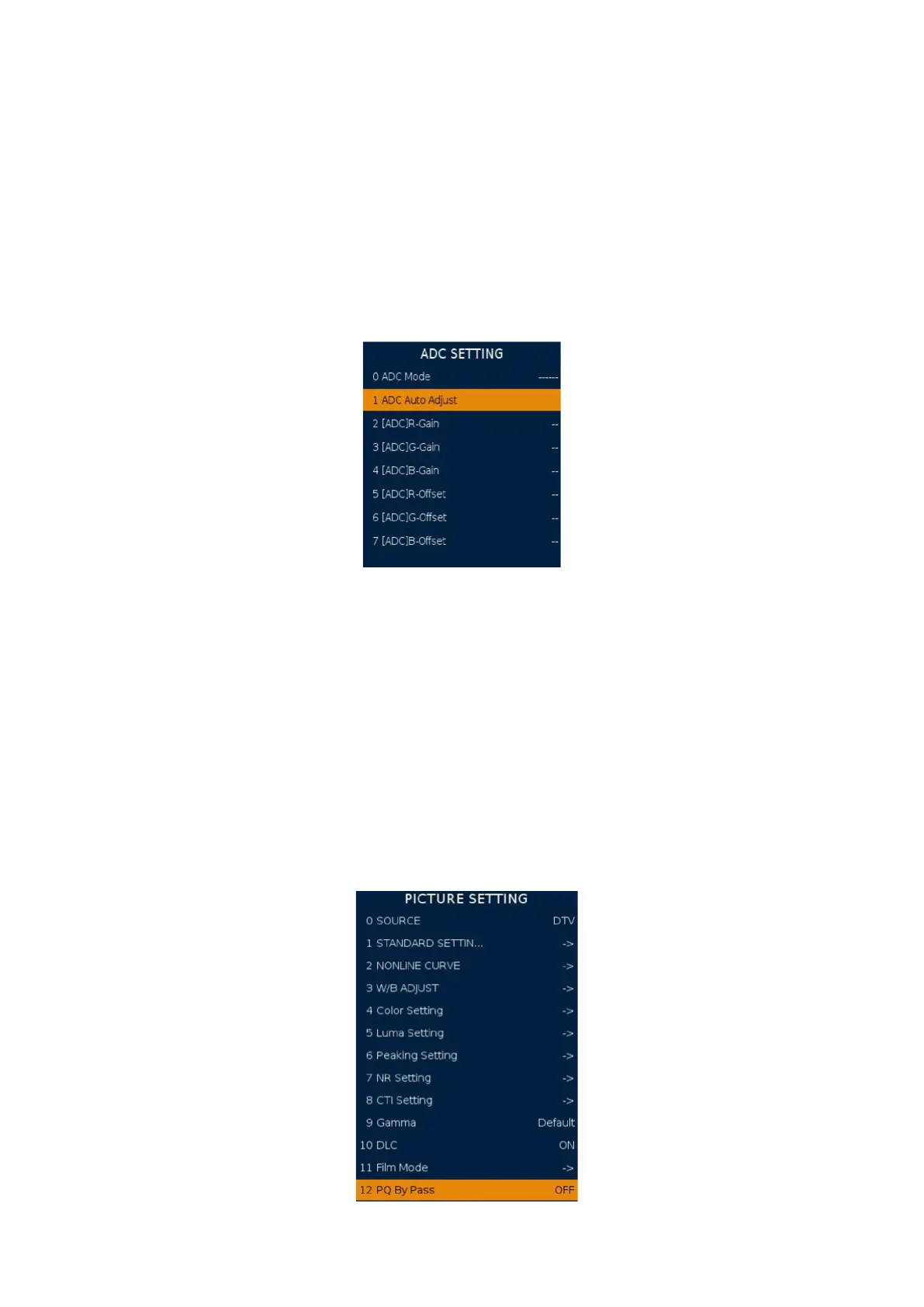

Picture 1 ADC Setting
Picture 2 Picture Setting

Sharp LC-43CFE6242E Specifications

General

Screen shape	Flat
Display diagonal	43 \
Display brightness	300 cd/m²
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Motion interpolation technology	Active Motion 400
3D	No
Annual energy consumption	60 kWh
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Video apps	YouTube
Lifestyle apps	Facebook, Twitter
Audio system	B/G, D/K, I, L, NICAM/A2
Audio decoders	Dolby Digital, DTS, DTS 2.0, Dolby Digital Plus
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	41 W
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV

Weight and Dimensions

Depth (with stand)	186.2 mm
Height (with stand)	594.6 mm
Weight (with stand)	7600 g
Depth (without stand)	67.1 mm
Width (without stand)	965.9 mm
Height (without stand)	558.3 mm
Weight (without stand)	7300 g
