Sharp LC-43CFE6242E Service Manual

82
6 DEBUG
MStar Fac Menu: Show MStar Factory Menu.
Uart Enable: To enable serial port with print debug infomation. If you want
to got the debug info by the ISP tool, you can set this item to “on”.
VIF setting: RF non-standard signal test.
Erase MAC: erase Mac address. The password is “4711”.
Erase HDCP Key: erase HDCP key. Must erase key before upgrade key. The password is “4711”.
Erase HDCP2.0 Key: erase HDCP2.0 key. Must erase key
before upgrade key. The password is “4711”.
Erase CIplus Key: erase CIplus key. Must erase key before upgrade key. The password is “4711”.
Erase ADC: Erase ADC value. The password is “4711”.
Erase WB: Erase white balance. The password is “4711”.
Era&Gen NandBin: Erase All and generate Nandbin (Use for production). The password
is “4711”. It will erase ash. This function is for CVTE test, Suggest do not erase this.
RB-Time: Suggest do not do this. The password is “4711”.
Format USB device: Format USB, your USB device will be NULL.
Print to USB: debug print information output to USB device. Easy to get print out.
Logo On/O: have power on logo or not.
7 GENERAL SETTING
Test Pattern: Display test picture to check panel.
OVERSCAN: It’s for adjusting the over scan of picture.
Timer Test: To speed up the time. Only for QC test.
WDT: Watch dog on or o
Power On Mode: After power on state. It’s for setting power state when power
on. There are three option o/on/last. ‘o’ means it’ll enter standby state; ’on’
means it’ll power on directly without standby; ‘last’ means it’ll enter the last state
: standby or power on. It decided by the state when you turn o the power.
EN ADC Value: Use for keypad test. Get keypad ADC value.
ADC Value: The ADC value of current press key. Use this need EN ADC Value turn to on.
CI+ Version Switch: Switch CI+ Version both 1.2 and 1.3. It will lead TV restart.
Hotel Mode: Enter Hotel mode setting.
Capture Screen: If set to On, we can capture screen when press setup key.

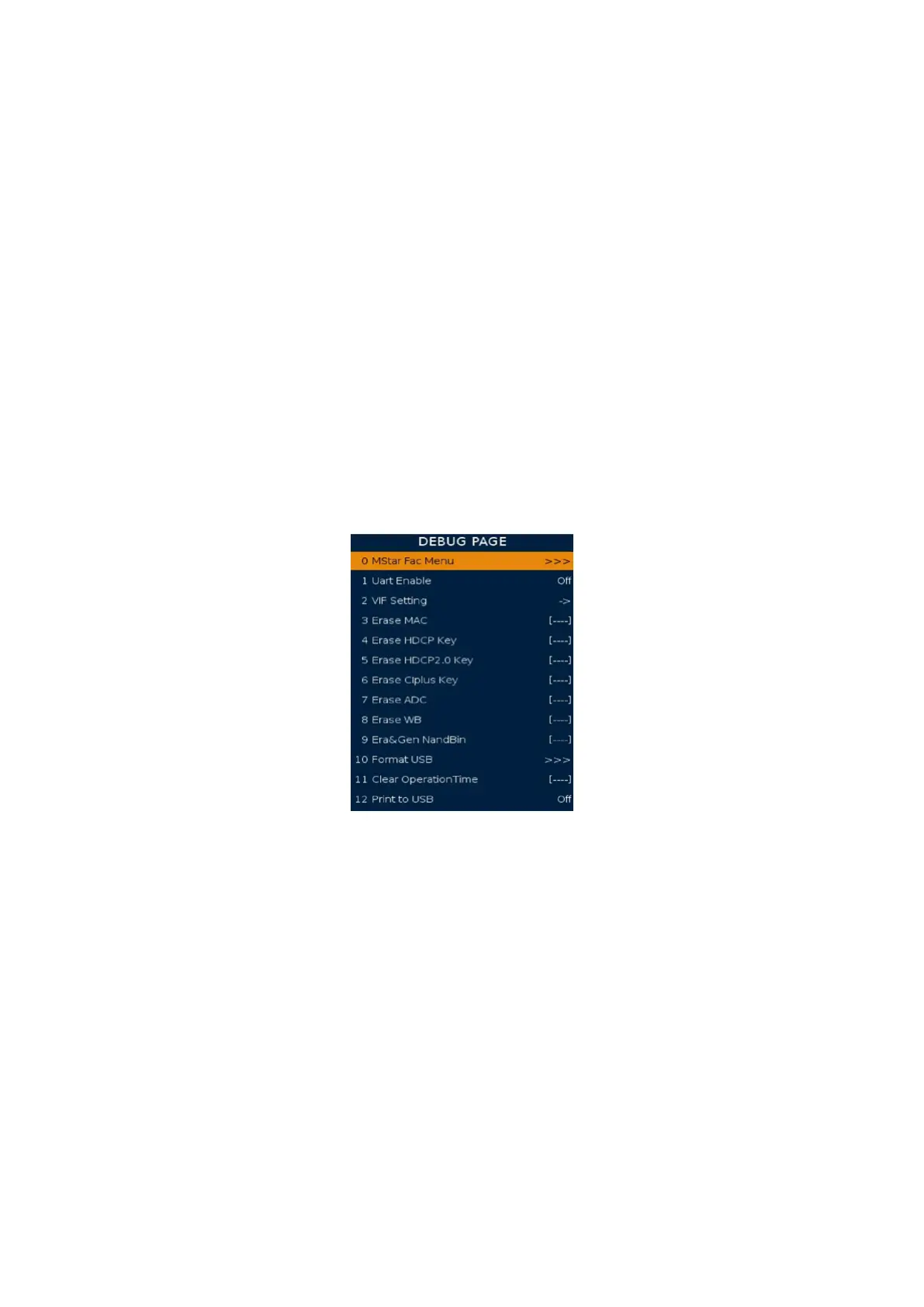

Picture 5 Debug page

Sharp LC-43CFE6242E Specifications

General

Screen shape	Flat
Display diagonal	43 \
Display brightness	300 cd/m²
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Motion interpolation technology	Active Motion 400
3D	No
Annual energy consumption	60 kWh
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Video apps	YouTube
Lifestyle apps	Facebook, Twitter
Audio system	B/G, D/K, I, L, NICAM/A2
Audio decoders	Dolby Digital, DTS, DTS 2.0, Dolby Digital Plus
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	41 W
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV

Weight and Dimensions

Depth (with stand)	186.2 mm
Height (with stand)	594.6 mm
Weight (with stand)	7600 g
Depth (without stand)	67.1 mm
Width (without stand)	965.9 mm
Height (without stand)	558.3 mm
Weight (without stand)	7300 g
