Sharp LC-43CFE6242E Service Manual

88

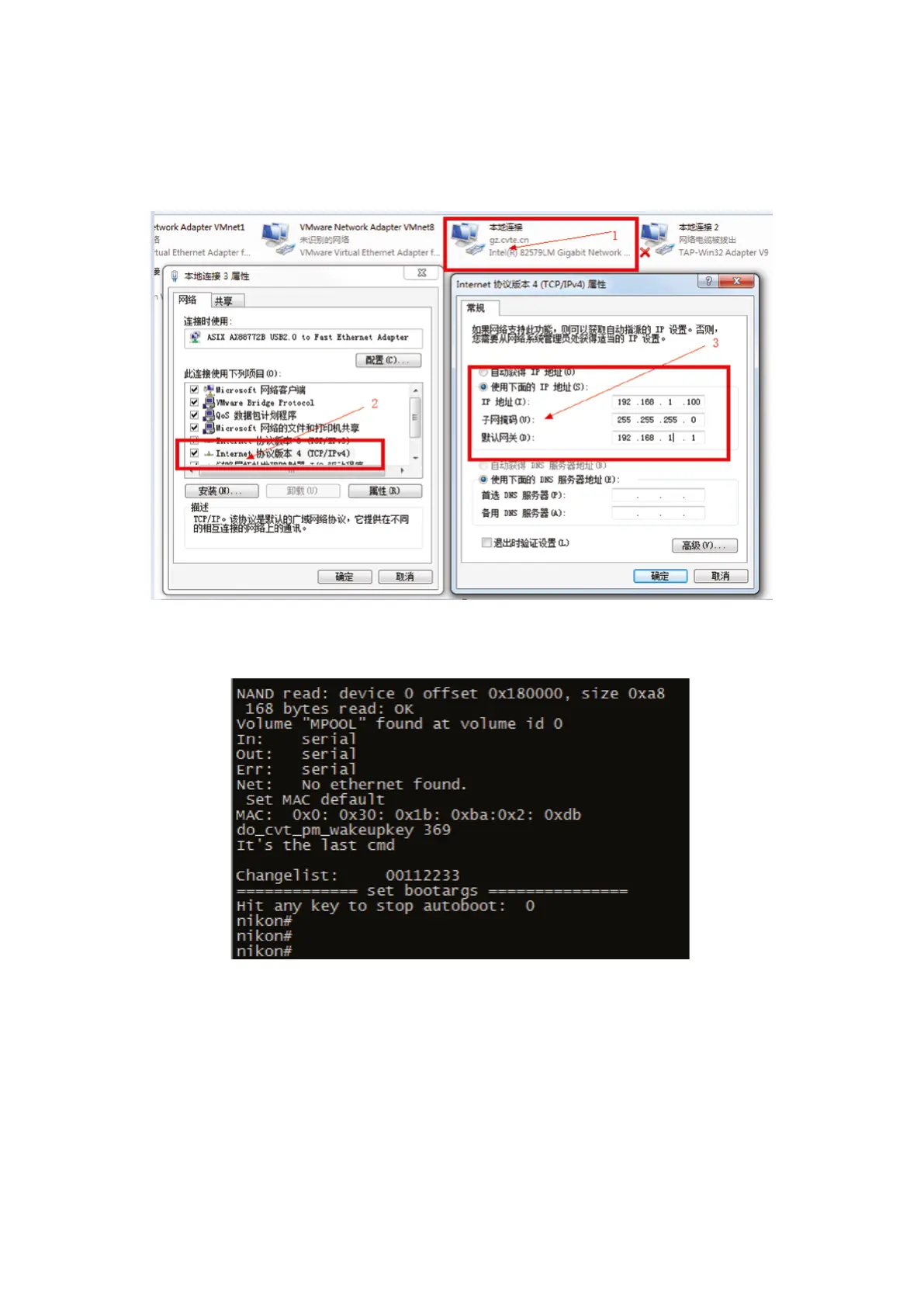

C Upgrade Process
• Connect serial port tools
• Connect the PC and main board with network cable, connect the serial port. Set the cable
adapter IP as 192.168.1.100.
• Connect serial port, and then power on, press enter button until nugget # display.
• Connect the serial port, enter the following command to set main board and tftp server IP.
setenv ipaddr 192.168.1.101
setenv serverip 192.168.1.100
saveenv
es

Sharp LC-43CFE6242E Specifications

General

Screen shape	Flat
Display diagonal	43 \
Display brightness	300 cd/m²
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Motion interpolation technology	Active Motion 400
3D	No
Annual energy consumption	60 kWh
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Video apps	YouTube
Lifestyle apps	Facebook, Twitter
Audio system	B/G, D/K, I, L, NICAM/A2
Audio decoders	Dolby Digital, DTS, DTS 2.0, Dolby Digital Plus
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	41 W
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV

Weight and Dimensions

Depth (with stand)	186.2 mm
Height (with stand)	594.6 mm
Weight (with stand)	7600 g
Depth (without stand)	67.1 mm
Width (without stand)	965.9 mm
Height (without stand)	558.3 mm
Weight (without stand)	7300 g
