LC-60/70/80LE650U/LE657U/C6500U/LE757U/LE857U,60/70LE755U/C7500U
4 – 19

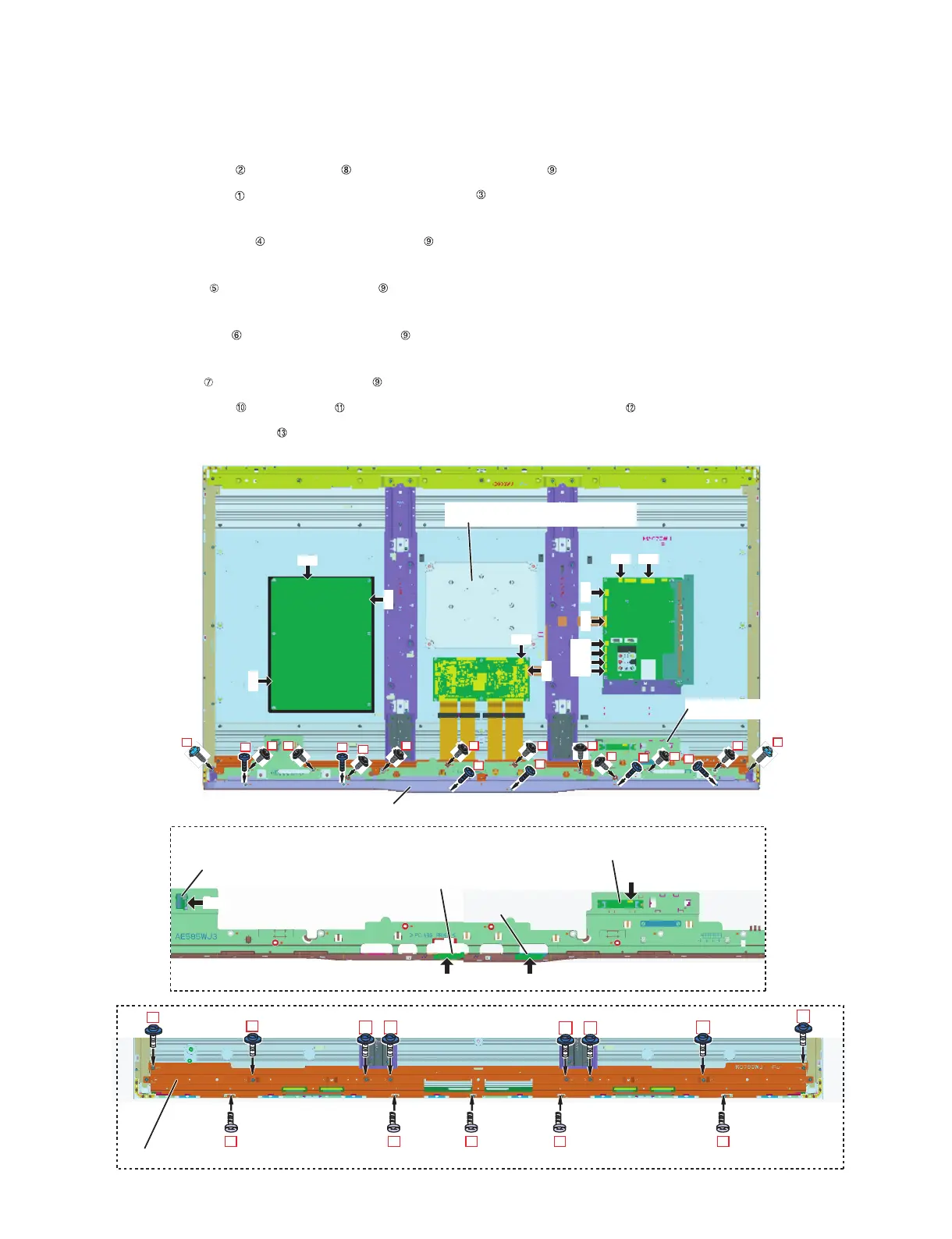

3. Removeing of Connectors and Decoration Cover, Front Cover Ass'y and Back Light Support Angle Bottom
Ass'y.
1. Disconnect the following connectors from MAIN Unit. (SB,PD,LV)
2. Disconnect the following connectors from POWER/DRIVE Unit. (L1,PD)
3. Disconnect the following connectors from LCD CONTROL Unit. (PL,LV)
4. Remove the 2 lock screws , 10 lock screws and detach the Front Cover Ass'y .
5. Remove the 6 lock screws and detach the Decoration Cover (Rear) .
6. Disconnect the following connector from BLUETOOTH Unit. (BT)
7. Detach the BLUETOOTH Unit from the Front Cover Ass'y .
8. Disconnect the following connector from ICON Unit. (CI)
9. Detach the ICON Unit from the Front Cover Ass'y .
10.Disconnect the following connector from R/C OPC Unit. (RA)
11.Detach the R/C OPC Unit from the Front Cover Ass'y .
12.Disconnect the following connector from WiFi Unit. (UB)
13.Detach the WiFi Unit from the Front Cover Ass'y .
14.Remove the 8 lock screws , 5 lock screws and detach the BL Support Angle Ass'y (Bottom) .
15.Detach the Speaker Unit (Woofer) .
PDSB
RC
BT
IR
UB
LV SP
AC
LV
PL
PD
L1
11
1
1
1
1
ԚDecoration Cover (Rear)
ԛBLUETOOTH UNIT
BT
ԜICON UNIT
CI RA
ԝR/C OPC UNIT
ԞWiFi UNIT
UB
٨Front Cover Ass'y Ԡ
2
2
8 8 8 8 8 8 8
8 8
8
1010
10
10
10
10
11
11
11
11
11
ԣ$.5WRRQTV#PING#UU[$QVVQO
ԠFront Cover Ass'y
ԤSpeaker Unit (Woofer)
10 10
To Next Page
