Sharp MX-2300G Service Manual

MX3500N SIMULATION 7 – 9

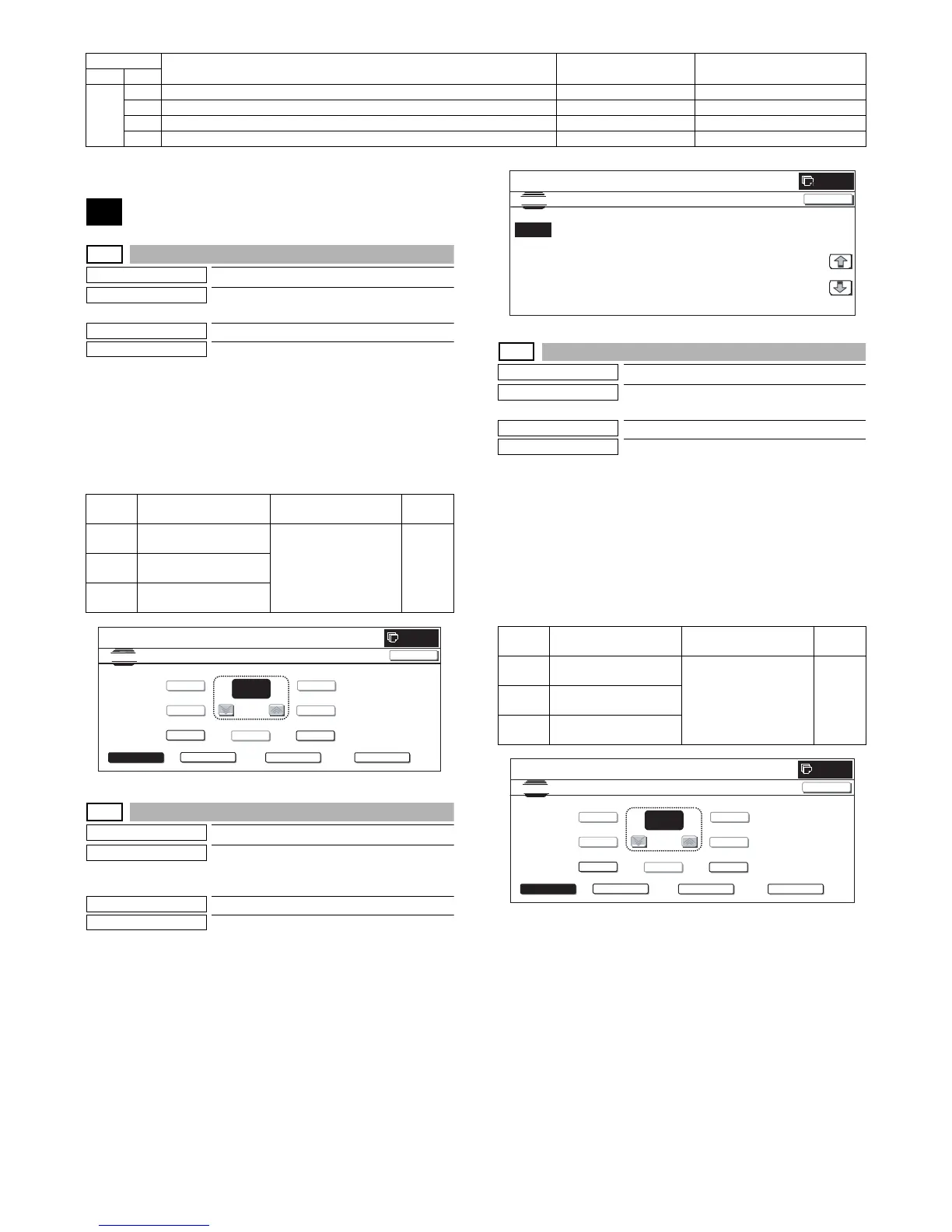

3. Details of simulation
1
1-1
Purpose
Operation test/check
Function (Purpose)
Used to check the operations of the scan-
ner unit and its control circuit.
Section
Optical (Image scanning)
Item
Operation
Operation/Procedure
1) Select the operation mode with the buttons on the touch panel.
2) Select the magnification ratio with [ZOOM] button on the touch
panel.
3) Press [EXECUTE] button.
The scanner scans at the speed corresponding to the opera-
tion mode.
1-2
Purpose
Operation test/check
Function (Purpose)
Used to check the operation of sensor and
detector in the scanning (read) section and
the related circuit.
Section
Optical (Image scanning)
Item
Operation
Operation/Procedure
The sensor and detector operation conditions are displayed.
The active sensors and detectors are highlighted.
• The scanner (read) unit is in the home position.: "MHPS" section
is highlighted.
• The scanner (read) unit is not in the home position.: "MHPS" is
normally displayed.
1-5
Purpose
Operation test/check
Function (Purpose)
Used to check the operations of the scan-
ner unit.
Section
Optical (Image scanning)
Item
Operation
Operation/Procedure
1) Select the operation mode with the buttons on the touch panel.
2) Select the magnification ratio with [ZOOM] button on the touch
panel.
3) Press [EXECUTE] button.
The scanner scans continuously at the speed corresponding to
the operation mode.
When [EXECUTE] button is pressed, the operation is termi-
nated.
67 31 Used to clear the printer calibration value. Printer Data clear
32 Used to set YES/NO of screen color change for each object. – Setting
33 Used to execute the gamma correction between printer screens. (for PCL) Printer Adjustment
33 Used to execute the gamma correction between printer screens. (for GDI) Printer Adjustment
Code
Function (Purpose) Section Purpose
Main Sub
Button
display
Content
Selectable
magnification ratios
Default
value
50 Scan magnification ratio:
50%
COLOR: 50%, 100%,
200%
BLACK (High speed):
100%, 200%
BLACK (Low speed):
50%, 100%, 200%
100%
100 Scan magnification ratio:
100%
200 Scan magnification ratio:
200%
CLOSE
BLACK(SLOW)
0
SIMULATION NO.01-01
SCANNER CHECK
TEST
EXECUTE
150 200
ZOOM
100
%
BLACK(FAST)
COLOR
25
50
100
300
400
Button
display
Content
Selectable
magnification ratio
Default
value
50 Scan magnification ratio:
50%
COLOR: 50%, 100%,
200%
BLACK (High speed):
100%, 200%
BLACK (Low speed):
50%, 100%, 200%
100%
100 Scan magnification ratio:
100%
200 Scan magnification ratio:
200%
0
SIMU LATIO N  NO.01 㧙 02
TEST
SCAN NER SENSO R CHE CK
MHPS
1/1
CLOSE
CLOSE
BLACK(SLOW)
0
SIMULATION NO.01-05
SCANNER CHECK
TEST
EXECUTE
150 200
ZOOM
100
%
BLACK(FAST)
COLOR
25
50
100
300
400
