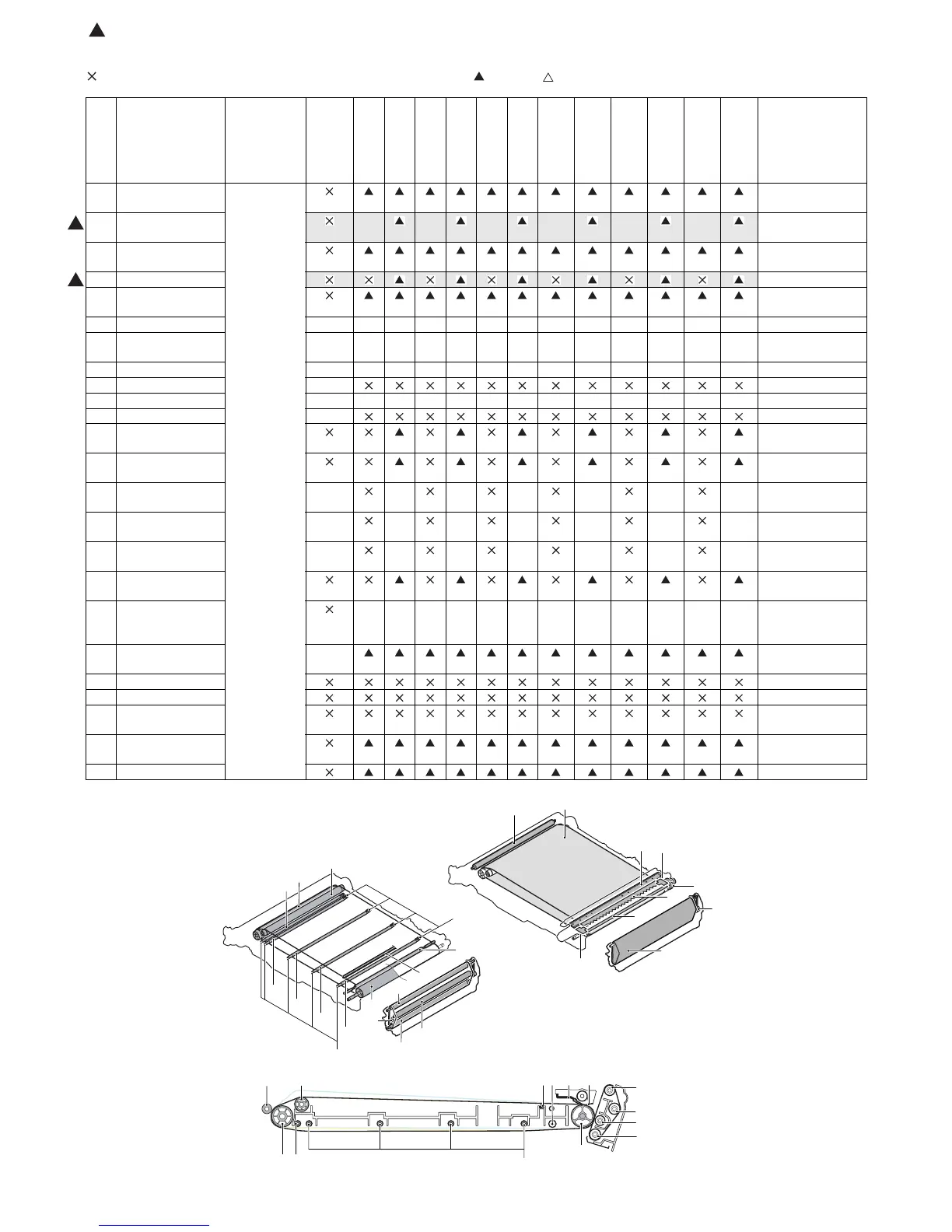

MX3500N MAINTENANCE 9 – 7
D. Transfer section
: Check (Clean, replace, or adjust according to necessity.) {: Clean : Replace : Adjust ✩: Lubricate : Shift the position.
No. Part name
Monochrome
supply/
Mechanical
parts
When
calling
150
K
300
K
450
K
600
K
750
K
900
K
1050
K
1200
K
1350
K
1500
K
1650
K
1800
K
Remark/Refer to
the Parts Guide.
Block/Item No.
(Only the
replacement parts
are described.)
1 Primary transfer
belt
Mechanical
parts
(P/G No.: [25]-3)
2 Primary transfer
roller
{ { { { { { (P/G No.: [26]-9)
(P/G No.: [27]-27)
3 Primary transfer
blade
(P/G No.: [24]-19)
4 Belt drive gear
(P/G No.: [26]-13)
5 Primary transfer
conduction collar
(P/G No.: [26]-8)
(P/G No.: [27]-25)
6 Transfer drive roller {{{{{{ { {{{{{
7 Transfer follower
roller
{{{{{{ { {{{{{
8 Tension roller {{{{{{ { {{{{{
9 Belt CL brush
10 Y auxiliary roller {{{{{{ { {{{{{
11 Resist backup roller
12 Secondary transfer
belt
(P/G No.: [29]-21)
13 Secondary transfer
roller
(P/G No.: [29]-6)
14 Secondary belt
drive roller
{{{ { { {
15 Secondary belt
tension roller
{{{ { { {
16 Secondary belt
follower roller
{{{ { { {
17 Secondary transfer
drive idle gear
(P/G No.: [28]-6)
18 Sensors (Process
control resist
sensors)
{{{{{{ { {{{{{
19 Primary transfer CL
roller
(P/G No.: [25]-56)
20 Cleaner seal
21 Cleaner seal R
22 Transfer toner
reception seal
23 Primary transfer
roller bearing
(P/G No.: [26]-40)
(P/G No.: [27]-35)
24 Packing Mylar (P/G No.: [24]-25)
5
5
5
1
4
23
20
21
21
12
17
10
8
8
7
6
15
16
14
15
13,17
16
4,6
107
2,5
18
18
11
9 3
22
13
11
9
14
2
2
2
2
19
3
: Jul. 15 2006
5
