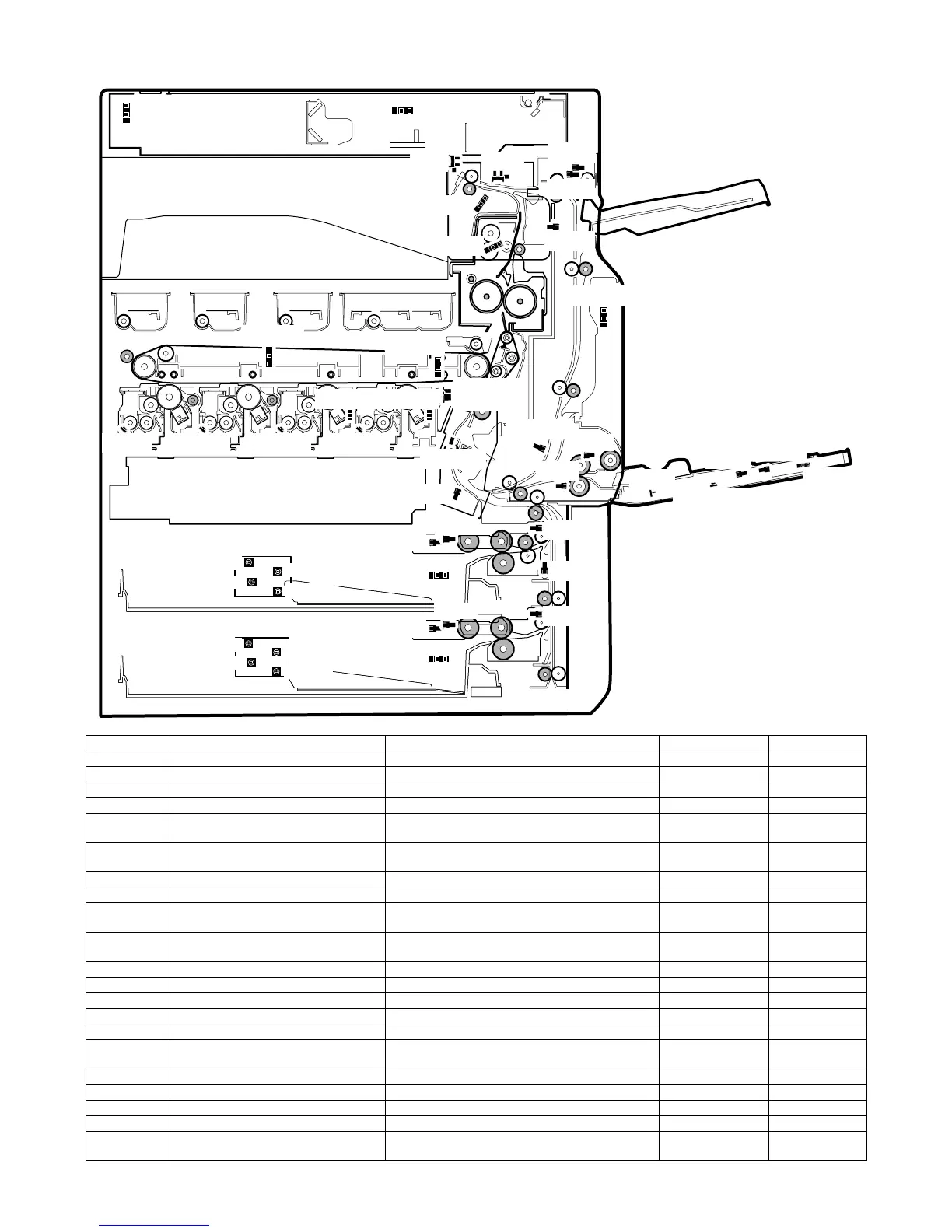

MX3500N EXTERNAL VIEW AND INTERNAL STRUCTURE 5 – 7
G. S en so rs
Signal name Name Function/Operation Type NOTE
1TUD_CL Transfer belt separation CL detection Detects the transfer belt separation CL. Transmission type
1TUD_K Transfer belt separation BK detection Detects the transfer belt separation BK. Transmission type
APPD1 ADU transport path detection 1 Detects the duplex (ADU) upstream paper pass. Transmission type
APPD2 ADU transport path detection 2 Detects the duplex (ADU) midstream paper pass. Transmission type
CLUD1 Tray 1 upper limit detection (Lift HP
detection)
Detects tray 1 upper limit. Transmission type
CLUD2 Tray 2 upper limit detection (Lift HP
detection)
Detects tray 2 upper limit. Transmission type
CPED1 Tray 1 paper empty detection Detects tray 1 paper empty. Transmission type
CPED2 Tray 2 paper empty detection Detects tray 2 paper empty. Transmission type
CPFD1 Tray 1 transport detection (Paper entry
detection)
Detects tray 1 paper pass. Transmission type
CPFD2 Tray 2 transport detection (Paper entry
detection)
Detects tray 2 paper pass. Transmission type
CSPD1 Tray 1 paper remaining quantity detection Detects tray 1 paper remaining quantity. Transmission type
CSPD2 Tray 2 paper remaining quantity detection Detects tray 2 paper remaining quantity. Transmission type
DHPD_CL CL phase detection Detects the CL phase.
DHPD_K BK phase detection Detects the BK phase.
DSW_ADU ADU transport open/close detection Detects the duplex (ADU) cover open/close. Transmission type
DSW_C Tray 1 and 2 transport cover open/close
detection
Detects the tray 1 and 2 transport cover open/close. Transmission type
HPOS Shifter home position detection Detects the shifter home position. Transmission type
MHPS Scanner home position sensor Detects the scanner home position. Transmission type
MPED Manual feed paper empty detection Detects the manual feed paper empty. Transmission type
MPFD Manual feed paper entry detection Detects the manual feed paper entry. Transmission type
MPLD Manual feed paper length detector Detects the manual paper feed tray paper length. Transmission type Manual paper
feed unit
OCSW
CSPD2
CSPD1
CLUD2
HPOS
POD2
CPED2
CLUD1
TFD2
CPED1
MPLD
TH_M/HUD_M
DHPD_CL
TCS_M TCS_C TCS_K
1TUD_K
1TUD_CL
DHPD_K
CPFD1
PPD1
PPD2
POD1
MTOP2
REGS_F/R
PCS_CL/K
MTOP1
MPWD
MPED
APPD2
MPFD
POD3
TCS_Y
CPFD2
DSW_C
TFD3
MHPS
DSW_ADU
APPD1
CSS2
CSS1
CSS12
CSS13
CSS14
CSS11
CSS22
CSS23
CSS24
CSS21
