MX3500N EXTERNAL OUTFIT A – 1
MX3500N
Service Manual
[A] EXTERNAL OUTFIT

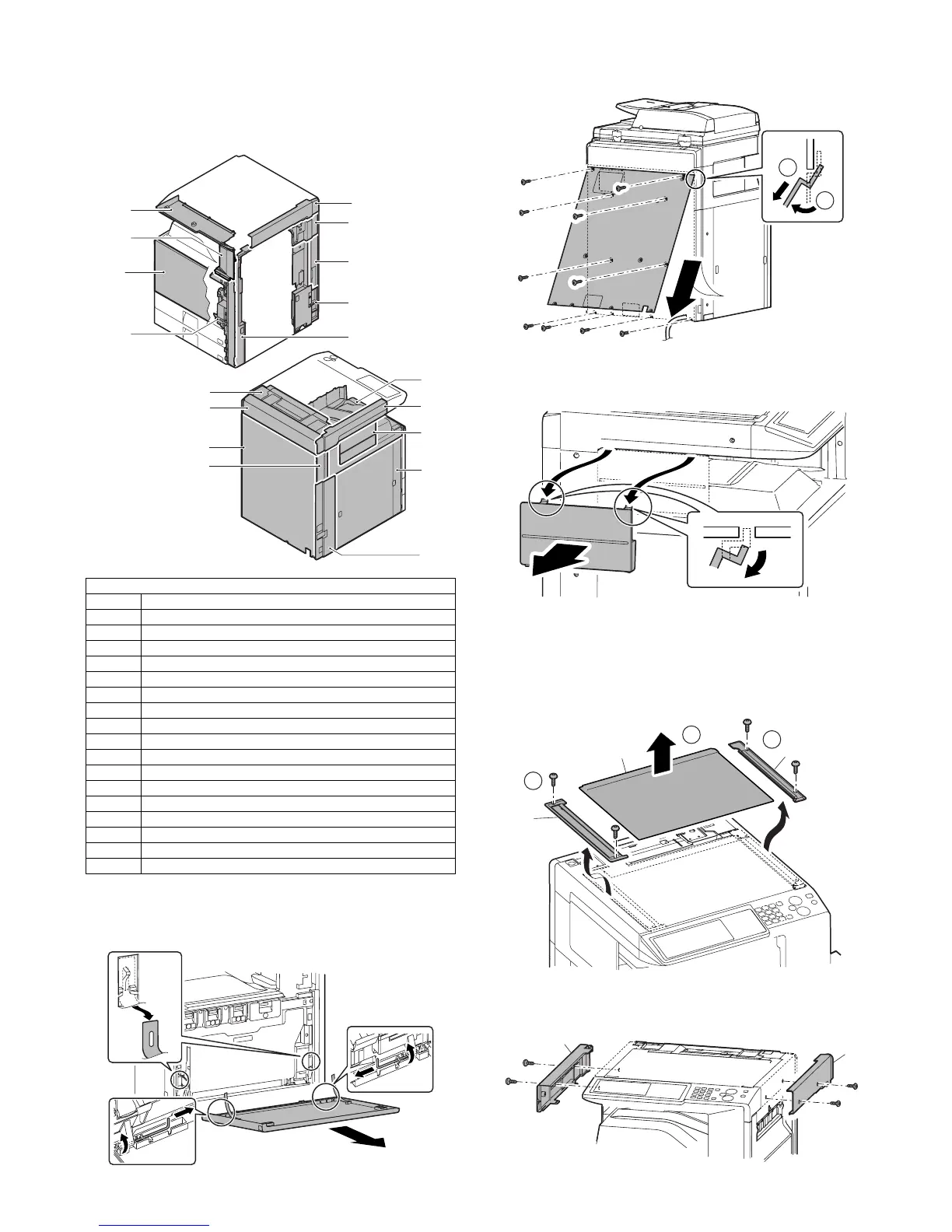

1. Disassembly and assembly
A. Cabinet
(1) Front cabinet
1) Remove the front cabinet band and the front cabinet hinge,
and remove the front cabinet.
(2) Rear cabinet
1) Remove the screws, and remove the rear cabinet.
(3) Paper exit cover
1) Disengage the pawl, and remove the paper exit cover.
(4) Upper cabinet right
(5) Upper cabinet left
1) Remove the paper exit cover.
2) Remove the SPF glass (A). Remove the glass holder (B) and
the table glass (C).
3) Remove the screws, and remove the upper cabinet right (A)
and the upper cabinet left (B).
Parts
(1) Front cabinet
(2) Rear cabinet
(3) Paper exit cover
(4) Upper cabinet right
(5) Upper cabinet left.
(6) Paper exit tray cabinet
(7) Left cabinet rear
(8) Left cabinet rear lower
(9) Left cabinet
(10) Upper cabinet rear cover
(11) Upper cabinet rear
(12) Front cabinet upper
(13) Frame cover
(14) Right cabinet front
(15) Right connection cabinet
(16) Right cabinet rear cover
(17) Right cabinet rear
(18) Operation panel base plate
(1)
(12)
(18)
(4)
(15)
(16)
(17)
(14)
(13)
(10)
(11)
(2)
(7)
(6)
(5)
(3)
(9)
(8)
1
2
1
A
3
B
C
2
A
B
