MX3500N EXTERNAL OUTFIT A – 2

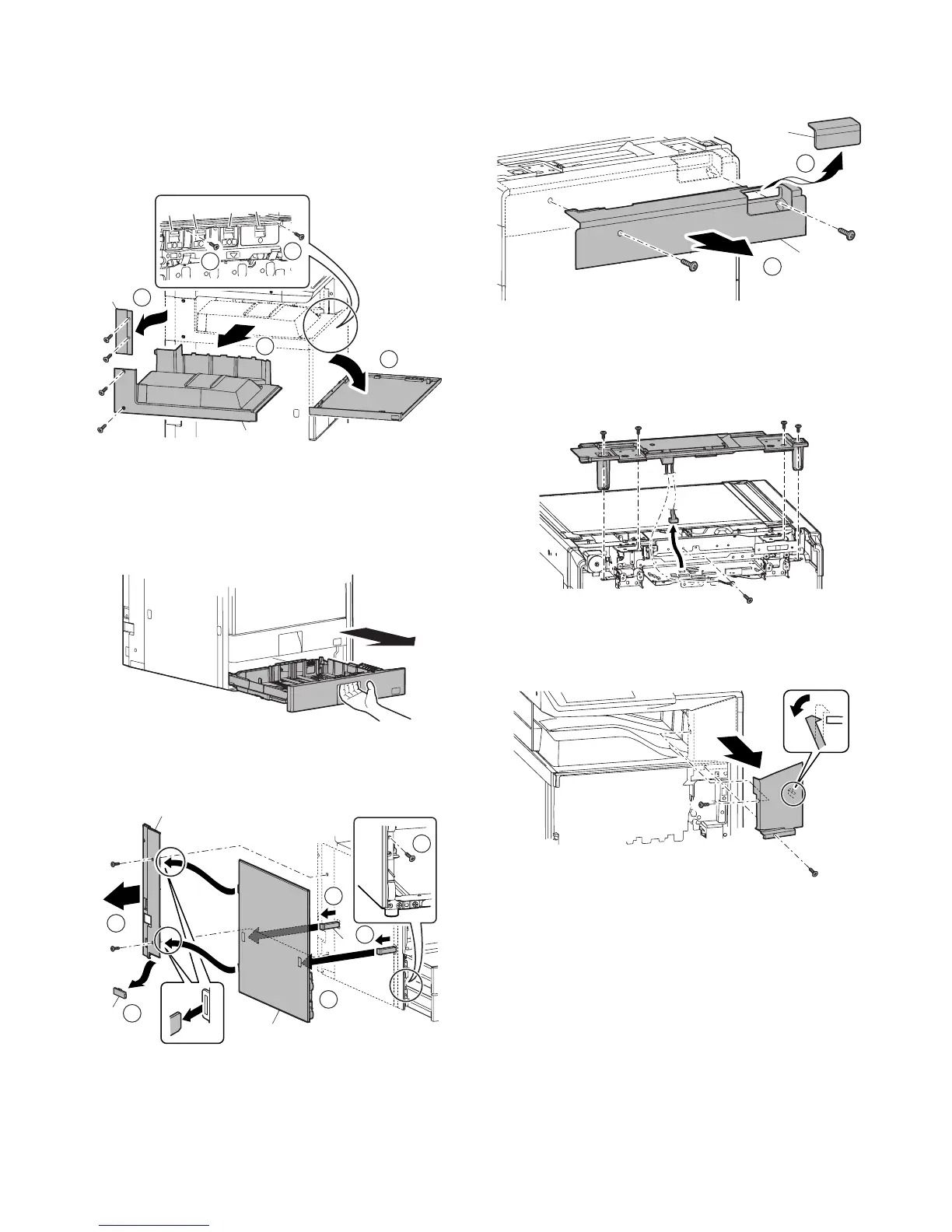

(6) Paper exit tray cabinet
(7) Left cabinet rear
1) Remove the paper exit cover.
2) Open the front cabinet and remove the screws.
Remove the screws, and remove the paper exit tray cabinet
(A).
Remove the screws, and remove the left cabinet rear (B).
(8) Left cabinet rear lower
(9) Left cabinet
1) Remove the paper exit tray cabinet.
2) Remove the left cabinet rear.
3) Pull out the paper feed tray units 1 and 2.
4) Pull out the knob (A). Remove the desk connection cover (B).
Remove the screws, then remove the left cabinet rear lower
(C) and the left cabinet (D).
(10) Upper cabinet rear cover
1) Remove the upper cabinet rear cover lid (A). Remove the
screws, and remove the upper cabinet rear cover (B).
(11) Upper cabinet rear
1) Remove the upper cabinet rear cover.
2) Disconnect the connector. Remove the screws, and remove
the grounding wire. Remove the screws, and remove the
upper cabinet rear.
(12) Front cabinet upper
1) Open the front cabinet. Remove the screws, and remove the
front cabinet upper.
1
4
A
B
3
2
2
BK
C
M
Y
1
2
3
D
C
A
B
1
4
5
1
2
A
B
