40

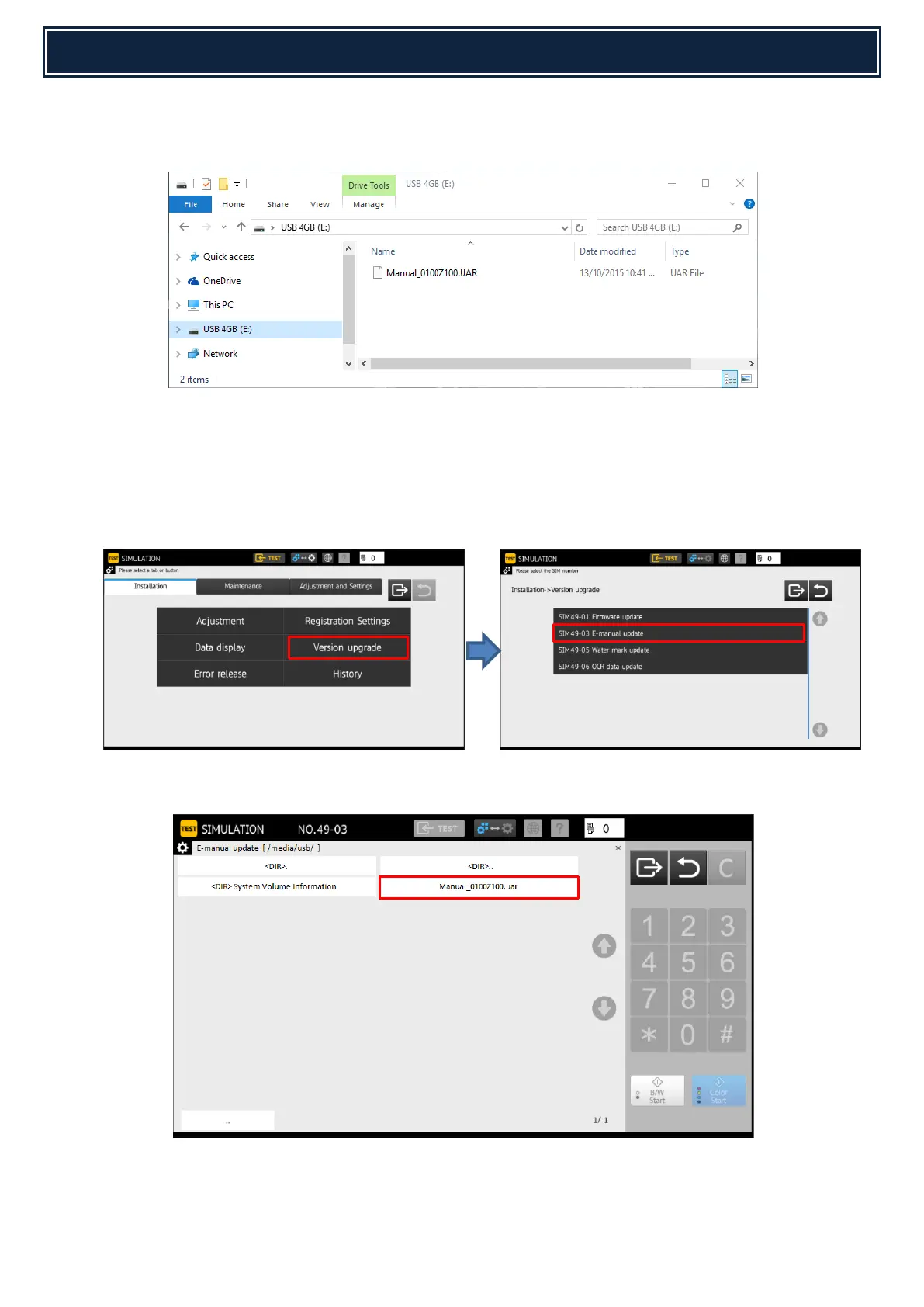

1. Using a PC, copy the E-Manual Update file onto the root of a USB memory device (as shown).
Note: The E-Manual firmware for MX-3070/3570/4070N series consists of 1 file (*.UAR).
2. Insert the USB memory device containing the E-Manual firmware file into the main USB Port and
enter Simulation 49-03 [E-MANUAL UPDATE].
Note:
When using Easy Mode, select Version Upgrade from the Installation tab and execute SIM49-03
E-Manual Update. In addition, if no USB device is detected, an error message will be displayed.
3. Browse and select the E-manual update file – example shown = Manual_0100Z100.uar:-
4. The current and updated version should then be displayed. Press Execute to commence the E-manual
upgrade.
To Next Page
