Sharp MX-3070N

SHARP

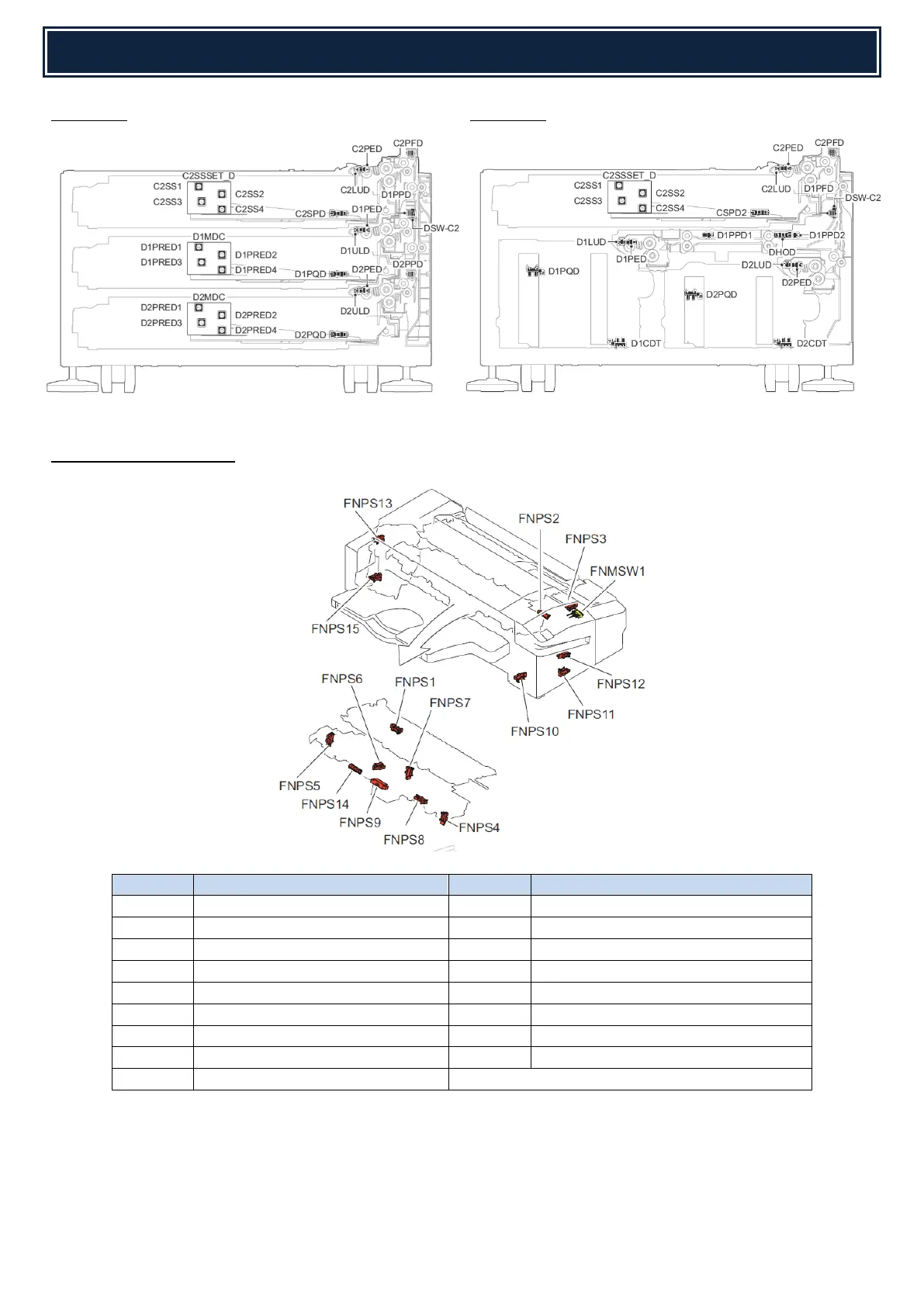

SENSOR LOCATION
69
MX-DE27: MX-DE28:
MX-FN27 Inner Finisher:
No.
Description
No.
Description
FNPS1
Delivery Sensor
FNPS10
Stack Tray Lower Limit Sensor
FNPS2
Paddle HP Sensor
FNPS11
Stapler Shift HP Sensor
FNPS3
Return Belt HP Sensor
FNPS12
Manual Staple Sensor
FNPS4
Front Alignment Plate HP Sensor
FNPS13
Clinch Motor Drive Detection Sensor
FNPS5
Rear Alignment Plate HP Sensor
FNPS14
Stack Tray HP Sensor
FNPS6
Processing Tray Paper Sensor
FNPS15
Clinch HP Sensor
FNPS7
Assist HP Sensor
FNPS16
Divide Sensor
FNPS8
Paper Fold HP Sensor
MSW1
Front Cover Switch
FNPS9
Stack Tray Paper Height Sensor
