Sharp MX-3610N - Page 30

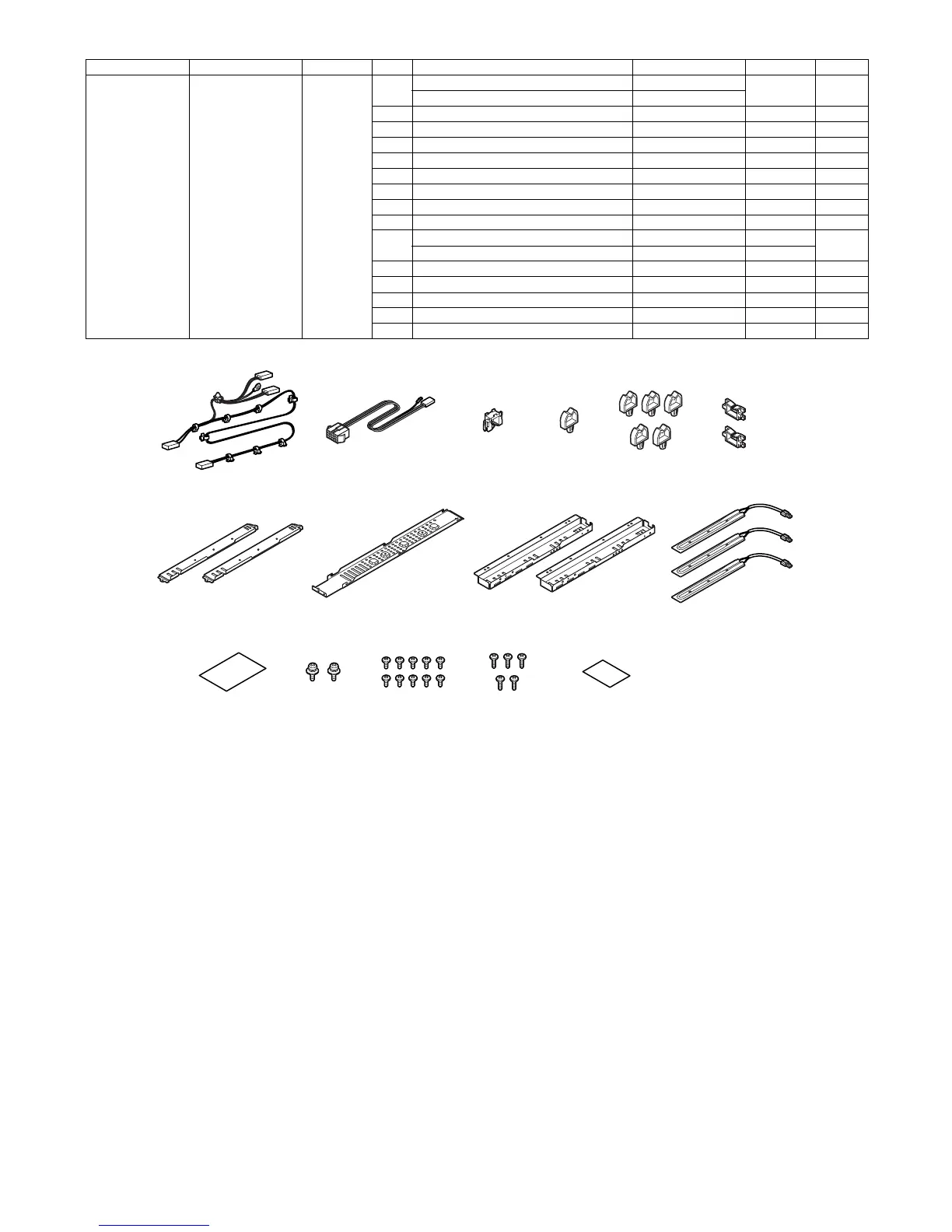

MX-3610N Dehumidifying heater 3 – 3
Kit name Kit code Price rank No. Part name Part code Price rank Q'ty
2-/3-stage desk
heater kit
DKIT-0423FCZZ
(120V series)
DKIT-0423FC11
(200V series)
1 Heater harness (120V series) DHAI-4608FCZZ BA 1
Heater harness (200V series) DHAI-4758FCZZ
2 Heater harness 2 DHAI-4609FCZZ AT 1
3 Edge saddle LBSHZ0366FCZZ AC 1
4 Clamp LHLDW1009ACZZ AA 1
5 Clamp LHLDW1225FCZZ AB 4
6 Edge wire saddle LHLDW1503FCZZ AE 2
7 Desk heater mounting plate LPLTM6021FCZZ AQ 2
8 Heater mounting plate LPLTM8096FCZZ AX 1
9 Heater radiating plate PRDAR0087FCZZ AL 2
10 Desk heater (120V series) RHETP0144FCZZ BS 3
Desk heater (200V series) RHETP0139FCZZ BS
11 High temperature caution label TLABZ5459FCZZ AE 1
12 Screw (M4 x 8) XBPS740P08K00 AA 2
13 Screw (M3 x 4 S tight bind) XHBS730P04000 AA 10
14 Screw (M3 x 6 S tight bind) XHBS730P06000 AC 5
15 High temperature caution label TCAUH1035FCZZ AC 1
123
456
78
11 12 13 14 15
910
