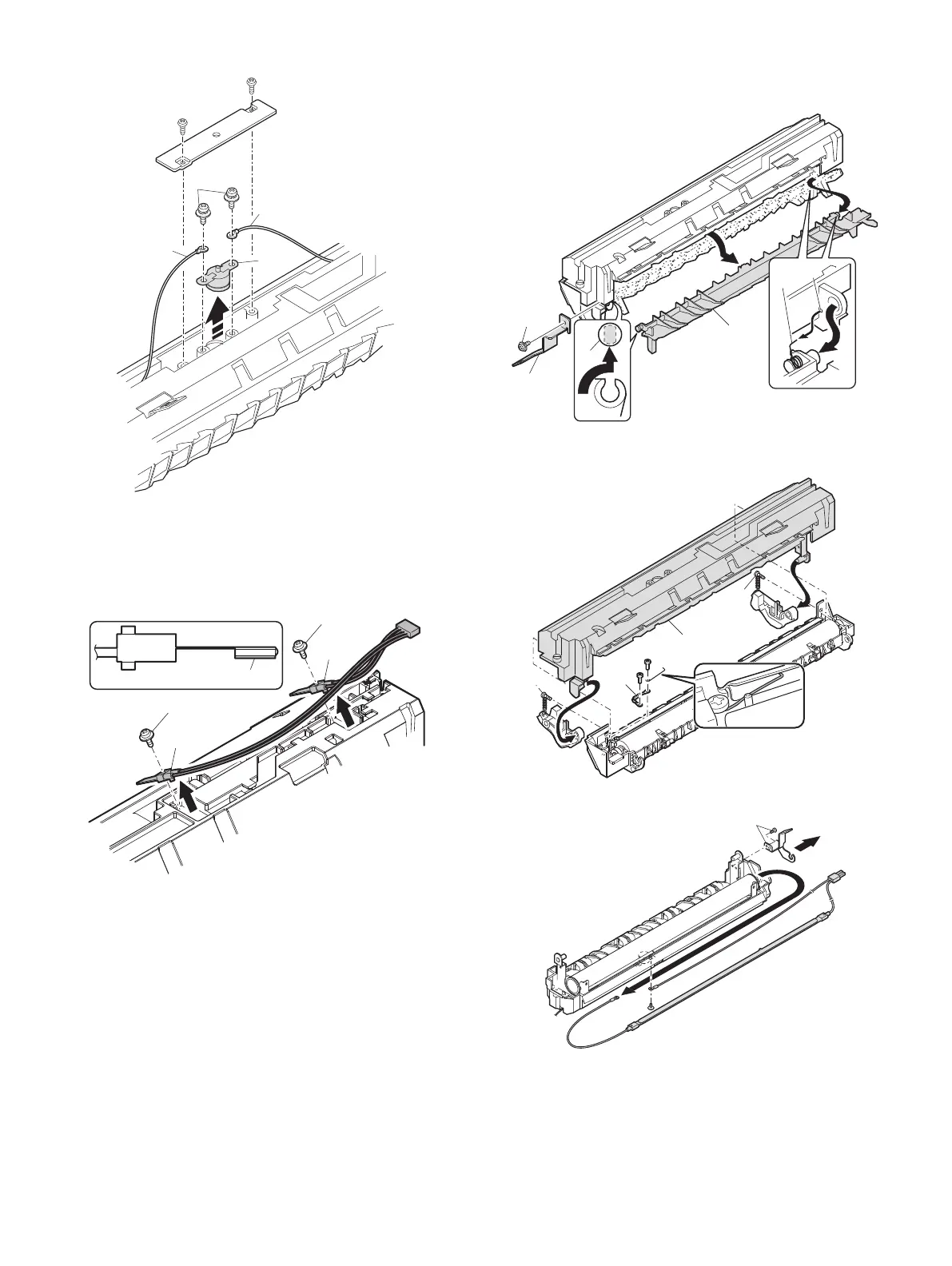

MX-M182 DISASSEMBLY AND ASSEMBLY 10-5
B. Thermostat
C. Thermistor
Installation: Install in direction that the sponge side (A) of the thermistor
comes in contact with heat roller.
Check that the thermistor is in contact with the upper heat
roller.
D. Heater lamp
Assembly: Insert the spring (A) into the hole (B) in the fusing frame.
Assembly: Put the fusing harness (A) on the heater lamp (B) as shown
in the figure and fix them together.<R>Place the fusing
harness inside the rib (C).
(1)
(2)
(3)
(2)
(A)
(1)
(2)
(1)
(2)
(A)
(B)
(3)
(1)
(3)
(2)
(2)
