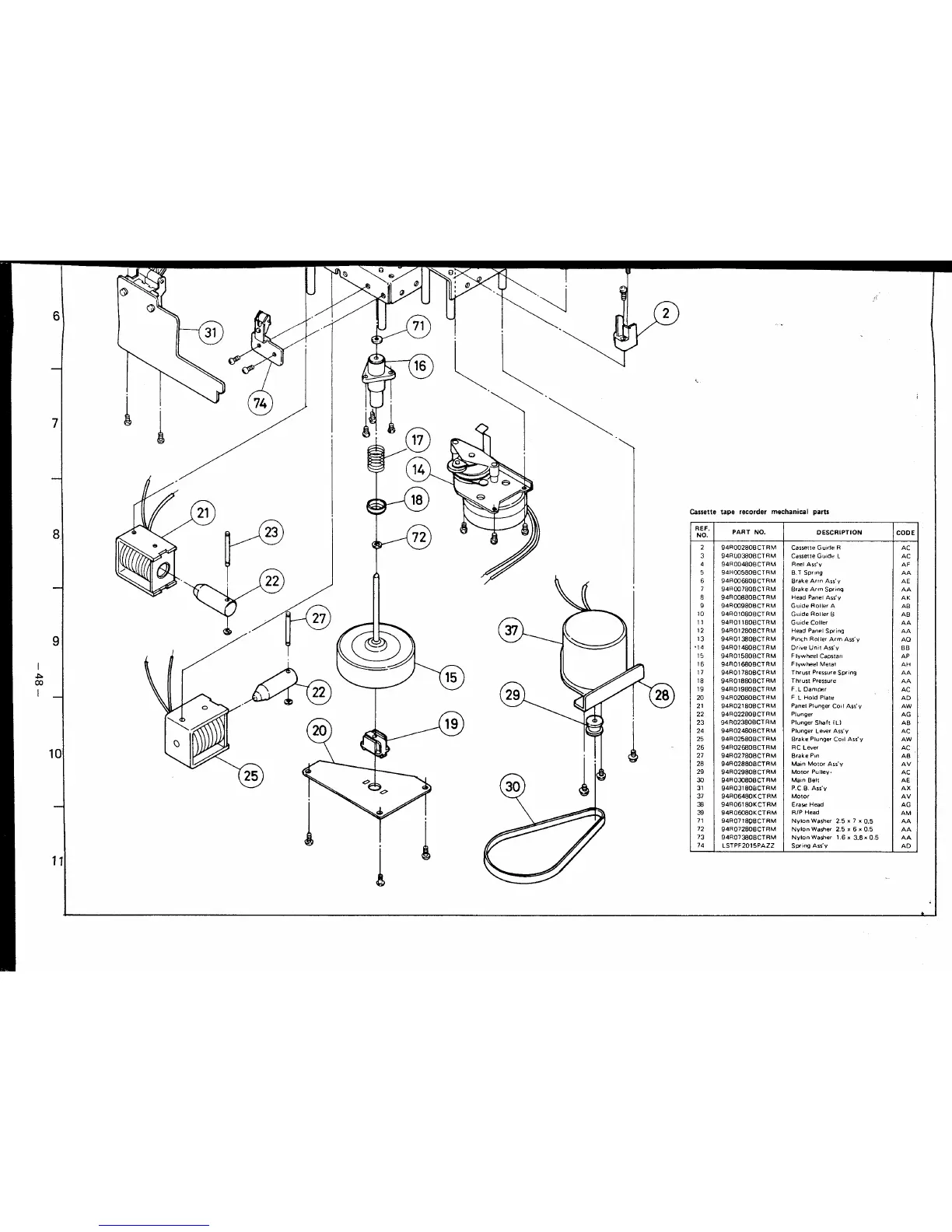

Cassette tape recorder mechanical parts
8.1
~~
r!
,®
~
91
/ rv
REF.
PART NO.
DESCRIPTION
CODE
NO.
2 94A00280BCTAM Casselte GUide A
AC
3
94AOO380BCTAM Casselte GUld~ L
AC
4 94AOO480BCTAM Reel Ass'y
AF
5 94HOO5808CTAM B. T Spring
AA
6 94AOO680BCTAM
Brake Arm Ass'y
AE
7
94AOO780BCTAM Brake Arm 5prinq
AA
8
94A00880BCTAM Head Panel Ass'y
AK
9 94AOO980BCTAM Guide Roller A
AB
10
94A01080BCTAM Guide Roller B
AB
11
94AOl180BCTAM Guide Coller
AA
12
94A01280BCTAM
Head Panf~1 Spr ing
AA
13
94ROl380BCTAM
Pinch Aotler Arm Ass'y
AO
'14 94AOl480BCTAM Drive Unit Ass'y
BB
15 94A01580BCTAM Flywheel Capstan
AP
~ J \111 ~
.A-®
16
94AOl680BCTAM
Flywheel Metal
AH
17
94A01780BCTAM
Thrust Pressure Spring
AA
18
94R01880BCTAM
Thrust Pressure
AA
19
94A019BOBCTRM
F.L DamPf!f
AC
20
94A02080BCTRM
F L Hold Plate
AD
21 94A02180BCTAM Panel Plunger Call Ass' y
AW
22
94R022BOBCTAM
Plunger
AG
23
94A02380BCTAM
Plunger Shaft III
AB
24
94A02480BCTRM Plunger Lever Ass'y
AC
25 94A02580BCTAM Brake Plunger Coil Ass'y
AW
1
26 94A026808CTRM RC Lever
AC
27
94A02780BCTAM
Brake Pin
AB
28 94A02880BCTAM Main Motor Ass'y
AV
25
29 94A02980BCTAM
Motor Pulley-
AC
30
94R030BOBCTAM Main Belt
AE
31 94A03180BCTRM P.C B. Ass'y AX
37 94A06480KCTAM MOlor
AV
38
94A06180KCTAM EraSt! Head
AG
39
94A06080KCTAM
RIP Head
AM
11
. 1
1
71
94A0718PBCTAM Nylon Washer 2.5 x 7 x 0.5
AA
72
94A07280BCTAM Nylon Washer 2.5 x 6 x 0.5
AA I
73
94A07380BCTAM Nylon Washer 1.6 x 3.8 x 0.5
AA
74
LSTPF
2015PAZZ Spring Ass'y
AD
