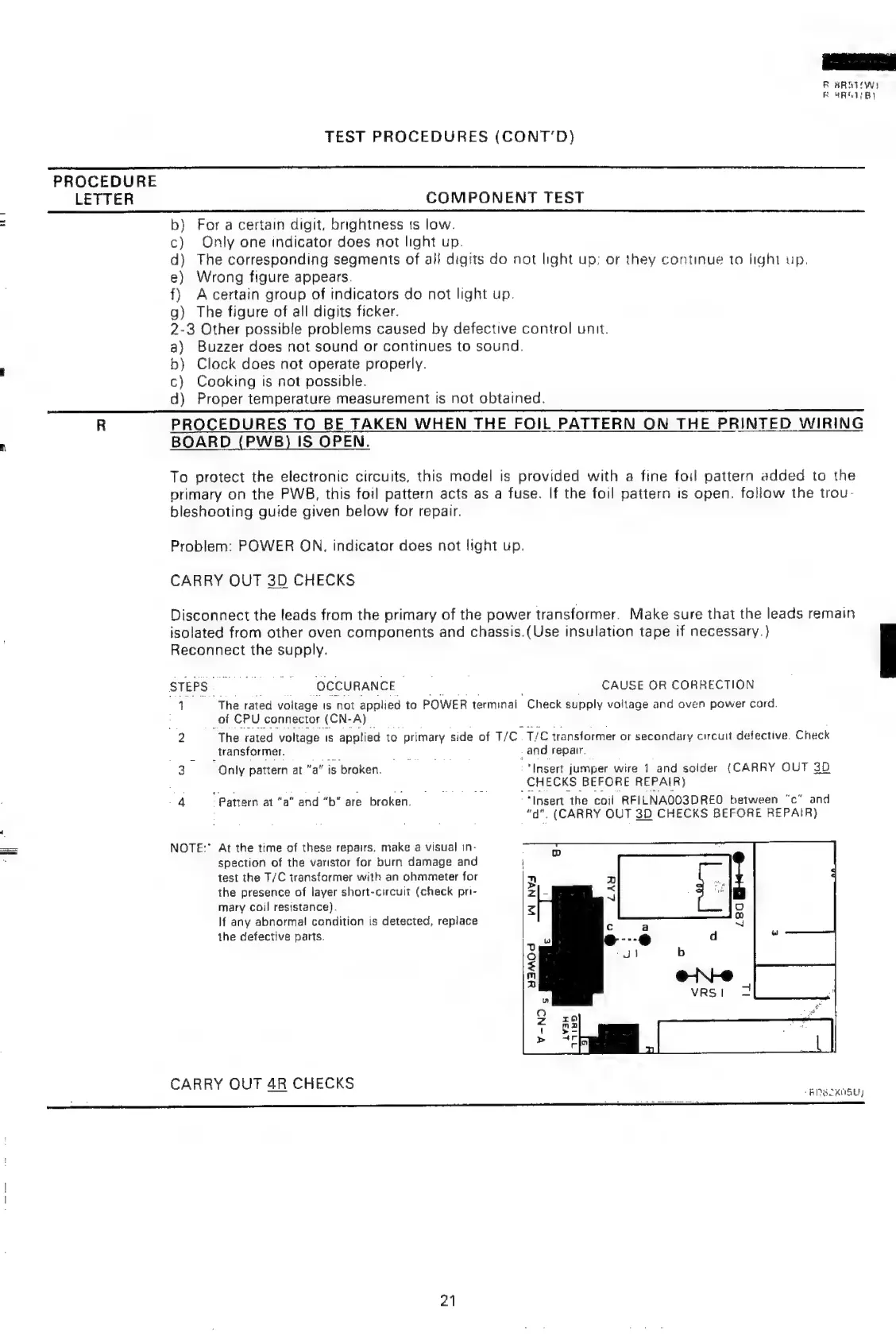

TEST
PROCEDURES
(CONT‘D)
PROCEDURE
LETTER
COMPONENT
TEST
b)
For
a
certain
digit,
brightness
ts
low.
c)
Only
one
indicator
does
not
light
up.
d)}
The
corresponding
segments
of
all
digits
do
nat
light
up;
or
they
continue
to
hight
up.
e)
Wrong
figure
appears.
f}
Acertain
group
of
tndicators
do
not
light
up.
g)
The
figure
of
all
digits
ficker.
2-3
Other
possible
problems
caused
by
defective
control
unit.
a)
Buzzer
does
not
sound
or
continues
to
sound.
b}
Clock
does
not
operate
properly.
c}
Cooking
is
not
possible.
d)
Proper
temperature
measurement
is
not
obtained.
R
PROCEDURES
TO
BE
TAKEN
WHEN
THE
FOIL
PATTERN
ON
THE
PRINTED
WIRING
BOARD
(PWB)
IS
OPEN.
To
protect
the
electronic
circuits,
this
model
is
provided
with
a
fine
foil
pattern
added
to
the
primary
on
the
PWB,
this
foil
pattern
acts
as
a
fuse.
If
the
foil
pattern
is
open.
foliaw
the
trou-
bleshooting
guide
given
below
for
repair.
Problem:
POWER
ON,
indicator
does
not
light
up.
CARRY
OUT
3D
CHECKS
Disconnect
the
leads
from
the
primary
of
the
power
transformer.
Make
sure
that
the
leads
remain
isolated
from
other
oven
components
and
chassis.(Use
insulation
tape
If
necessary.)
Reconnect
the
supply.
STEPS.
==
——
OCCURANCE
.
CAUSE
OR
CORRECTION
1
The
rated
voltage
ts
not
applied
to
POWER
terminal
Check
supply
voltage
and
oven
power
cord.
7,
of
CPU
connector
(CN-A)
ee
ae
2
The
rated
voltage
ts
applied
to
primary
side
of
T/C.
T/C
transformer
or
secondary
circuit
defective.
Check
_
transformer,
Roan
oot
and
repar,
.
3
Only
pattern
at
“a”
is
broken.
:
"Insert
jumper
wire
1
and
solder
{CARRY
OUT
3D
ee.
uke
=
Bae
:
y-
ia
ase
&
oe
_CHECKS
BEFORE
REPAIR)
4
Pattern
at
“a”
and
“b”
are
broken.
"Insert
the
coil
RFILNAOO3DREO
between
“c”
and
“d".
(CARRY
OUT
30
CHECKS
BEFORE
REPAIR)
NOTE:*
At
the
time
of
these
repairs,
make
a
visual
in-
spection
of
the
varistor
for
burn
damage
and
test
the
T/C
transformer
with
an
ohmmeter
for
the
presence
of
layer
short-circuit
(check
pri-
mary
coil
resistance).
If
any
abnormal
condition
is
detected,
replace
the
defective
parts.
W
Nv
e
y3aMOd
1¥4H
CARRY
OUT
4R
CHECKS
BDSG
CAUSUY
