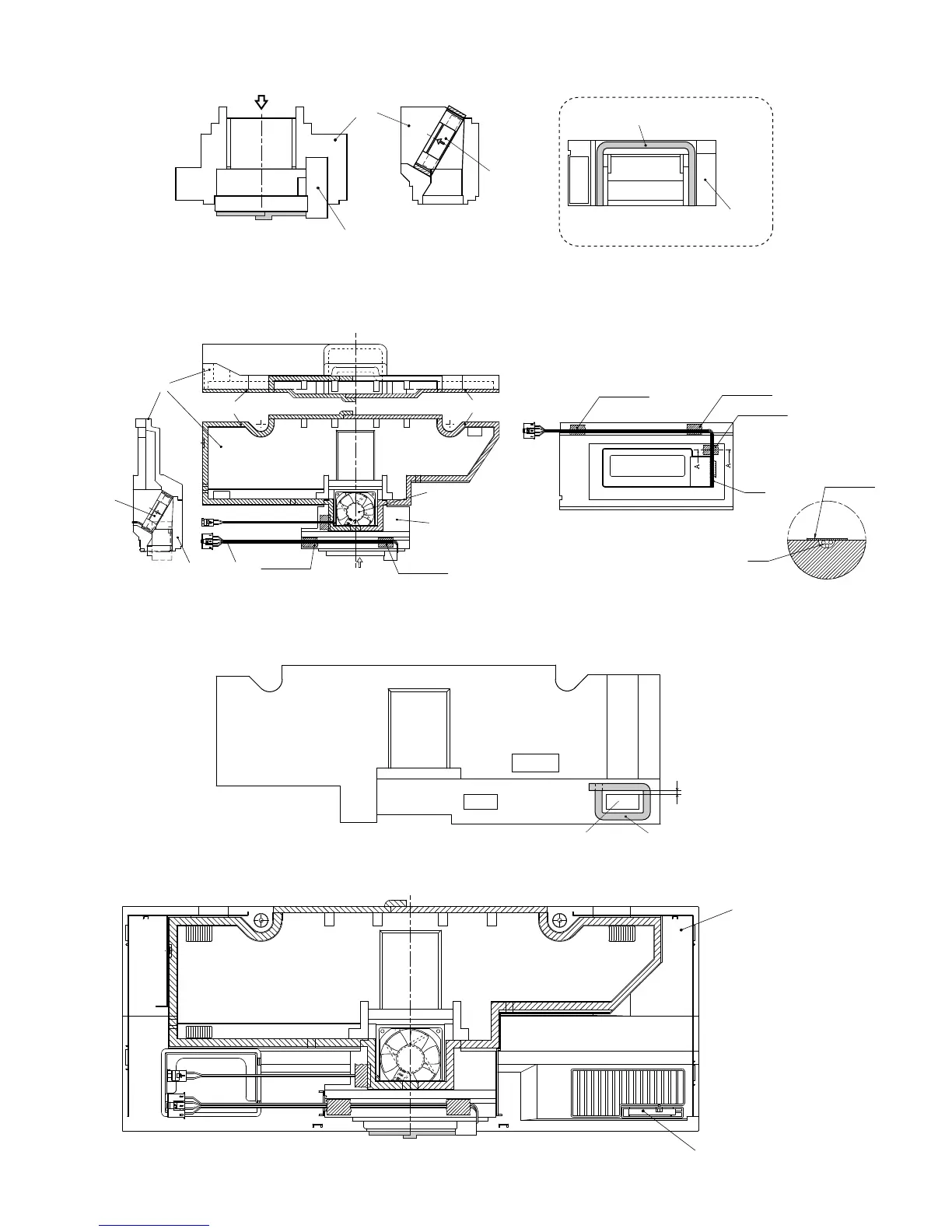

4. Insert R fan motor and damper ass’y to R air guider b, and Stick A-sealer rc-f to R air guider b.
5. Assemble R air guider b to R air guider a. Wire-harness are fixed with kraft tapes. Stick A-sealer rc-c to R air guider a/b (lead wire shall surely
insert slot of R air guider).
6. Stick A-sealer rc-g to R air guider a.
7. Insert Deodorizer to R-C box cover. Assemble these sets and R-C box cover.
Damper ass’y
R air guider b
R fan motor
View from A
>PS<
A-sealer rc-f
R air guider b
View from A
R fan motor
R air guider b
Lead rc box
Kraft tape
20*30
R air guider a
A-sealer rc-c
A-sealer rc-c
Kraft tape
20*30
Kraft tape
20*30
Kraft tape
20*30
Slot
View from b
Kraft tape
Section A-A
Wire
Kraft tape
20*30
View from b
R fan motor
R air guider b
(Unit : mm)
HOLE
All around
0~2
A-sealer rc-g
>PS<
[Front side]
R-C box cover
Deodorizer
