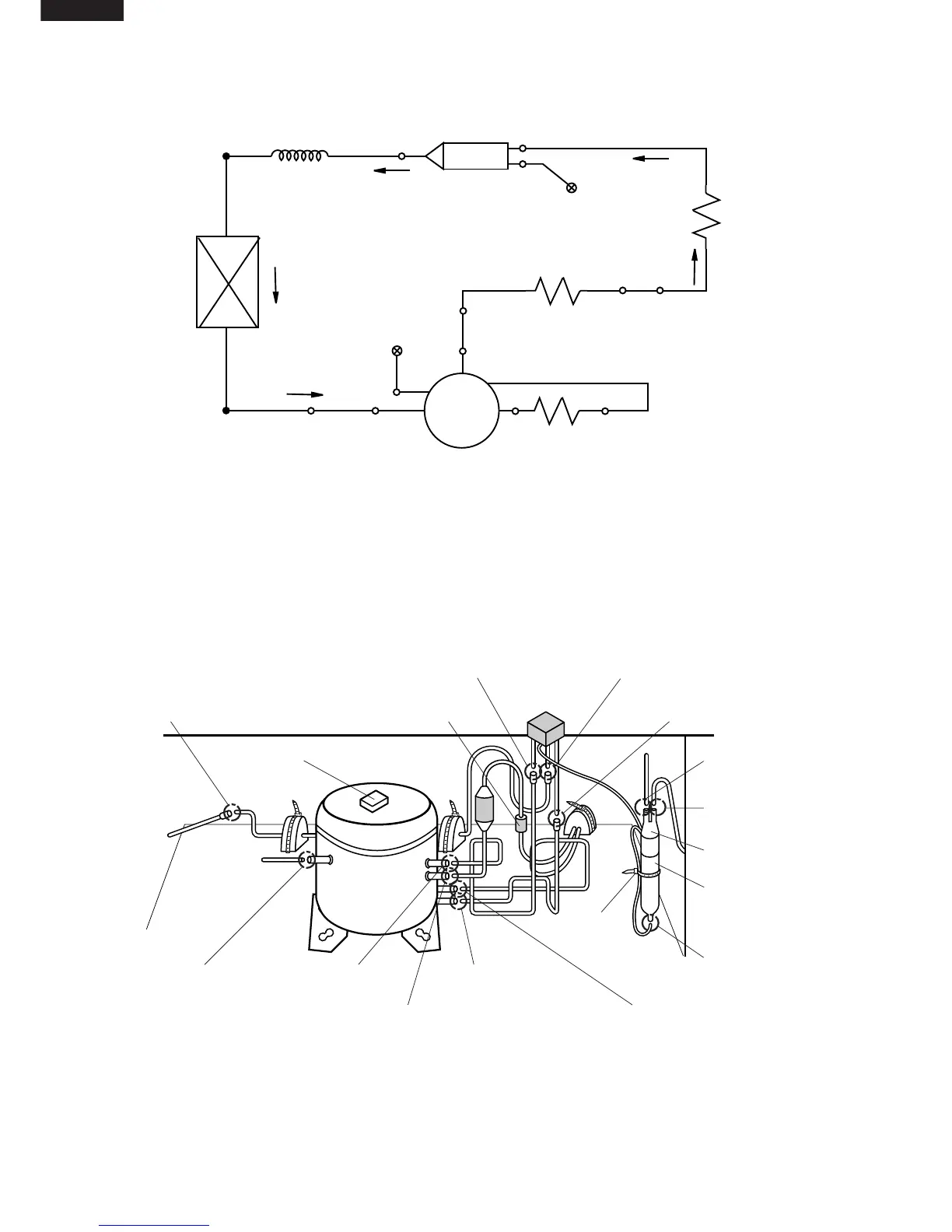

Figure C-3. Location
Figure C-2. Location
Compressor
Suction pipe
Charge pipe
Charge pipe
Capillary tube
Dryer
Hot pipe
S.P. connector
Sub. condenser
Back condenser
Backcon connector
Evaporator
Oil cooler pipe
Charge pipe to
Dryer
Hot pipe to
Dryer
Dryer
Dryer support
L-band C
Compressor oil cooler to
Oil cooler pipe
Backcon connector to
Hot pipe
S.P Connector
Compressor suction tube
Charge pipe to
Compresser
Compresser discharge pipe to
Sub condenser ass'y
Sub condenser ass'y to
Compresser oil cooler
S.P connector to
Suction pipe ass'y
Capillary tube to
Dryer
Oil cooler pipe to
Back condenser
Compressor butyl
Back condenser to
Backcon connector
Absorbent rubber A
