43
PRECISION MACHINE TOOLS Ver 2 Maintenance Manual
5-2 Spindle Oil Cooling Unit
a) Add the correct type of oil according to the instructions presented on the plaque.
b) The air filter of the cooling unit should be kept clean. It can be taken out for cleaning.
c) The cooling unit also has a oil filter, which has to be cleaned routinely.

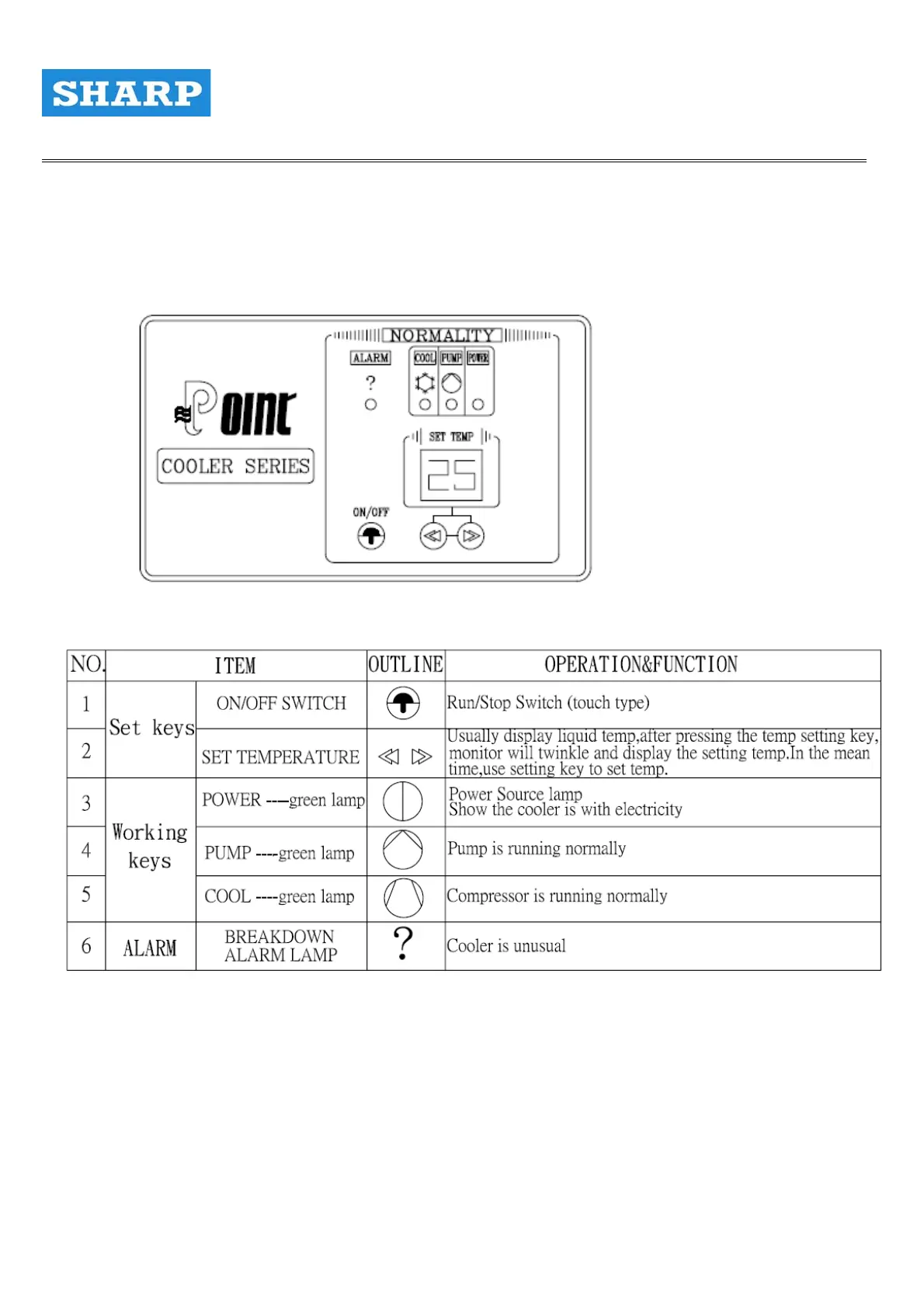

Names and operation of functions on the small panel
