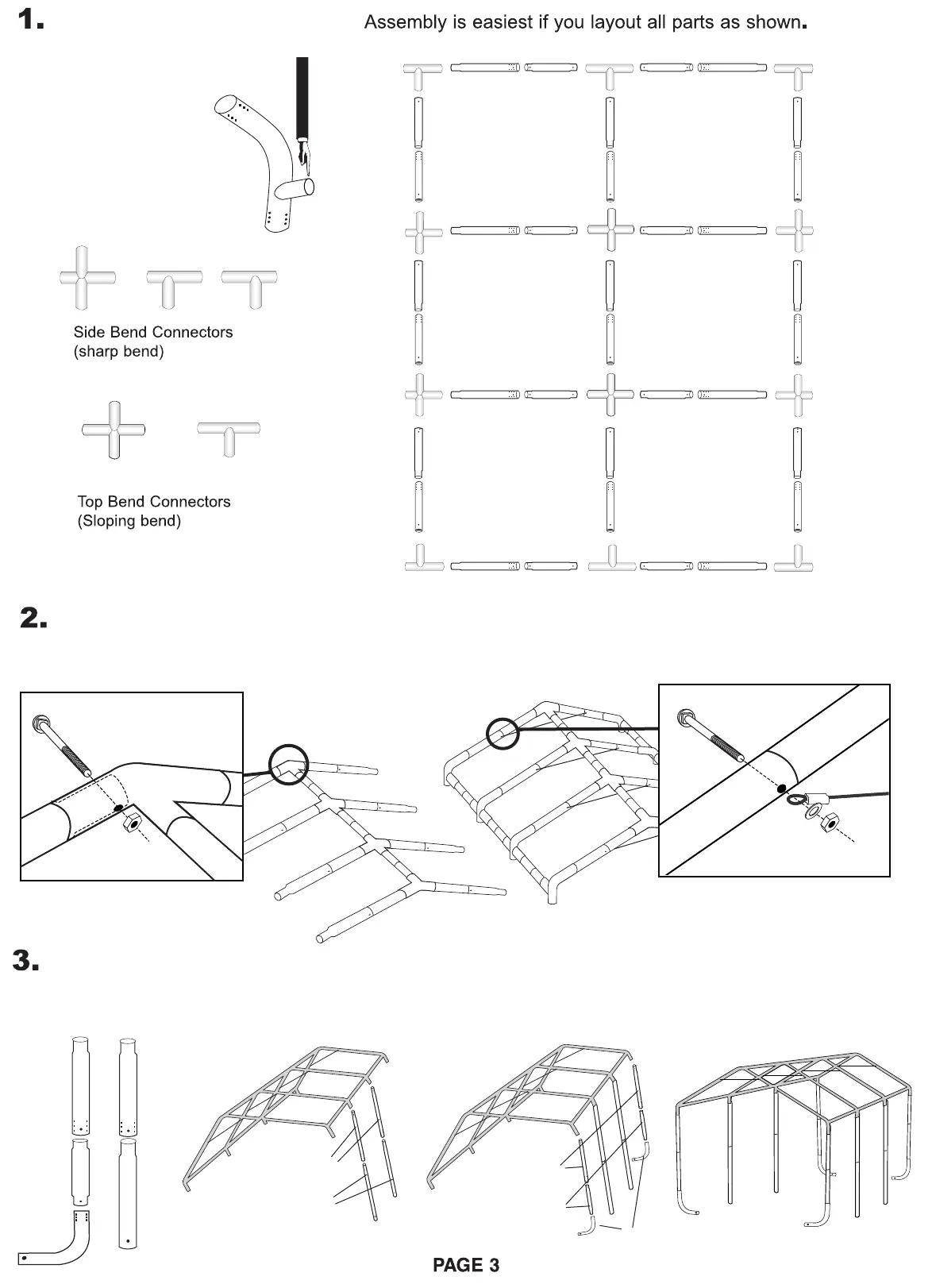

assembly together as shown in Fig. 1A. Assemble each side of the roof as shown in Fig. 2. Note: Bolts are not

required for these connections. Install #12178 truss brace roof cables as shown in Fig. 2A.

Start with center, Fig. 1, using layout shown in diagram above. Bolt roof

Assemble corner leg poles as shown in Fig. 3 and set aside. Assemble

middle leg poles as shown in Fig. 4. Insert middle leg pole assembly as shown in Fig. 5, then the corner leg

assembly as shown in Fig. 6. Repeat step 3 at opposite side. Note: No bolts are required for these connections.

13347

13341

13309

13347

13346

13347

13346

13347

13341

13309

Note:

When Installed the welded socket

for the cross rail must be below the

bend

Layout Roof Parts

Assemble Roof

Attach Uprights

13305

Fig. 3

Fig. 4

Fig. 5 Fig. 6

Fig. 7

Fig. 1

Fig. 2

Note: Install all carriage bolts

with nut toward center of frame.

Fig. 1A

Fig. 2A
