Anchors must be placed
inside of shelter.
Be sure to thread cable
through the hole in the
corner leg bend, through
the eye of the anchor, and
secure with clamp.
Fig. 8
Fig. 9

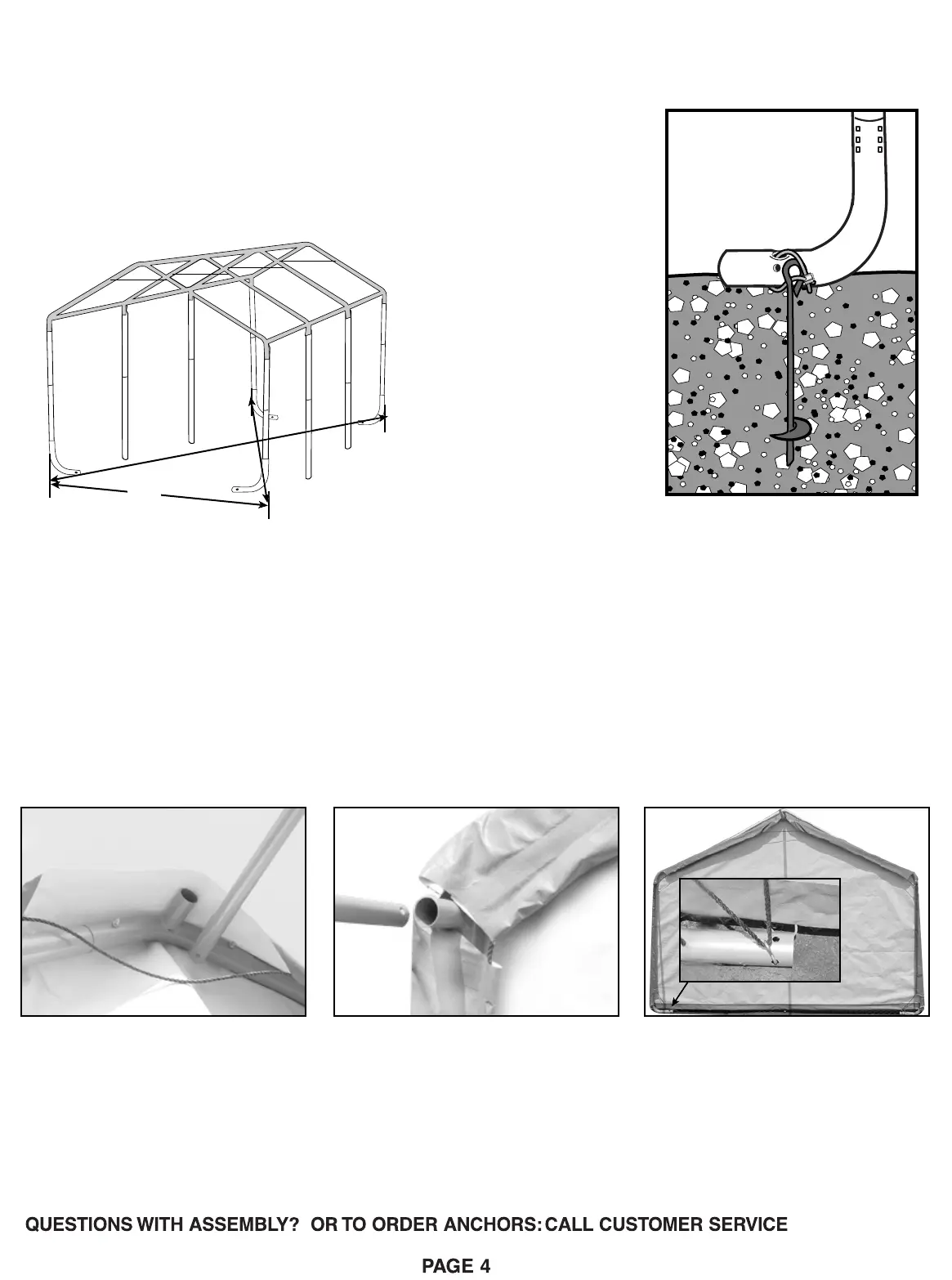

4. Anchor Shelter
Place the frame in its final position and check that it measures 12'
in width and is square across opposite corners. See Fig. 8 below.
Screw the (4) 15" temporary augers into the earth at the four
corners. Secure with cable and clamp as shown in Fig. 9.
Attention: 15" augers are for temporary use only! We recommend
32" augers, 6-8 minimum for use in a permanent installation.
5. Install Door & Back Panel
Starting from the peak, remove the cross pole from the 3-way top connector. Place exposed rope at the top of
the panel over the 3-way connector and under the cross pole as shown in Fig. 10. Replace the cross pole. At
each corner, remove the cross pole and fold the fabric around to the inside placing the 3-way socket through
the opening in the fabric as shown in Fig. 11. Tighten the panel by inserting 'S' hooks into the holes in the corner
legs, pulling and tying off as shown in Fig. 12. Repeat step 5 for 2 zipper door.
12'
Fig. 10 Fig. 11
Fig. 12
