middle leg
clamps
corner leg
clamps
Fig. 13
Fig. 14
Fig. 15
10115
10115
1011
1010
13202
13201
1011
1010
Fig. 16

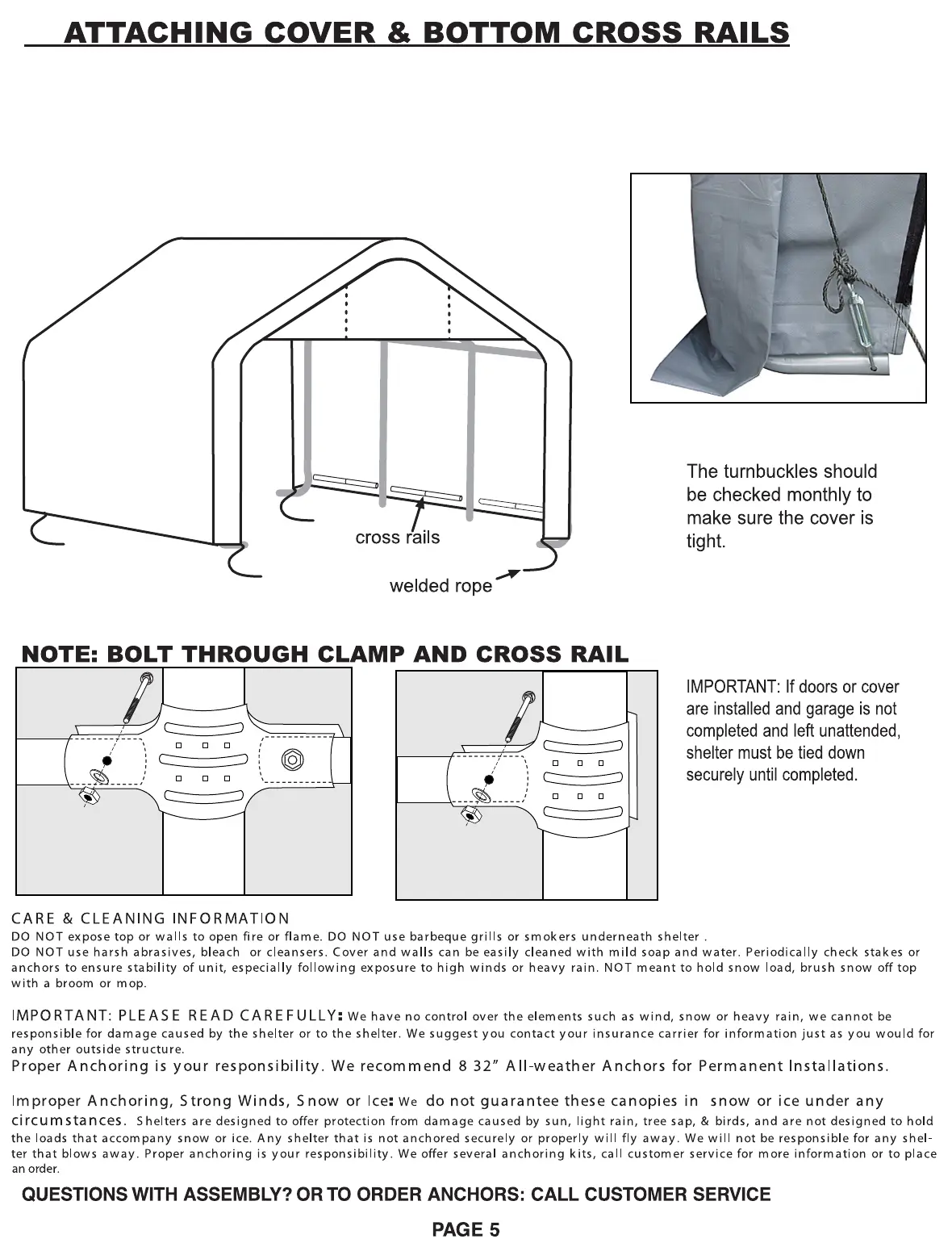

Pull cover over frame. The welded-in ropes should be at the front and back corners of the garage. Note: The pocket at the
base, running along the sides of the cover, should be on the inside. Loosen the (4) turnbuckles and tie the ropes loosely to
each one. Insert turnbuckles into holes at each corner leg as shown in Fig. 14.
Assemble cross-rail poles as shown in Fig. 13. Slide assembled poles through fabric pockets at each leg and secure with half
clamps as shown in Fig. 15 (middle legs) and Fig. 16 (corner legs). Note: Push down on cross rails to tighten cover before
tightening bolts completely. Tighten turnbuckles to make final adjustments to cover.
6.
Outside Corner View
