Peripheral devices
INVERTER INTRODUCTION 17

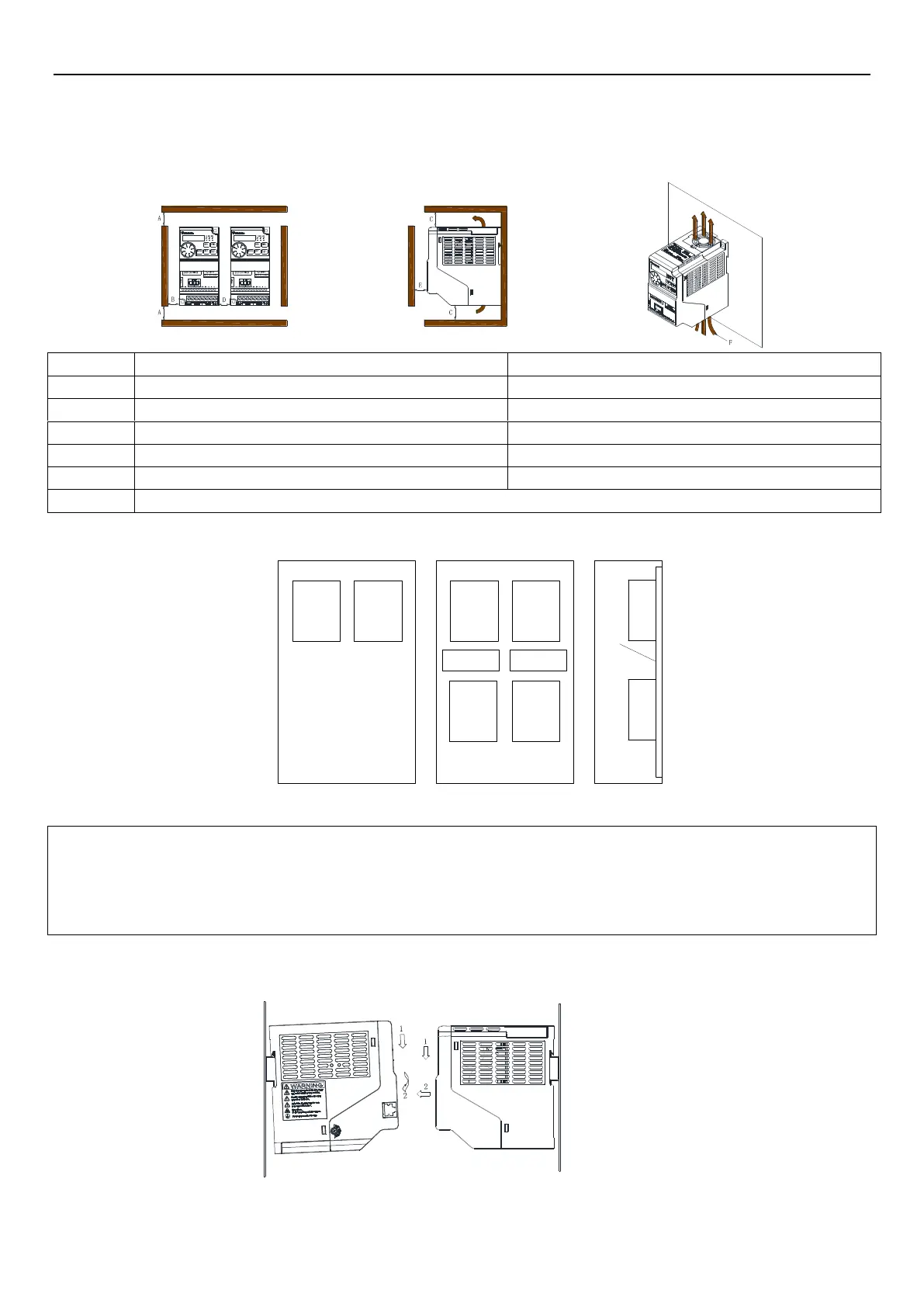

Please comply with installation conditions shown below to ensure enough ventilation space and
wiring space for inverter cooling:
Arrangement of single or paralleling inverter:
Arrangement of multiple inverters:
Guide
Enclosure
Guide
Inverter
Inverter Inverter Inverter
Inverter
Inverter
Enclosure
Guide
(a) Horizontal arrangement (b) Vertical arrangement
Installation of DIN rail：
(a) Installation (b) Disassembly
Note1. When mounting inverters of different sizes in parallel, please align the clearance above each inverter to install,
which is easy to change the cooling fan
2. When it is inevitable to arrange inverters vertically to minimize space，take such measures as to provide guides
since heat from the bottom inverters can increase the temperatures in the top inverters, causing inverter failures.
