5.2 Protective Screen
Mobile DaRt Operation Manual
5-5
5.2 Protective Screen
Use of the Protective Screen will reduce exposure to radiation.
The specifications of this protective unit are shown in Table 5-2.
Table 5-2 Specifications of the folding-type protective screen
Type Spigot type
Lead contained acrylic Lead equivalent at least 0.3mm led or more
Dimensions (using state) 38cm (Vertical)×46cm (horizontal)×0.85cm (thick)
Weight 2.2kg
NOTE
If the protective screen is dropped, it may be damaged. Be sure to
handle this screen carefully at all times.
Before X-ray operation, put Protective Screen into Rail on Arm lock joint section.
NOTE
Do not set Protective Screen on the Support stand while operating. If
the Protective Screen is set ,Tube Arm hits the Protective Screen.
Protective Screen can be stored in the bin while operating the Support
stand.
Protective Screen
Rail

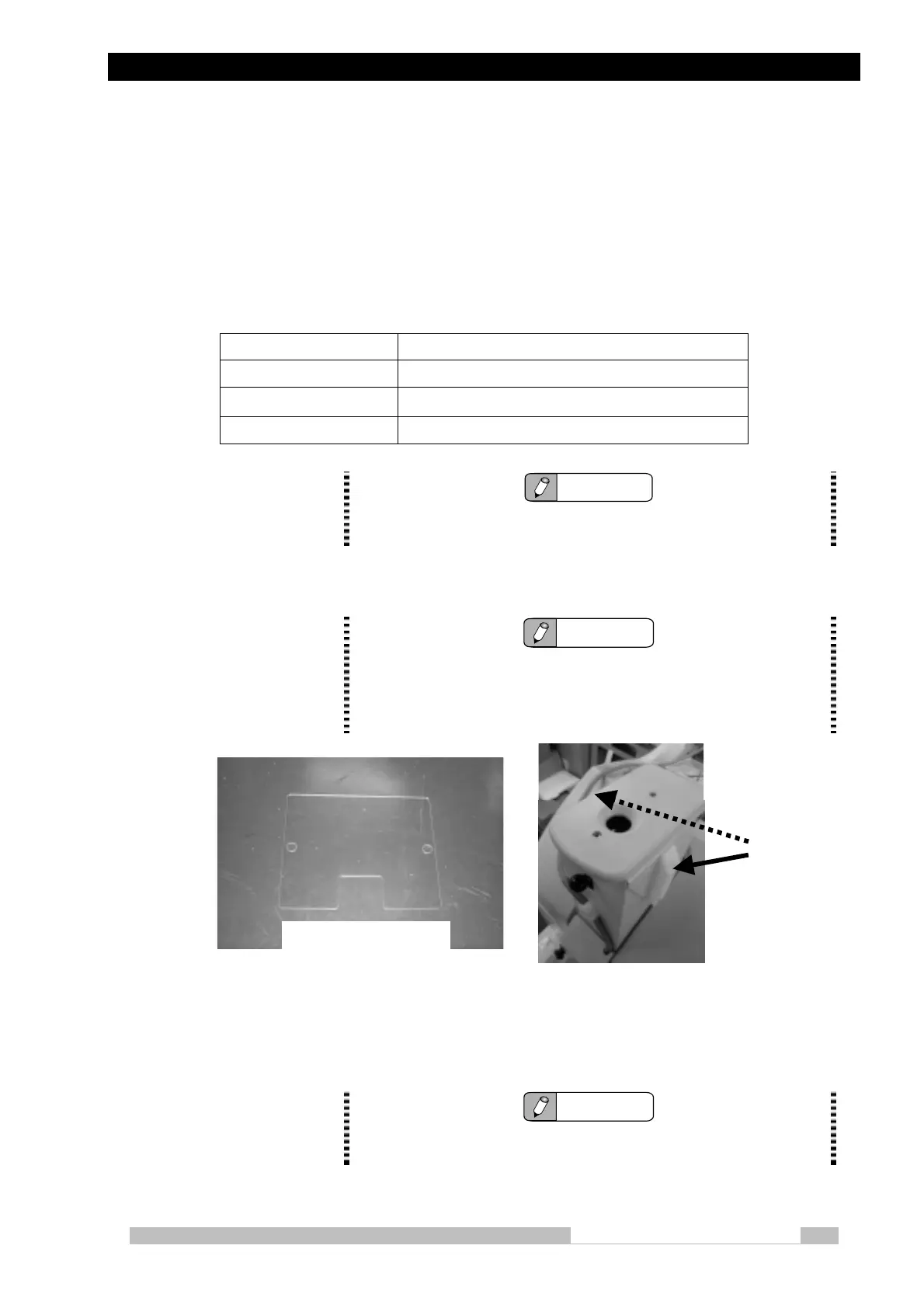

Fig. 5-4 Protective screen option
After X-ray operation, take Protective Screen off Rail on Arm lock joint section.
NOTE
Do not set Protective Screen while driving the system.
Protective Screen can be stored in the bin while driving the system.
