3.10 Main Circuit Breaker and Additional Protective Electrical Earthing Wire
Mobile DaRt Operation Manual
3-15
3.10 Main Circuit Breaker and Additional Protective
Electrical Earthing Wire

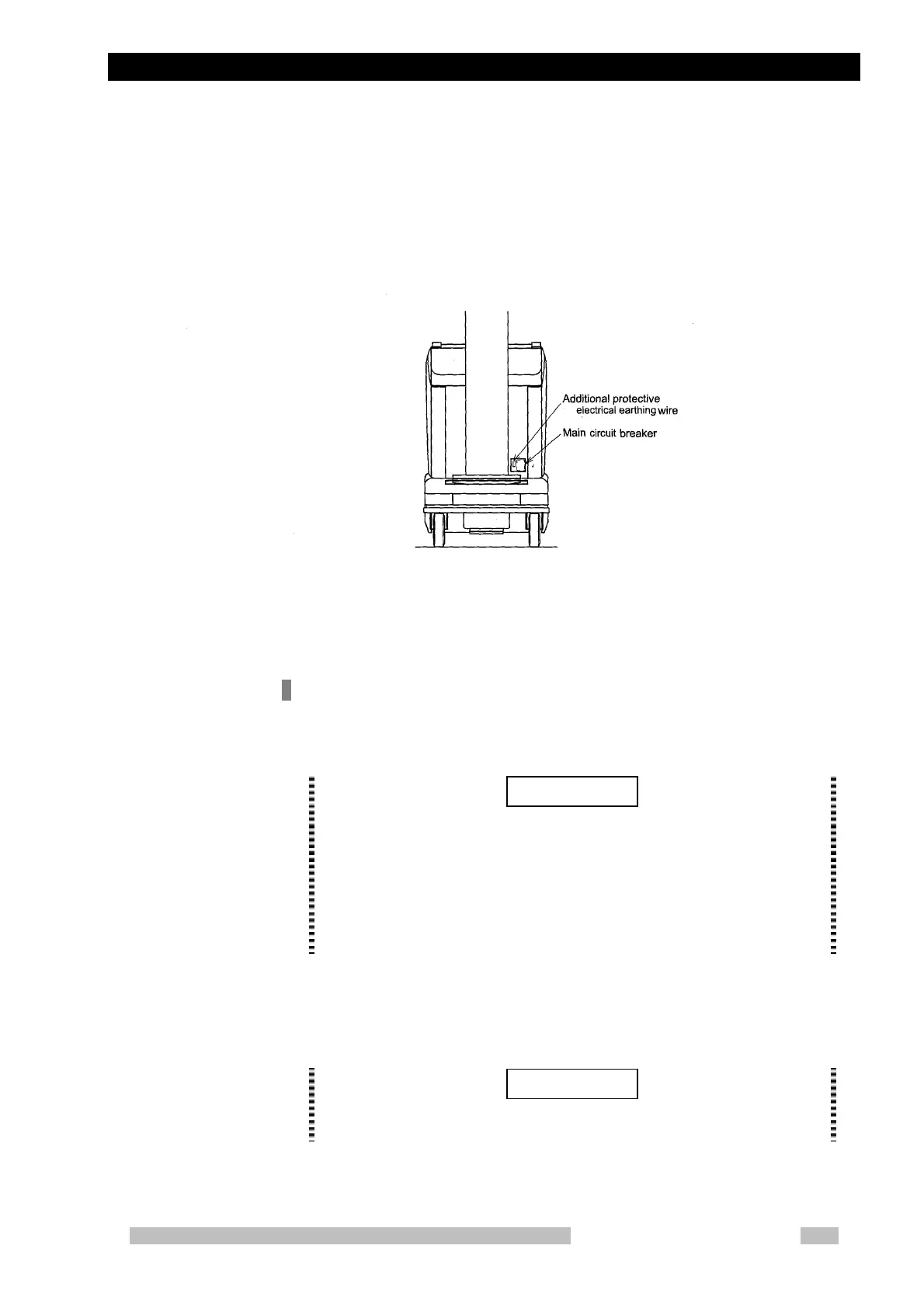

Fig. 3-11 Main Circuit Breaker and Additional Protective Electrical Earthing Wire
Main Circuit Breaker
The main circuit breaker switches on/off the connection between the battery and
the internal circuits.
The system can not be used when the main circuit breaker is turned “OFF”.
When the power plug is connected to an power outlet, the error message
F5c will appear the X-ray control panel. Power is supplied to the system, but
the battery can not be charged because it is not connected to power.
When error F5c appeared, the power plug disconnect to an power outlet.
And the main circuit breaker is turned “ON”, thereafter the power plug is
connected to an power outlet.
Keep turning “ON” the main circuit breaker in normal use.
It is unnecessary to access to the main circuit breaker in normal use.
Keep turning “OFF” the main circuit breaker only when not using the system
for a long period of time or when transporting.
If an over-current flows from the battery, the main circuit breaker detects the
over-current and automatically turns “OFF”.
