Shinerich SRPHN02 - Main Body Assembly; Lower Post and Base Assembly; Mid Post Connection

6
ASSEMBLY
NOTE: Assembly of this heater requires
basic mechanical skills. Proper assembly
is the responsibility of the installer.
Step 1
Turn the mid post clockwise to the
Step 2
Step 1 ----
Assembly for lower post
Step 2 ----
Attach mid post to lower post
6
6
7
9
11
10
8
5

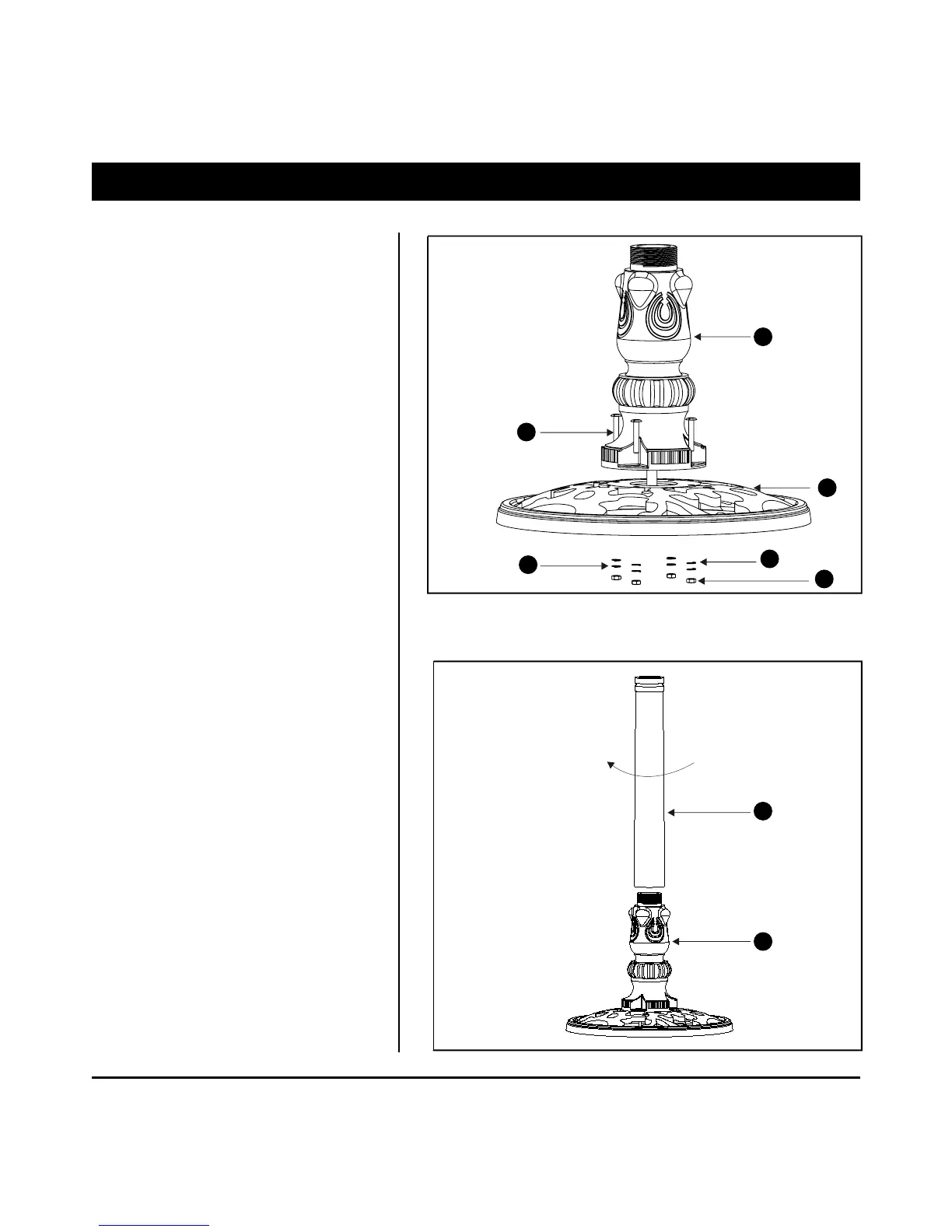

Attach lower post to base
Place the lower post on the top of
base.Then connect them
using 4pcs M8*55 bolts,4pcs 8mm
washers,4pcs 8mm spring washers
and 4pcs M8 nuts
Lower post as illustrated until tighten
them securely.
