177(202)
1) Install drying hopper on the machine frame.
2) Fix the shut-off valve adaptor on the suction box.
3) Install the shut-off valve on the suction box.

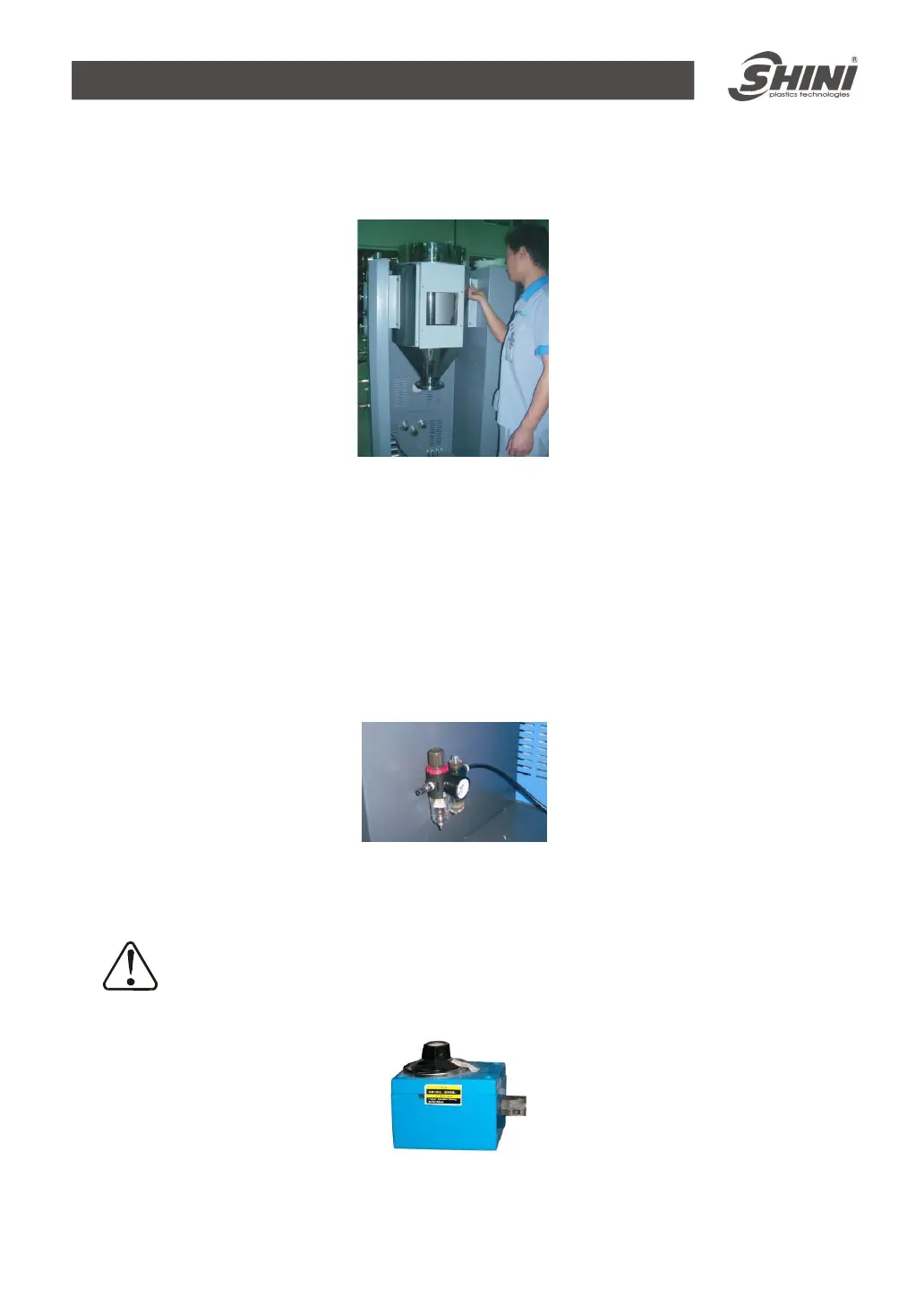

Picture 3-9：Installation of Drying Hopper
3.4.5 Installation of Compressed-air Filter & Regulator
1) Tighten two fixing screws.
2) Connect the compressed-air tube.
3) Adjust the pressure of compressed-air to 4~5bar.
4) High pressure air is directly linked to the air inlet of the compressed-air filter
and regulator.
Picture 3-10：Installation of Compressed-air Filter & Regulator
3.4.6 EGO
The EGO value has been setting before out factory, Don't modify it.
Picture 3-11：EGO
