3 Product presentation.
3.1 Product scope.
The product you purchased is a
centrifugal pool pump designed to pump
fresh and salt water.

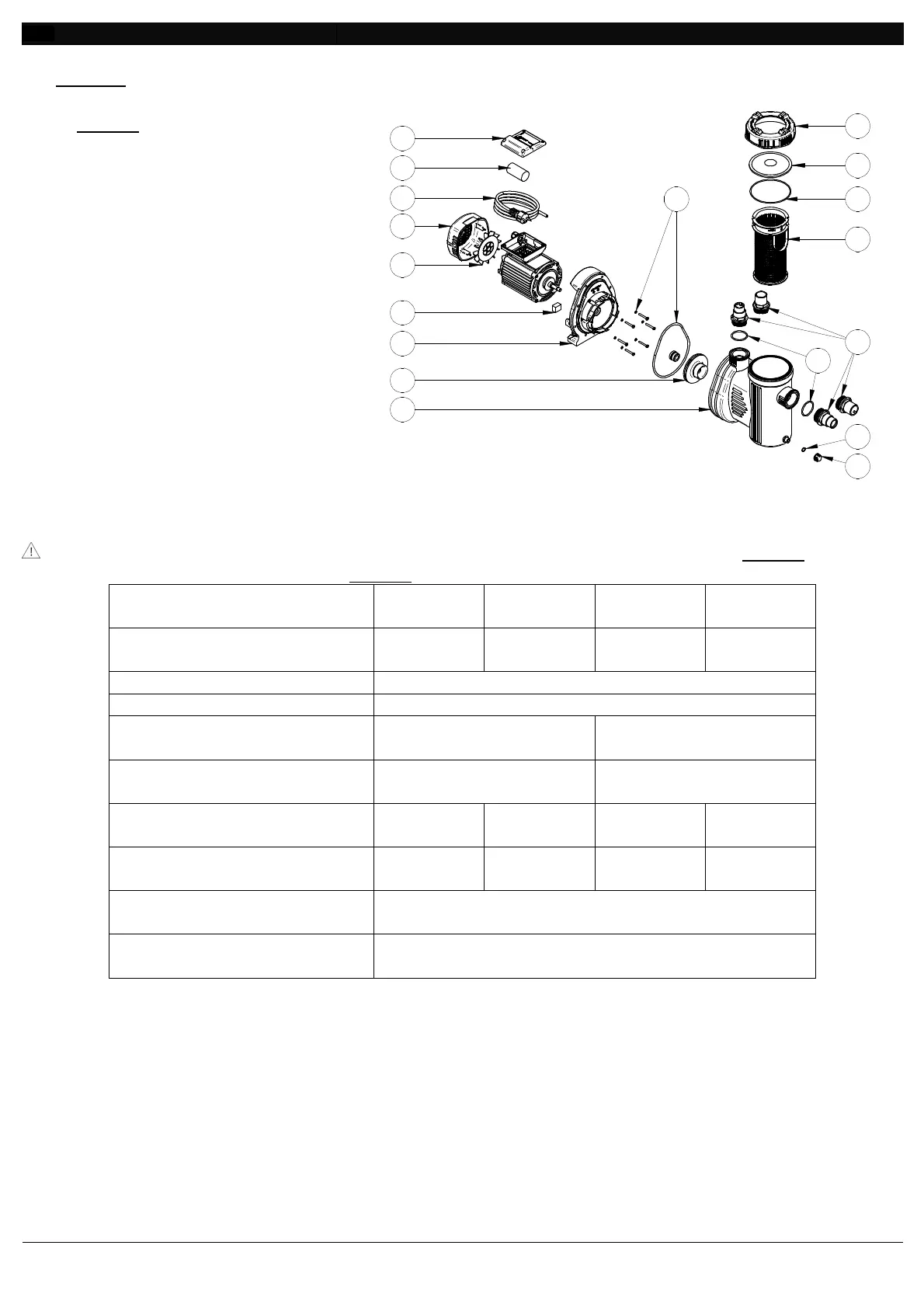

3.2 Composition.
1. Hosetail
2. O-ring
3. Draining tap
4. Frame
5. Lock nut
6. Cover
7. Prefilter
8. Impeller
9. Rubber
10. Flange
11. Fan
12. Carter
13. Power cord
14. Capacitor
15. Cover
4 Technical specifications and features.
The hydraulic parts used for the building of the system which shall include the product modify the
performance (head and flowrate) of the product.
WP14000
WP14000-T
WP16000
WP16000-T
WP19000
WP19000-T
WP21000
WP21000-T
Power
[kW]/[hp
0.370/0.496 0.450/0.603 0.550/0.738 0.750/1.006
Standard voltage 220-240[V]~50[Hz]
Protection grade at water input IPX5
Inlet
[mm]
Ø 32 – Ø 38 Ø 38
Outlet
[mm]
Ø 32 – Ø 38 Ø 38
Max flowrate
[m
3
/h]/[gpm]
9.00/1980 10.98/2415 13.98/3075 16.98/3735
Max head
[m]/[ft]
10.00/32.80 10.80/35.43 12.00/39.37 13.00/42.65
Max water temperature
35 [°C]
95 [°F]
Minimum water temperature
4 [°C]
39 [°F]
Tab. 5
Fig. 42
1
2
22
3
2
4
5
6
7
8
9
10
11
12
13
14
15
