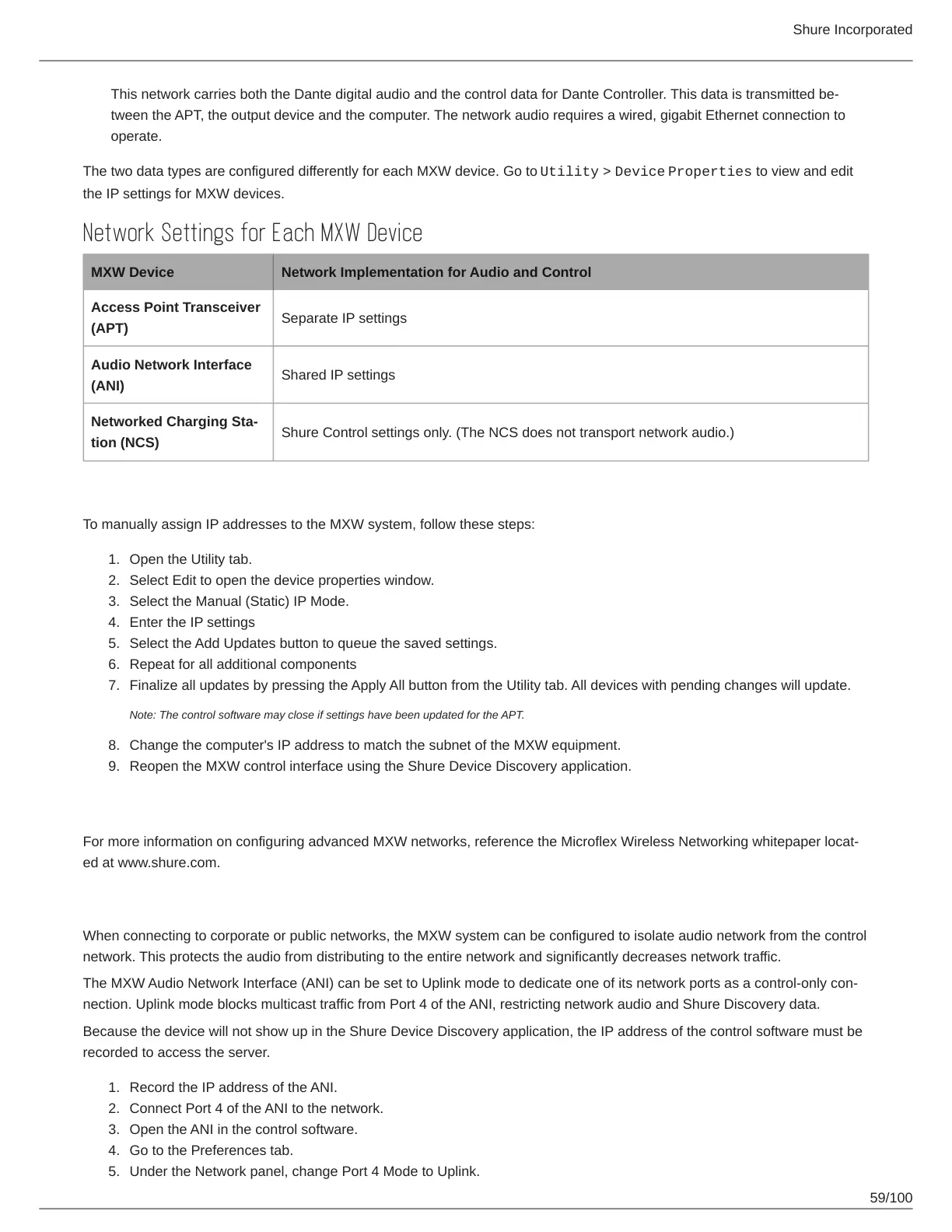

ThisnetworkcarriesboththeDantedigitalaudioandthecontroldataforDanteController.Thisdataistransmittedbe
tween the APT, the output device and the computer. The network audio requires a wired, gigabit Ethernet connection to
operate.
The two data types are configured differently for each MXW device. Go to Utility > Device Properties to view and edit
the IP settings for MXW devices.
Network Settings for Each MXW Device
MXW Device Network Implementation for Audio and Control
Access Point Transceiver
(APT)
Separate IP settings
Audio Network Interface
(ANI)
Shared IP settings
Networked Charging Sta
tion (NCS)
Shure Control settings only. (The NCS does not transport network audio.)
Manually Assigning Static IP Address
To manually assign IP addresses to the MXW system, follow these steps:
Open the Utility tab.
Select Edit to open the device properties window.
Select the Manual (Static) IP Mode.
Enter the IP settings
Select the Add Updates button to queue the saved settings.
Repeat for all additional components
Finalize all updates by pressing the Apply All button from the Utility tab. All devices with pending changes will update.
Note: The control software may close if settings have been updated for the APT.
Change the computer's IP address to match the subnet of the MXW equipment.
Reopen the MXW control interface using the Shure Device Discovery application.
Advanced Setup
FormoreinformationonconfiguringadvancedMXWnetworks,referencetheMicroflexWirelessNetworkingwhitepaperlocat
ed at www.shure.com.
Isolating Audio and Control Networks
When connecting to corporate or public networks, the MXW system can be configured to isolate audio network from the control
network. This protects the audio from distributing to the entire network and significantly decreases network traffic.
TheMXWAudioNetworkInterface(ANI)canbesettoUplinkmodetodedicateoneofitsnetworkportsasacontrolonlycon
nection. Uplink mode blocks multicast traffic from Port 4 of the ANI, restricting network audio and Shure Discovery data.
Because the device will not show up in the Shure Device Discovery application, the IP address of the control software must be
recorded to access the server.
Record the IP address of the ANI.
Connect Port 4 of the ANI to the network.
Open the ANI in the control software.
Go to the Preferences tab.
Under the Network panel, change Port 4 Mode to Uplink.
