PGA81
Type
Electret Condenser

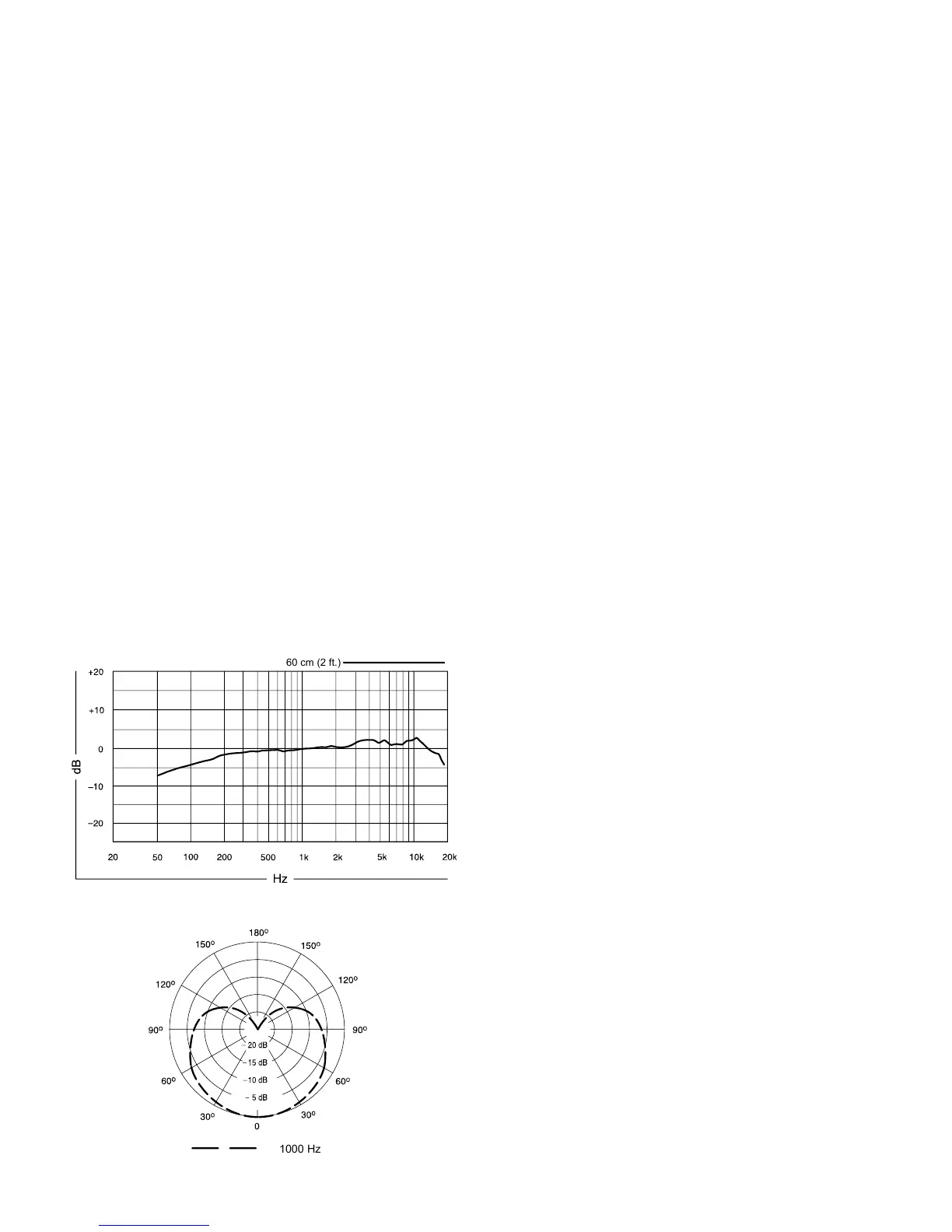

Polar Pattern
Cardioid
Frequency Response
40 to 18,000 Hz
Output Impedance
at 1 kHz, open circuit voltage
600 Ω
Sensitivity
at 1 kHz, open circuit voltage
-48.5 dBV/Pa[1] (3.8 mV)
Maximum SPL
1 kHz at 1% THD, 1 kΩ load, typical
129.5 dB SPL
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with
respect to pin 3
Connector
Three-pin professional audio (XLR), male
Weight
186 g (0.4 lbs)
Housing
Cast Zinc
Power Requirements
48 V DC phantom power (2.0 mA)
[1] 1 Pa=94 dB SPL
