3

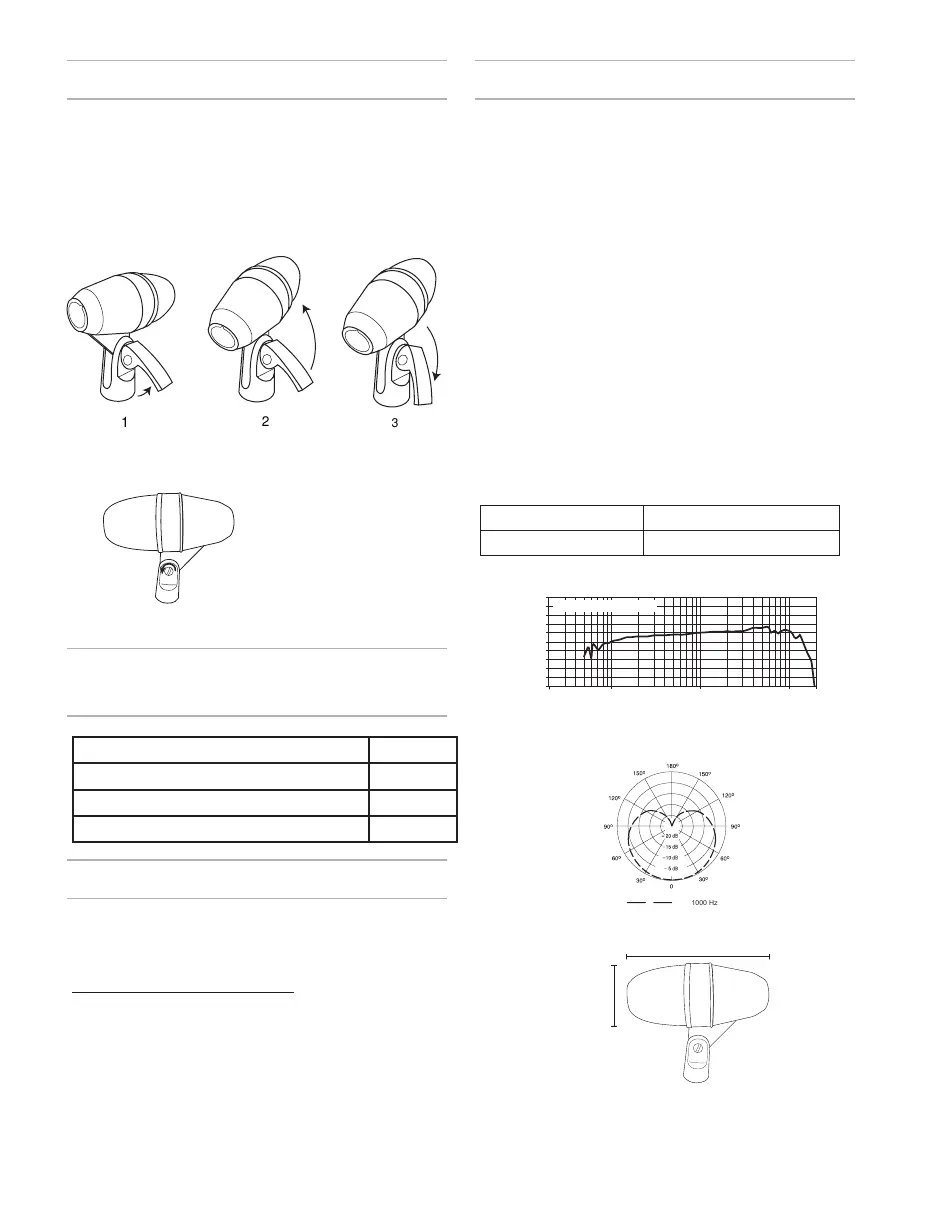

Using the Quick-Release Lever
This microphone features a quick-release lever to easily
adjust position.
1. Pull the lever open
2. Move the microphone into the desired position
3. Press the lever back towards the microphone to tighten
1
2
3
Note: To adjust the
tension on the lever,
pull it open and use a
flat head screwdriver
to tighten or loosen
the bolt on the
opposite side.
Specifications
Type
Dynamic (moving coil)
Frequency Response
50 to 15,000 Hz
Polar Pattern
Cardioid
Output Impedance
200Ω
Sensitivity
at 1 kHz, open circuit voltage
-57 dBV/Pa¹ (1.45 mV)
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2
with respect to pin 3
Weight
287 g (10.12oz.)
Connector
Three-pin professional audio (XLR), male
Environmental Conditions
Operating Temperature
-20° to 165°F (-29° to 74°C)
Relative Humidity
0 to 95%
1 Pa=94 dB SPL
20
15
10
5
0
-30
-25
-20
-15
-10
-5
dB
Hz
20 100 1k 10k 20k
0,6 m (2 ft.) from sound source
Typical Frequency Response
1000 Hz
Typical Polar Pattern
Certifications
This product meets the Essential Requirements of all relevant
European directives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from:
www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: 49-7262-92 49 0
Fax: 49-7262-92 49 11 4
Email: EMEAsupport@shure.de
Optional Accessories and
Replacement Parts
Microphone Drum Mount A50D
7.6 m (25 ft.) Cable (XLR-XLR) C25J
Grille RPMP56G
PGA56 Replacement Grille RPM152
93 mm (3.66 in.)
44.5 mm diameter
(1.75 in.)
Overall Dimensions
