The document is an assembly guide for the SHUTTLE MVP Elite Plus, a cardio-muscular conditioning equipment manufactured by Contemporary Design Company. This guide provides instructions for assembling the device, along with important notes regarding tools, parts, and warranty information.

Function Description:

The SHUTTLE MVP Elite Plus is a specialized piece of exercise equipment designed for cardio-muscular conditioning. It appears to be a low-impact, high-performance training system that utilizes a sliding carriage mechanism, elastic cords for resistance, and a kickplate for various exercises. The system includes a headrest and backrest extension pad, suggesting its use for a range of body positions and exercises, potentially including deep squats and other movements that target different muscle groups. The inclusion of "Towers" with a "Rope and Pulley System" indicates that it can also be used for exercises involving pulling or resistance from above, possibly for upper body or core training, or for specific rehabilitation protocols. The "Range of Motion (ROM) Control Rope" suggests that users can adjust the extent of movement, making it versatile for different fitness levels and therapeutic needs. The overall design points to a comprehensive system for strength, endurance, and flexibility training, suitable for both fitness and rehabilitation settings.

Important Technical Specifications:

While specific numerical technical specifications like dimensions, weight capacity, or resistance levels are not explicitly detailed in the provided pages, several structural and component specifications can be inferred:

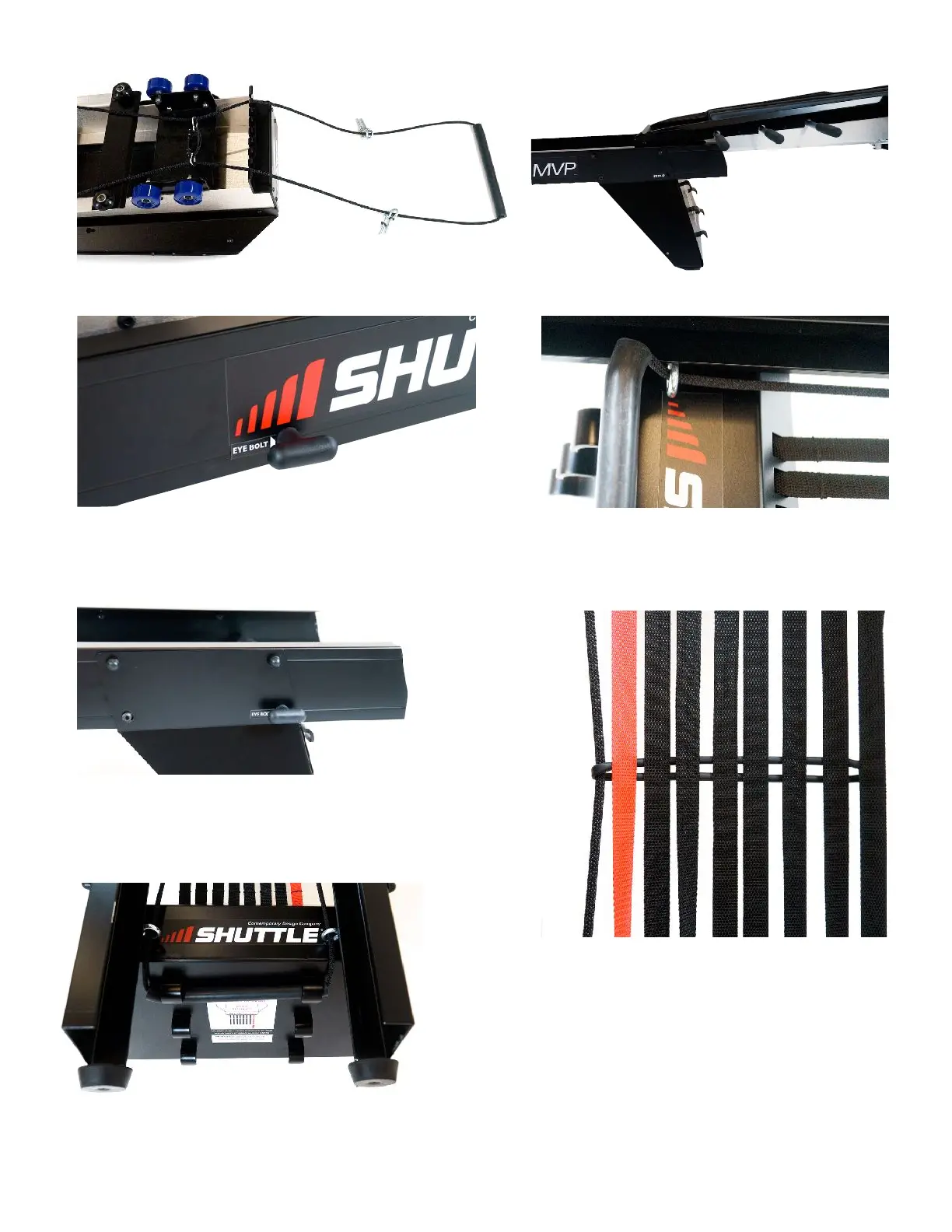

Rails: The system uses "Two 9 ft Rails" which form the main track for the carriage.
Resistance System: It employs "Elasticords" for resistance, which are connected to a "Lanyard Mounting Rod" and secured with "Steel/Rubber Bonded Washers" and "lock nuts." The guide mentions "Head-End Elasticords (lanyards)" and the ability to "engage the cords with the plastic T-Handles at the Foot-End" for increased resistance.
Carriage: The "Carriage" is the sliding component on which the user sits or lies. It features "30" Long Handlebars" for user grip and stability.
Kickplate Structure: The "Kickplate Structure" includes a "Kickplate Board" which is adjustable to "three different heights," allowing for varied foot positions and exercise angles.
Towers: The "Towers" are equipped with a "Rope and Pulley System" and a "PNF Pulley" for resistance exercises.
Assembly Hardware: The assembly primarily uses 5/16" and 3/8" bolts, lock nuts, and washers. Specific bolt types include "button head bolts" and "socket head cap bolts."
Tools Needed: The assembly requires a 7/16 inch, 1/2 inch, and 9/16 inch socket or combination wrench, and an Allen wrench (provided in Parts Bag).

Usage Features:

Adjustable Resistance: The "Elasticords" provide adjustable resistance. Users can increase resistance by engaging more cords using "plastic T-Handles at the Foot-End."
Adjustable Kickplate: The "Kickplate Board is adjustable to three different heights," allowing users to customize their foot placement for different exercises and to target specific muscle groups.
Versatile Body Positioning: The system supports various body positions, indicated by the "Head-End Stand," "Kickplate Structure (Foot-End)," and the ability to use the "Backrest Extension Pad" as an extension for deep squats or as a low-profile headrest.
Range of Motion Control: The "ROM Control Rope" and "T-Knobs" allow for adjustment of the range of motion, which is crucial for tailored workouts or rehabilitation.
Handlebars: "30" Long Handlebars" on the carriage provide stability and support during exercises.
Towers with Rope and Pulley System: The optional "Towers" expand the exercise possibilities, enabling pulling exercises and potentially PNF (Proprioceptive Neuromuscular Facilitation) techniques.
Noise Dampener: A "Noise Dampener" can be applied to the ROM Control Rope to reduce noise during operation.

Maintenance Features:

Elasticord Lubrication: The guide explicitly states, "LUBRICATE ELASTICS WITH SILICONE FREQUENTLY. Apply every 6 months, especially in overly sunny, dry and air-conditioned environments." Silicone Gel is provided for this purpose.
Elasticord Disengagement: To promote longer life for the elasticords, it is recommended to "Disengage the Elasticords after each use."
Parts Replacement: The manufacturer, SHUTTLE SYSTEMS, provides replacement parts directly. Users can contact them via phone or email for ordering.
Warranty: The product comes with a "5 YEAR LIMITED ORIGINAL EQUIPMENT WARRANTY." Specific components have different warranty periods:
- Limited Lifetime Warranty: Bolted metal frames, stands, towers, kickplate frame and board, and carriage frame.
- Five Years: Pulley systems, carriage handles, and wheels.
- Two Years: Upholstery, headrest, kickplate face, harnesses, & grips.
- One Year: Elasticords, rebound elastics, lock knobs, torque handles, and all other parts.
Proof of Purchase: Users are advised to "retain your dated sales receipt as proof of purchase to validate the warranty period."
Contact for Damage/Missing Parts: If "damaged or missing parts" are discovered upon receipt, users should contact Shuttle Systems support via email or phone, and take a photo of any shipping damage.
