Shuttle MVP Elite Plus - Assembling MVP Rails and Connector Plate

Page 5
STEP 1
ASSEMBLING THE MVP RAILS WITH THE CONNECTOR PLATE
ITEMS
REQUIRED"
MVP RAILS"
CONNECTOR
PLATE#
#
PARTS BAG #1

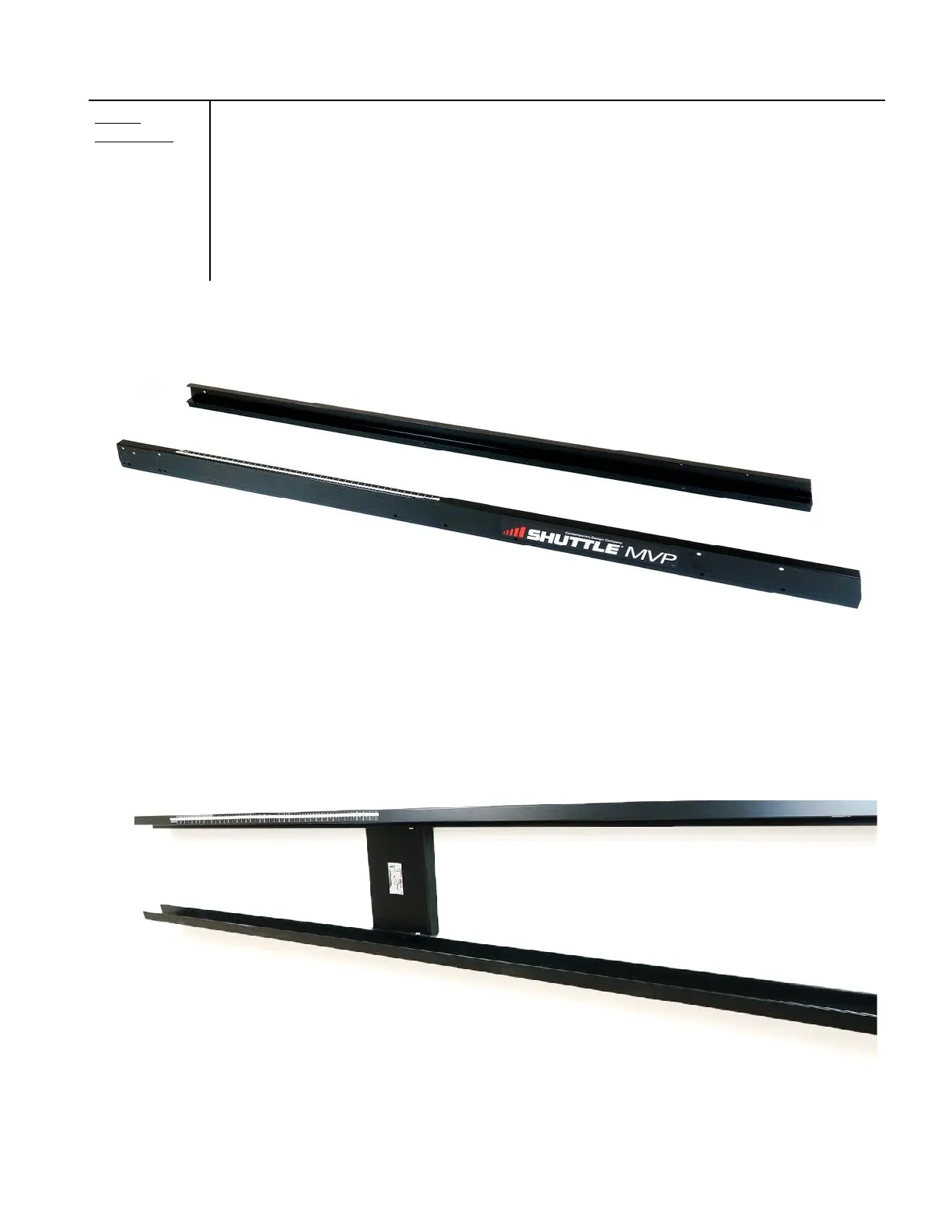

1. Arrange the MVP Rails parallel to each other on the floor, upright, hole patterns matching
and labels facing outward. (Pic 1.1)"
2. Insert the Connector Plate (sticker facing up) and align the holes of the plate with those
located midway along the Rails. (Pic 1.2)"
3. Insert the four 5/16” x 1 3/4” long button head bolts from outside the MVP Rails and
through the Connector Plate."
4. Hand tighten a 5/16” lock nut onto each bolt end on the inside of the Connector Plate.
1.1
1.2
