Shuttle MVP Elite Plus - Installing Rebound Stop Blocks

Page 8
STEP 4
INSTALLING THE REBOUND STOP BLOCKS
ITEMS "
REQUIRED"
REMAINING
PARTS IN
PARTS BAG #2
AND #3"
PARTS BAG #4#
1. Remove the two plastic Rebound Stop Blocks from Parts Bag #4 and unscrew the lock
nuts from the bolts."

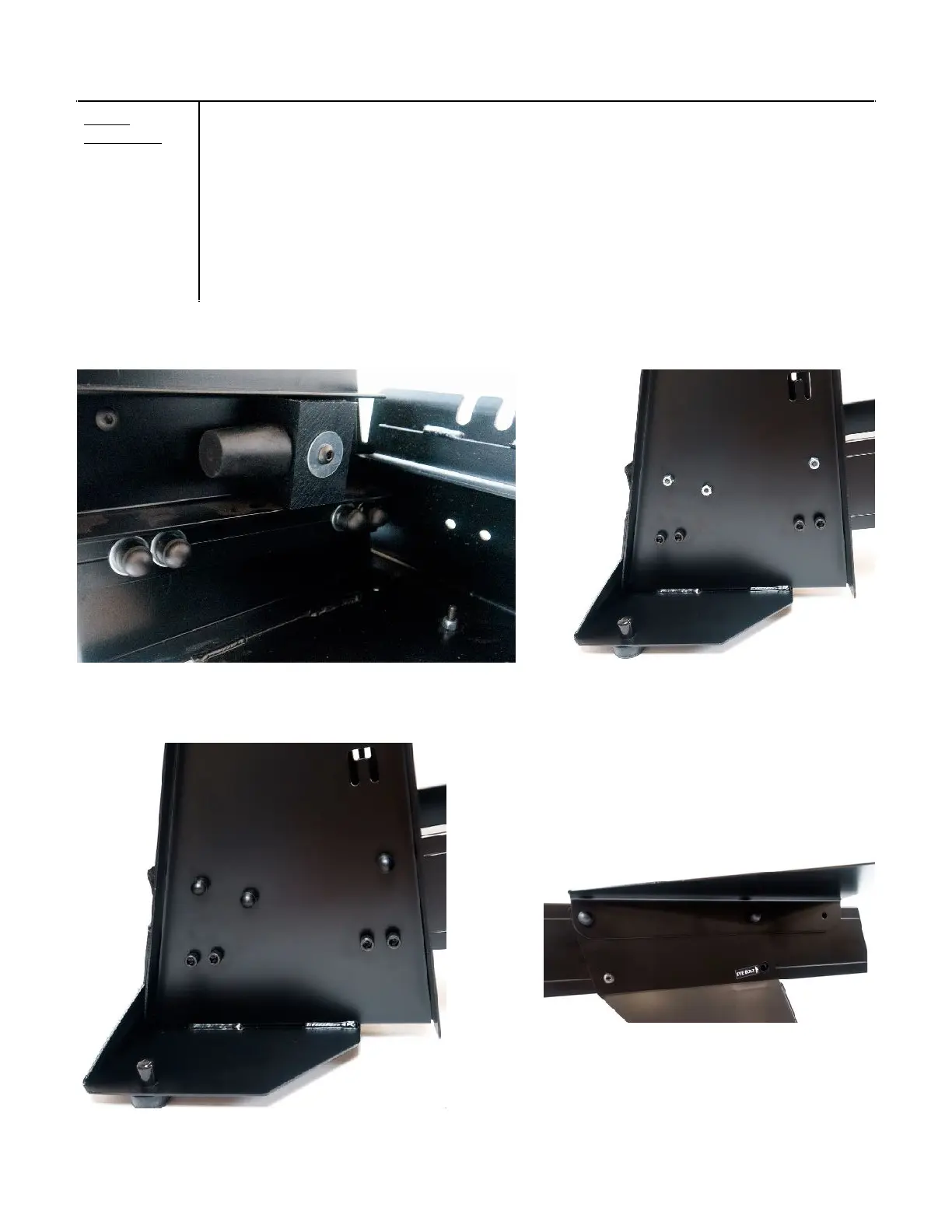

2. With the bumper cones pointing towards the Head-End Stand, insert the bolts of the black
plastic Rebound Blocks into the MVP Rails and through the Kickplate Structure. Tighten
down fully. (Pic 4.2)"
3. Place nut caps from Parts Bag #4 on the Rebound Stop Block’s. Now, place the nut caps
from Parts Bag #3 over the lower 8 lock nuts and upper 4 lock nuts on the Kickplate
Structure. (Pic 4.2 & 4.3)"
4. Place the nut caps from Parts Bag #2 over the 4 lock nuts on the outside of the Head-End
Stand. (Pic 4.4)
4.2.
4.2
4.3
4.4
