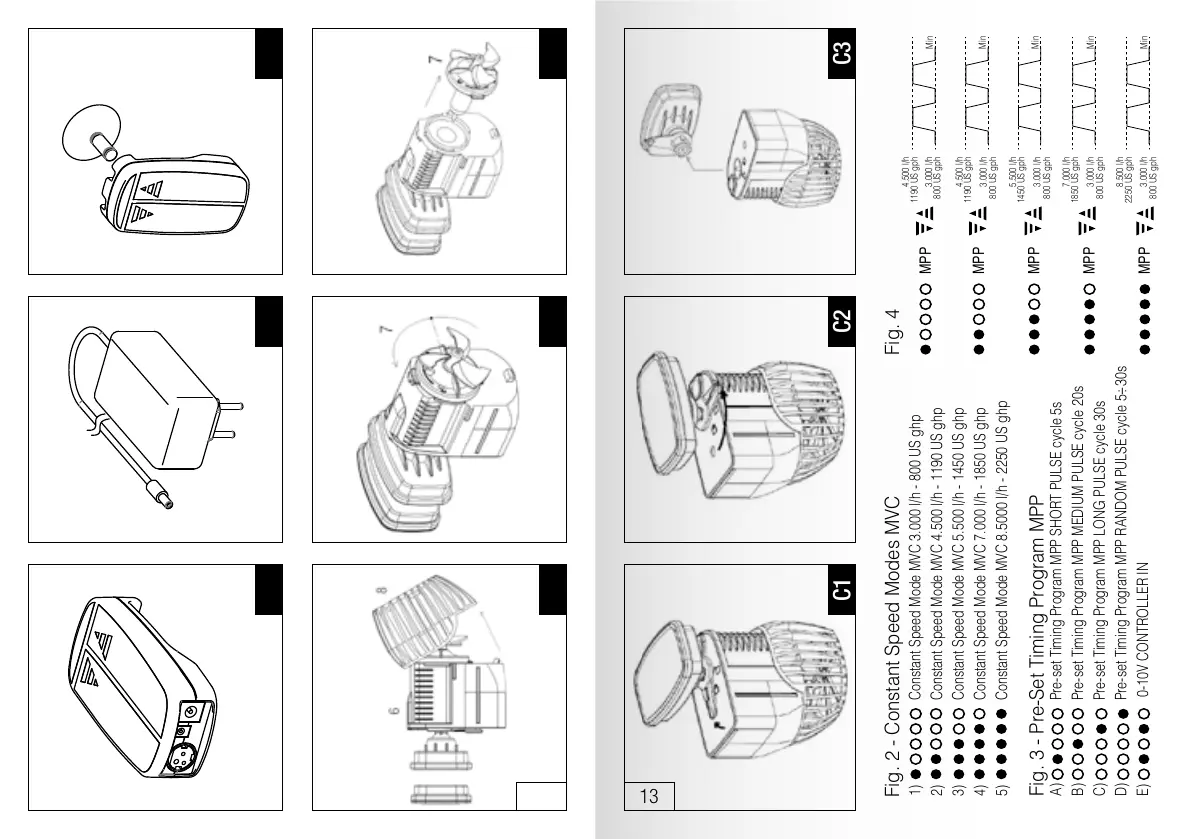

Fig. 2 - Constant Speed Modes MVC
Fig. 3 - Pre-Set Timing Program MPP
1) Constant Speed Mode MVC 3.000 l/h - 800 US ghp 2) Constant Speed Mode MVC 4.500 l/h - 1190 US ghp 3) Constant Speed Mode MVC 5.500 l/h - 1450 US ghp 4) Constant Speed Mode MVC 7.000 l/h - 1850 US ghp 5) Constant Speed Mode MVC 8.5000 l/h - 2250 US ghp
A) Pre-set Timing Program MPP SHORT PULSE cycle 5s B) Pre-set Timing Program MPP MEDIUM PULSE cycle 20s C) Pre-set Timing Program MPP LONG PULSE cycle 30s D) Pre-set Timing Program MPP RANDOM PULSE cycle 5÷30s E) 0-10V CONTROLLER IN
Fig. 4
MPP MPP MPP MPP MPP
4.500 l/h 3.000 l/h
Min Min Min Min Min
4.500 l/h 3.000 l/h 5.500 l/h 3.000 l/h 7.000 l/h 3.000 l/h 8.500 l/h 3.000 l/h
1190 US gph 1190 US gph
800 US gph 800 US gph
1450 US gph
800 US gph
1850 US gph
800 US gph
2250 US gph
800 US gph
