20 DUSTHUNTER T · Operating Instructions · 8012428 V 2.0 · © SICK MAIHAK GmbH Germany
Product Description
2.2.1 Sender/receiver unit
The sender/receiver unit contains the optical and electronic subassemblies to send and
receive the reflected light beam as well as to process and evaluate the signals. Versions
with contamination measurement are also fitted with swivel mechanisms (
→ p. 18, Fig. 6
and
→ p. 21, Fig. 9).

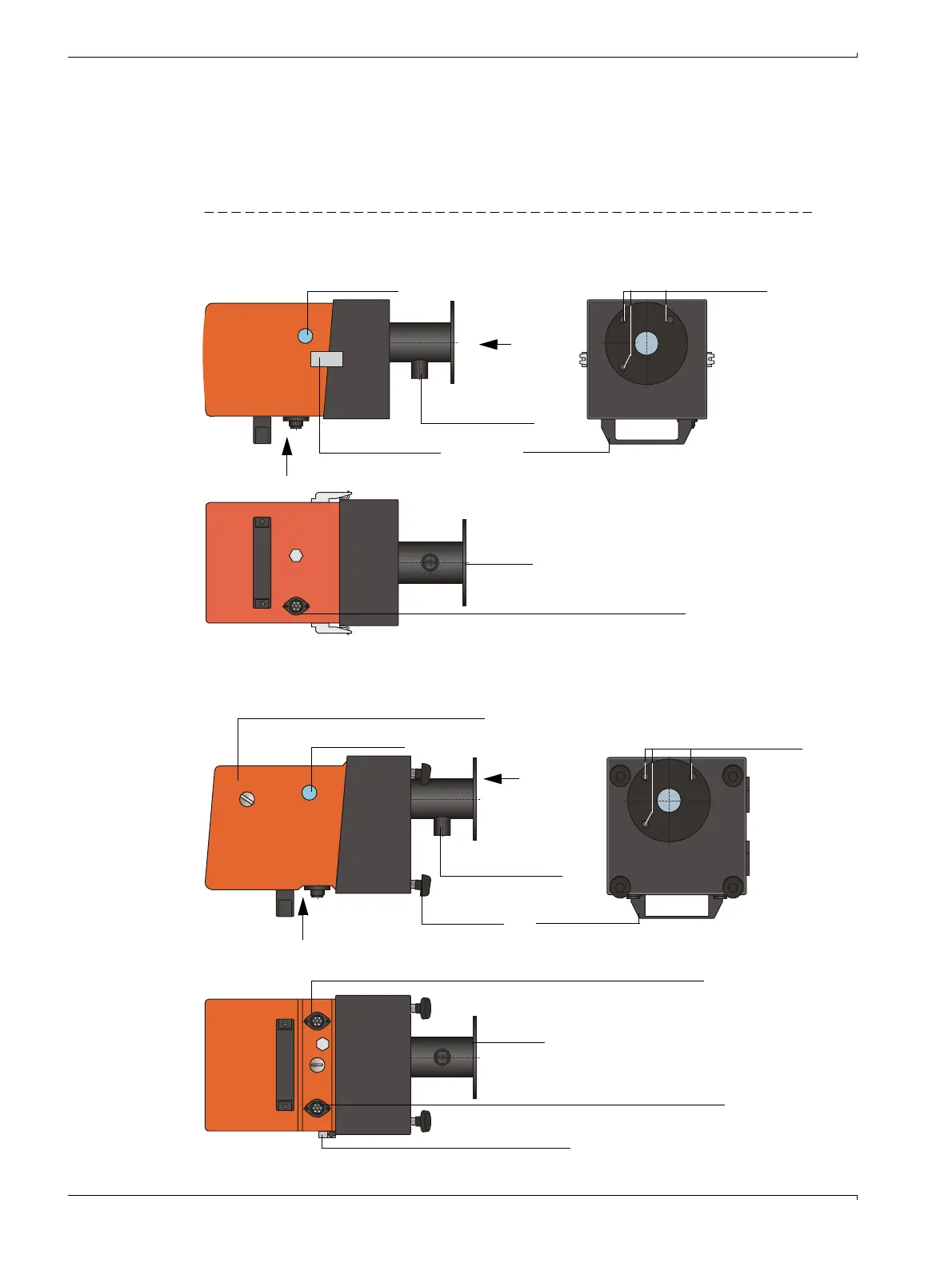

Figure 8 Sender/receiver unit DHT-Txx
Purge air connection
Connection cable connection to MCU
A
A
B
Flange
Tension lock
Handle
B
Sender/receiver unit for DUSTHUNTER T100/200
Sender/receiver unit for DUSTHUNTER T50
Control window Mounting holes
Purge air connection
Connection for connection cable to MCU
Control window
A
A
B
B
Connection for connection cable to reflector (only for Dusthunter T200)
Flange
Mounting holes
Knurled screw Handle
Housing with electronics (swivel-mounted)
Hinge
