Operating Instructions
LMS5xx
Mounting
8013796/ZM63/2017-05-09 © SICK AG · Germany · All rights reserved · Subject to change without notice 57
Chapter 5
5.2.8 Mounting with mounting kit 2
Using mounting kit 2 (only in conjunction with mounting kit 1) you can align the LMS5xx in
two planes. The maximum adjustment angle is ±11° in both planes.

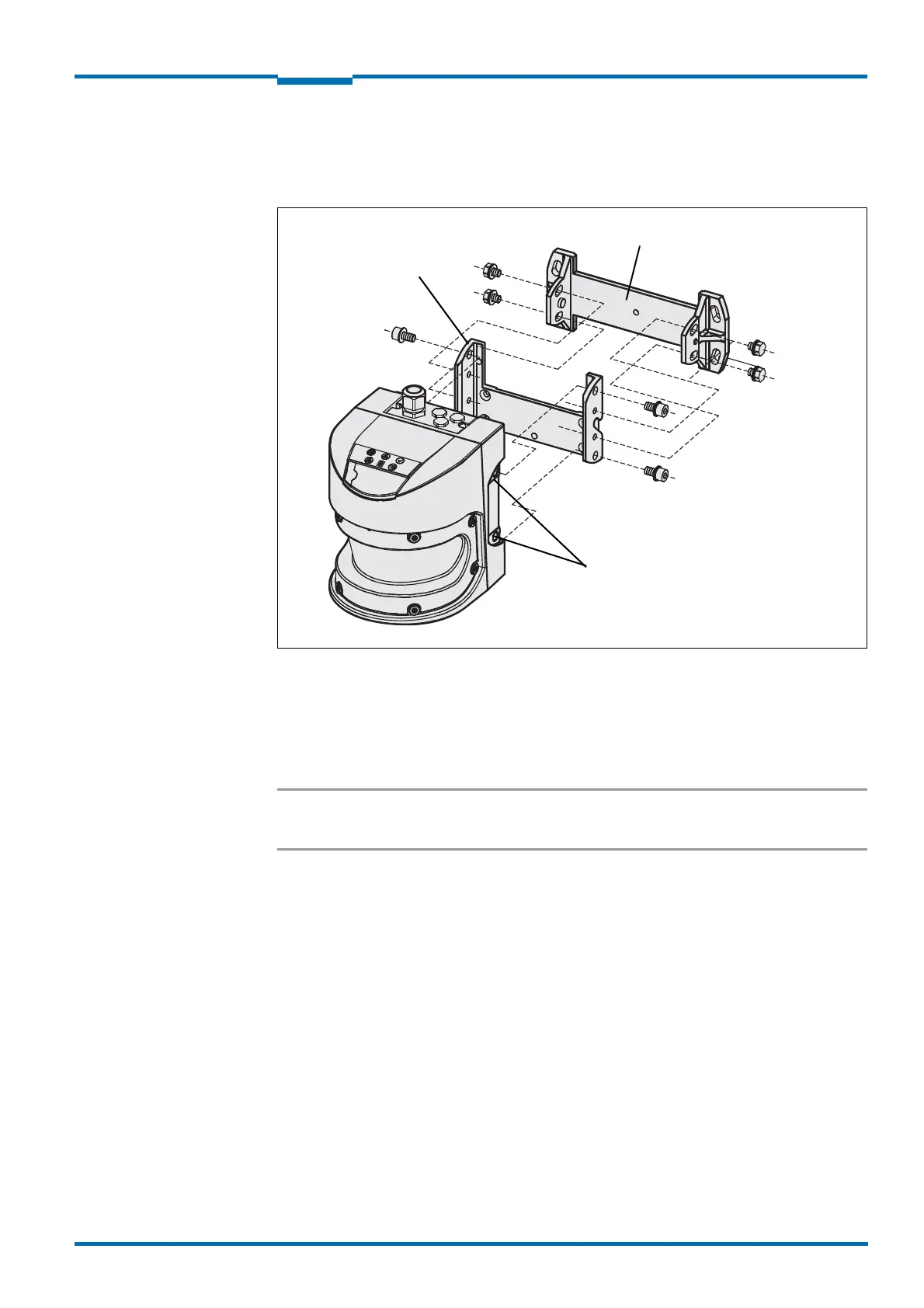

Fig. 29: Mounting with mounting kits 1 (part no. 2015623) and 2 (part no. 2015624)
1. Mount mounting kit 2 on the mounting surface.
2. Mount mounting kit 1 on mounting kit 2.
3. Mount the LMS5xx on mounting kit 1.
4. Adjust the LMS5xx longitudinally and crosswise.
Important During mounting, please observe the dimensional drawings (see section 10.3.3
“Dimensional drawings, mounting kits” on page 109).
Fixing screws
Mounting kit 1
Mounting kit 2
Threaded holes M8×9
