10
MHS400 smart Installation and operating instructions
05.2017
5. Size range
Scheme A Scheme C
Inside frame width (RIB) size 1 2144 mm – 2794 mm 4284 mm – 5584 mm
1
Inside frame width (RIB) size 2 2795 mm – 4099 mm 5585 mm – 8194 mm
1
Inside frame width (RIB) size 3 4100 mm – 6666 mm 8195 mm – 13328 mm
1
Sash height
2
(standard for PORTAL HS) 1175 mm – 2675 mm 1175 mm – 2675 mm
Sash weight PORTAL HS 200 max. 200 kg max. 200 kg
Sash weight PORTAL HS 300 max. 300 kg max. 300 kg
Sash weight PORTAL HS 400 max. 400 kg max. 400 kg
Max. permissible sash weight for MHS400 smart max. 400 kg max. 400 kg
Backset (gear) PORTAL HS 200 27.5 mm 27.5 mm
Backset (gear) PORTAL HS 300 37.5 mm 37.5 mm
1)
per slide drive = RIB/2
2)
for other sash heights (on request), note the special cable length!

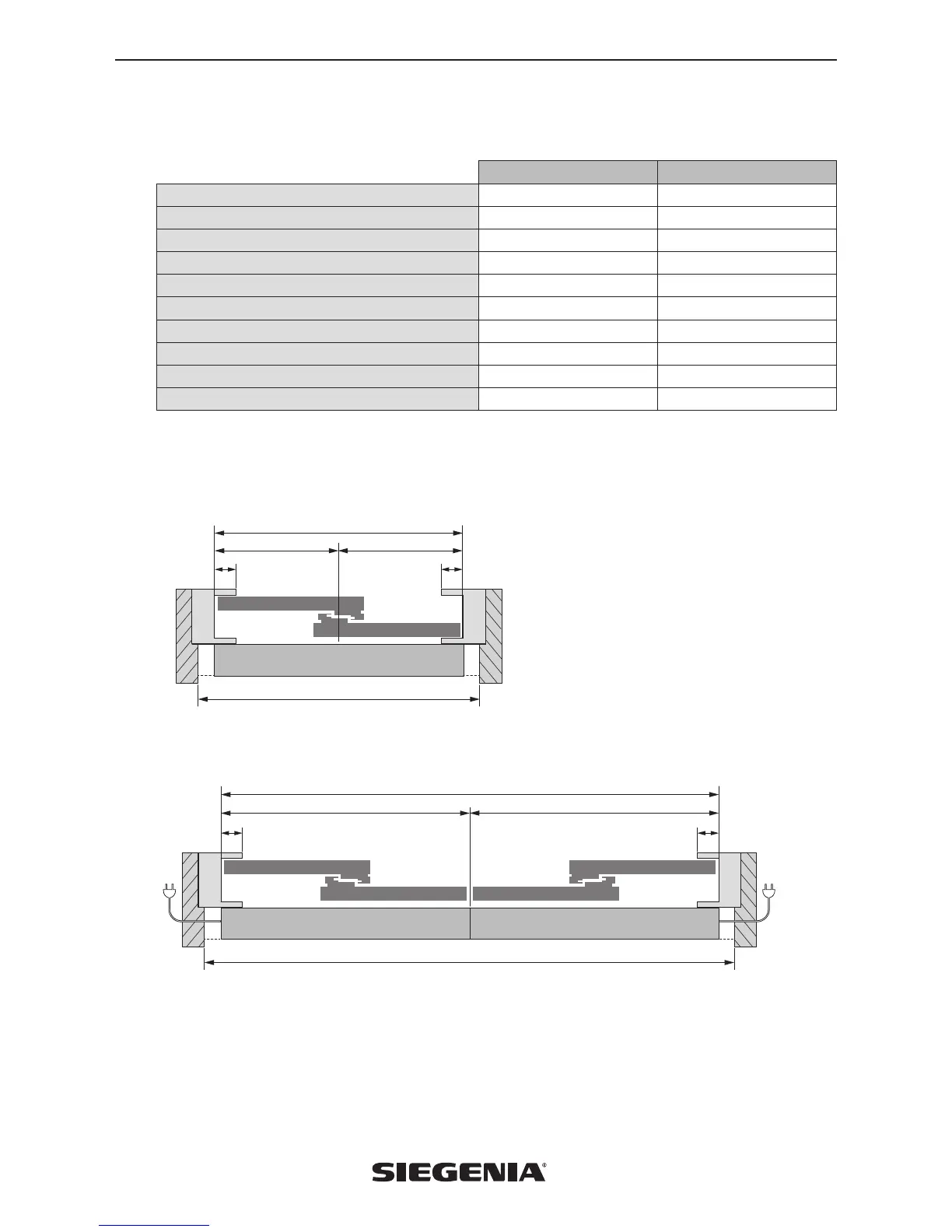

Dimension drawing – Scheme A
= =
RIB (measured with cover) 1
slide drive SA
Other cowl lengths (on request)
1 1
Dimension drawing – scheme C
Dimension 1 = inside frame edge
as far as centre of sash join edge
slide drive SA
Other cowl lengths (on request)
slide drive SA
Dimension 2 = inside frame edge
as far as centre of sash join edge
RIB (measured with cover) 1
Cable outlet
(selectable)
Cable outlet
(selectable)
1 1
