7.2 Information about mains cable running
Important information for safety and assembly
The fitting of the mains cable is determined by the prevailing conditions on site. There are two assembly options:

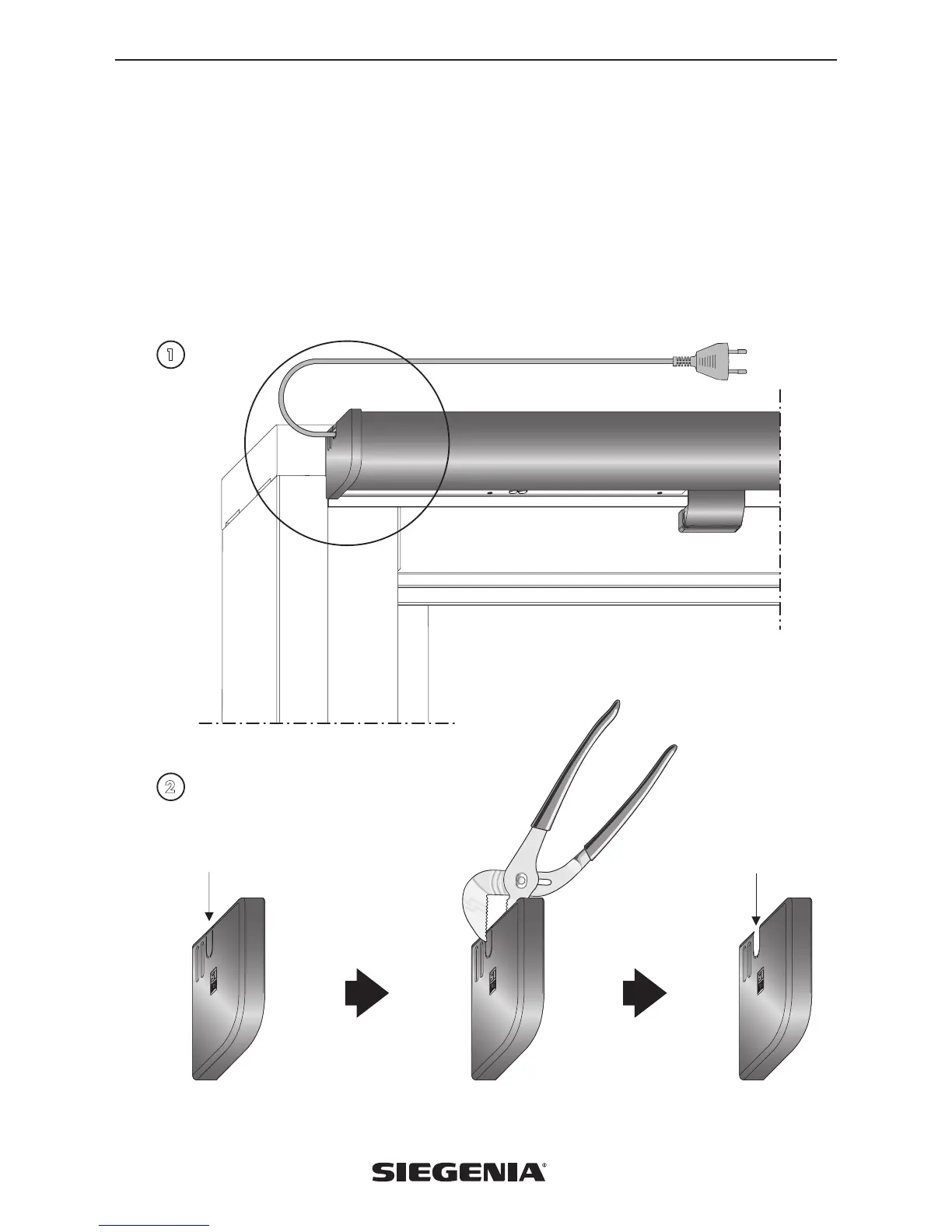

Assembly option 1 – surface-mounted mains cable running
The MHS400 smart system is delivered as standard with a mains cable. The cable outlet for scheme A is always at the top of
the slide drive SA on the locking side (Fig. 1); for scheme C, it can be located on the outside of the slide drive SA on either the
left-hand side or the right-hand side. A notch for the cable outlet must be made on the cover cap SA of the cover profile SA
(see Fig. 2). A suitable mains socket must be located near the cable outlet. It is recommended to route the mains cable
through an appropriate installation duct.
