MHS400 smart Installation and operating instructions
05.2017
8. Commissioning – scheme A
8.1 General information for commissioning
• Following installation of the MHS400 smart (initial commissioning), you must carry out a reference run as well as a
calibration and teach-in run.
• The reference run, as well as the calibration and teach-in run help to determine the size of the lift and slide element and
the displacement force.
• The reference run must be performed again in the event of a power failure. The calibration and teach-in run only has to be
performed when commissioning the equipment.
• Any tasks relating to commissioning may only be completed by qualified professionals.

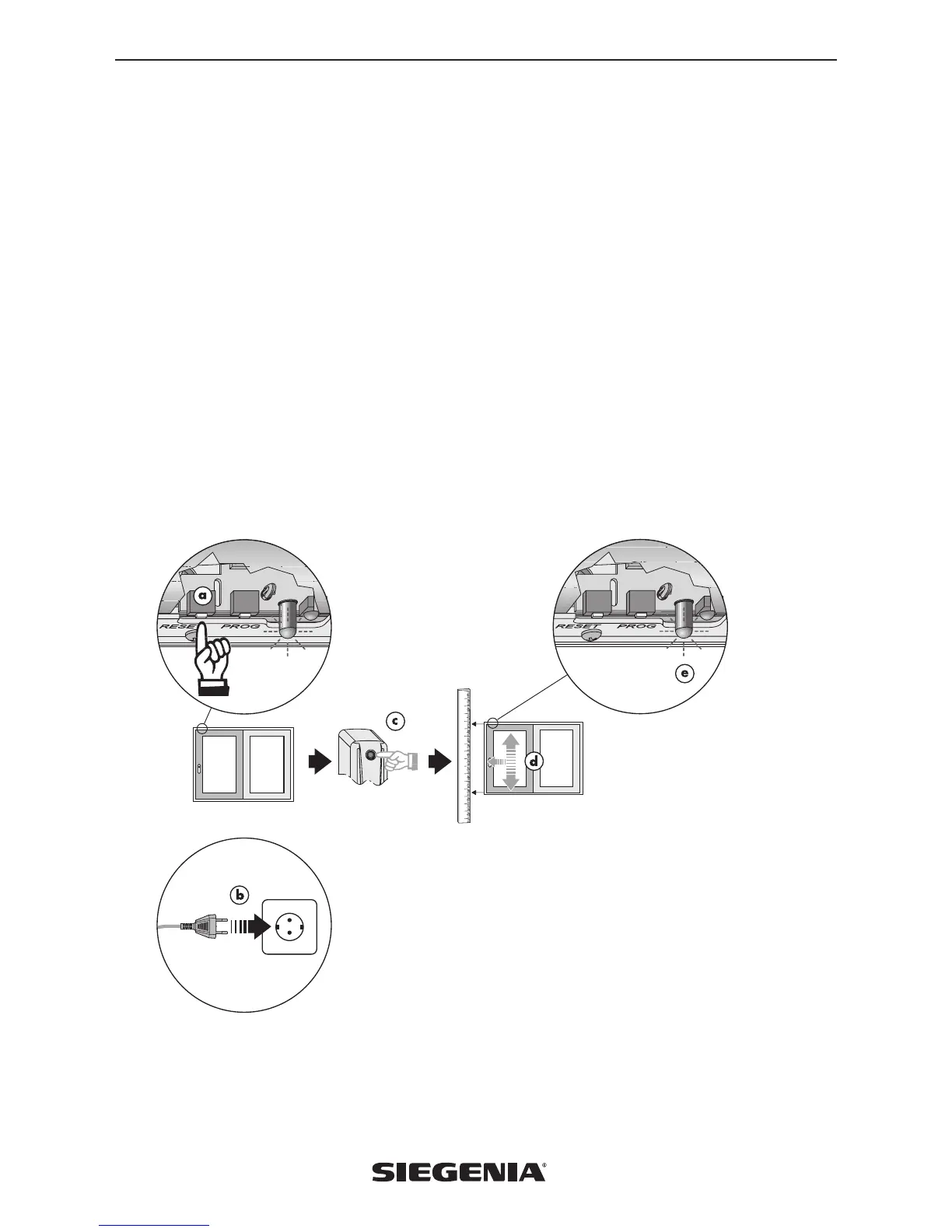

8.2 Reference run
1. Press reset button (a) or break the electric circuit and then reconnect the power supply (b)
2. Move lift & slide sash into “Close” position (manually if necessary)
3. Press button on the lift drive (c)
4. The lift & slide sash is automatically lowered, lifted and lowered/locked during the reference run (d).
Note: The LED flashes red during the reference run (e).
5. The LED goes out after the reference run has been completed and the “Lock” position has been reached.
