10.10 Non-drive end rolling-contact bearings with bearing housing

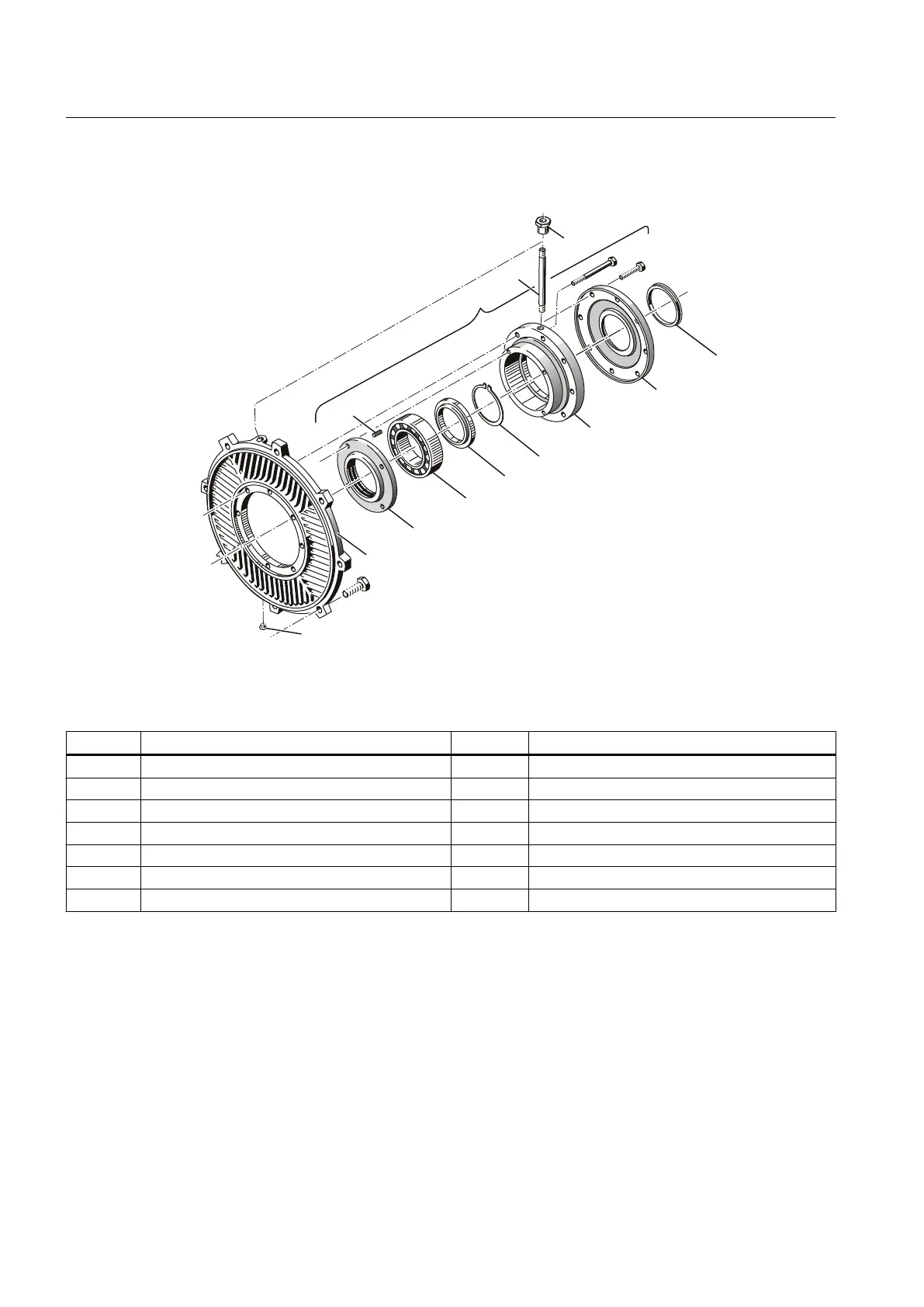

Image 10-5 Non-drive end roller bearings with bearing housing
Table 10-6 Spare parts for non-drive end roller bearings with bearing housing
Part Description Part Description
4.00 Roller bearing cartridge (floating bearing) 4.50 Bearing housing
4.10 V ring 4.60 Inner bearing cover
4.20 Outer bearing cover 4.81 Nut
4.30 Locking ring 4.82 Grease tube
4.35 Grease slinger 6.00 End shield
4.40 Deep-groove ball bearing 6.67 Sealing plugs
4.45 Compression spring
Spare parts
10.10 Non-drive end rolling-contact bearings with bearing housing
SIMOTICS TN Series N-compact 1LA8
124 Operating Instructions 05/2016
