Special Signal modules
5-4
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03

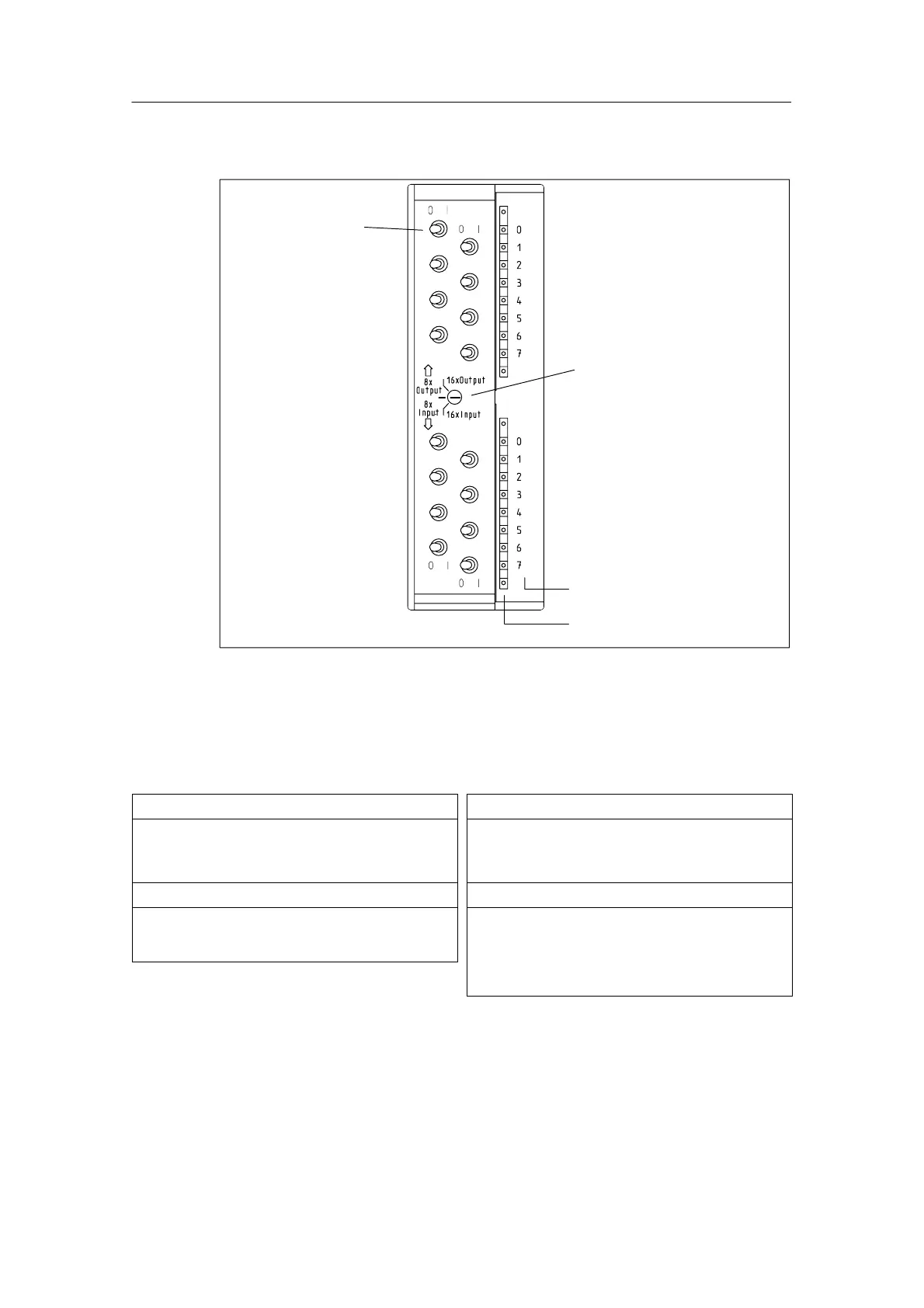

Module view (without front door)
Status display – green
Channel number
Switch for input status
Switch for setting the function
Figure 5-1 Module view of the simulator module SM 374; IN/OUT 16
Technical specifications of the SM 374; IN/OUT 16
Dimensions and Weight
Dimensions W x H x D
(in millimeters)
40 125 110
Weight Approx. 190 g
Data for Specific Module
Optional simulation of 16 inputs
16 outputs
8 in– and outputs
Voltages, Currents, Potentials
Current consumption from the
backplane bus
max. 80 mA
Power dissipation of the module type. 0.35 W
Status, Interrupts, Diagnostics
Status display yes, green LED per
channel
Interrupts No
Diagnostic functions No
