Siemens 6ES7 305-1BA80-0AA0 Product Information

Basic functions
4.1 Encoder settings
Connection of the SINAMICS S120 to the Technology CPU
Product Information, 09/2011, A5E00480378-04
103

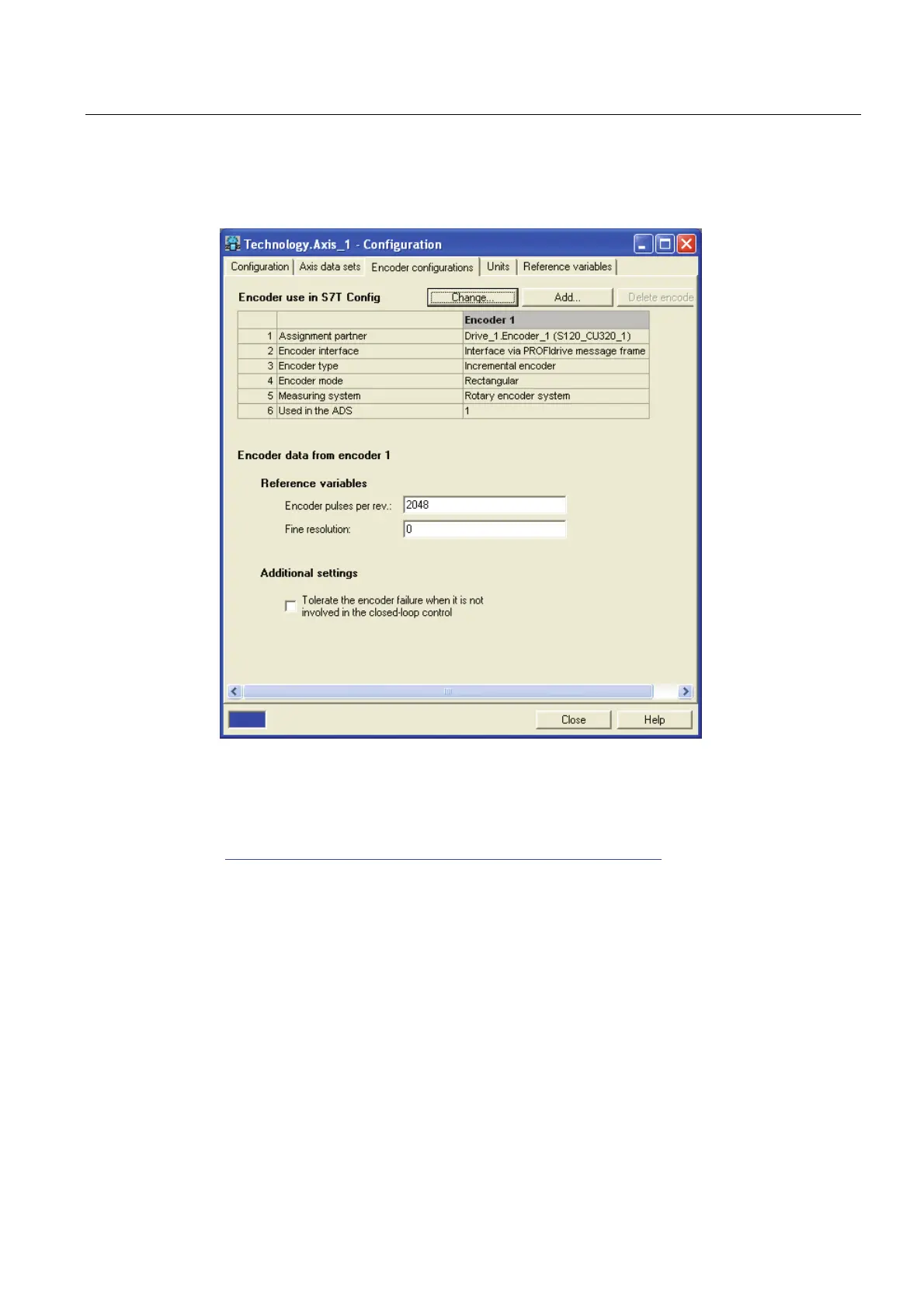

The "Encoder configurations" area of the "Configuration" dialog box contains the encoder
settings for the axis.
List of encoder parameters to be set
A current list of the encoder parameters to be set is available for download on the Internet in
the "Applications and Tools" area at the following address:
(http://support.automation.siemens.
com
/WW/view/en/ 27038754)
