Expert Functions
5.7 Triggering an output cam using the TM17 terminal module
Connection of the SINAMICS S120 to the Technology CPU
166 Product Information, 09/2011, A5E00480378-04
To create a TM17, follow these steps:
1. Switch to the S120_CU320 > Input/output components
folder in the S7T Config project navigator.
2. Click "Insert input/output components".

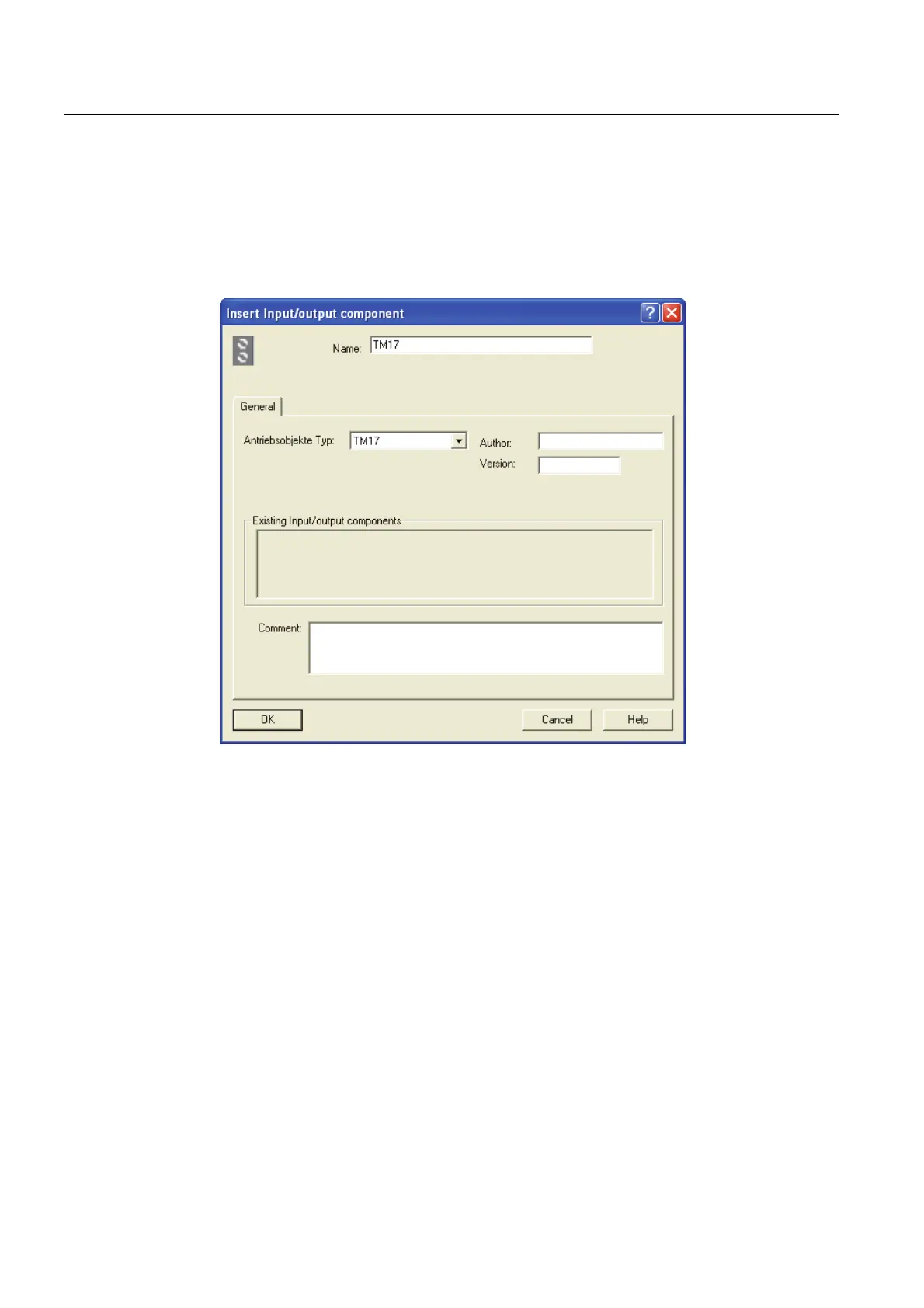

The "Insert input/output components" dialog will be displayed.
3. Select the TM17 drive type from the selection list.
4. Enter "TM17" in the "Name" field for this example.
5. Click "OK" to accept the settings.
