Commissioning
3.3 Preparing the connection to the SINAMICS
Connection of the SINAMICS S120 to the Technology CPU
24 Product Information, 09/2011, A5E00480378-04
3.3.3 Configuring in HW Config
Introduction
Now double-click the "Hardware" element to configure the hardware of the
SIMATIC 300 station using the HW Config tool.
Technology CPU: configuring the hardware
1. Select the "SIMATIC Technology CPU" hardware catalog and add there a mounting rail
with drag-and-drop to the configuration.
2. Then give the mounting rail at slot 1 a power supply, e.g. PS 307 2A, the mounting rail
at slot 2 a CPU, e.g. the Technology CPU 317T-2 DP.
Note
When you add the Technology CPU, pay attention to the firmware version or the order
number of the CPU that is located on the front panel of the CPU.

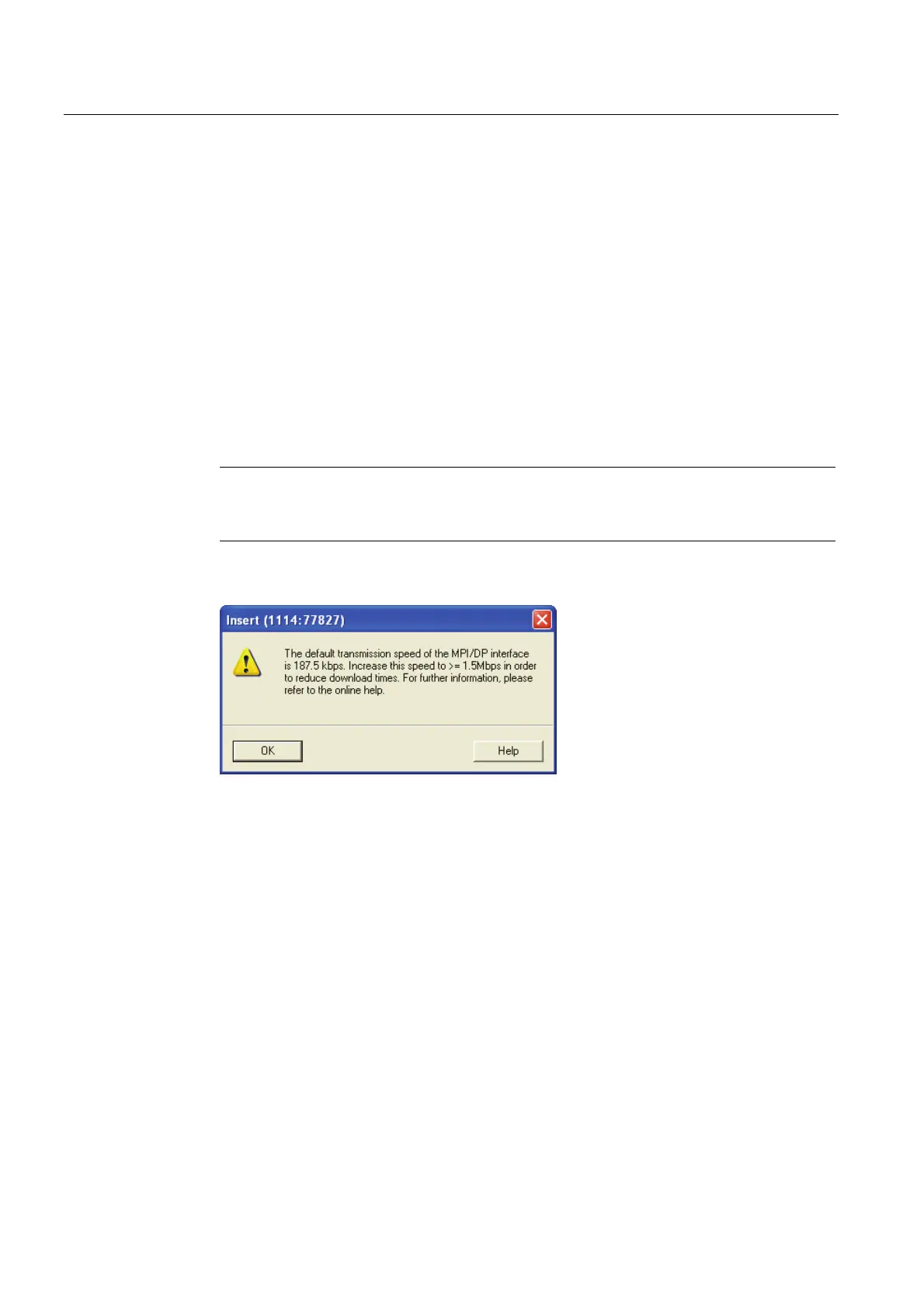

3. Click OK to confirm the displayed message for downloading the system data when the
Technology CPU is added.
