Digital modules
3.33 Digital IO module SM 323; DI 8/DO 8 x DC 24 V/0.5 A; (6ES7323-1BL01-0AA0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
3-117

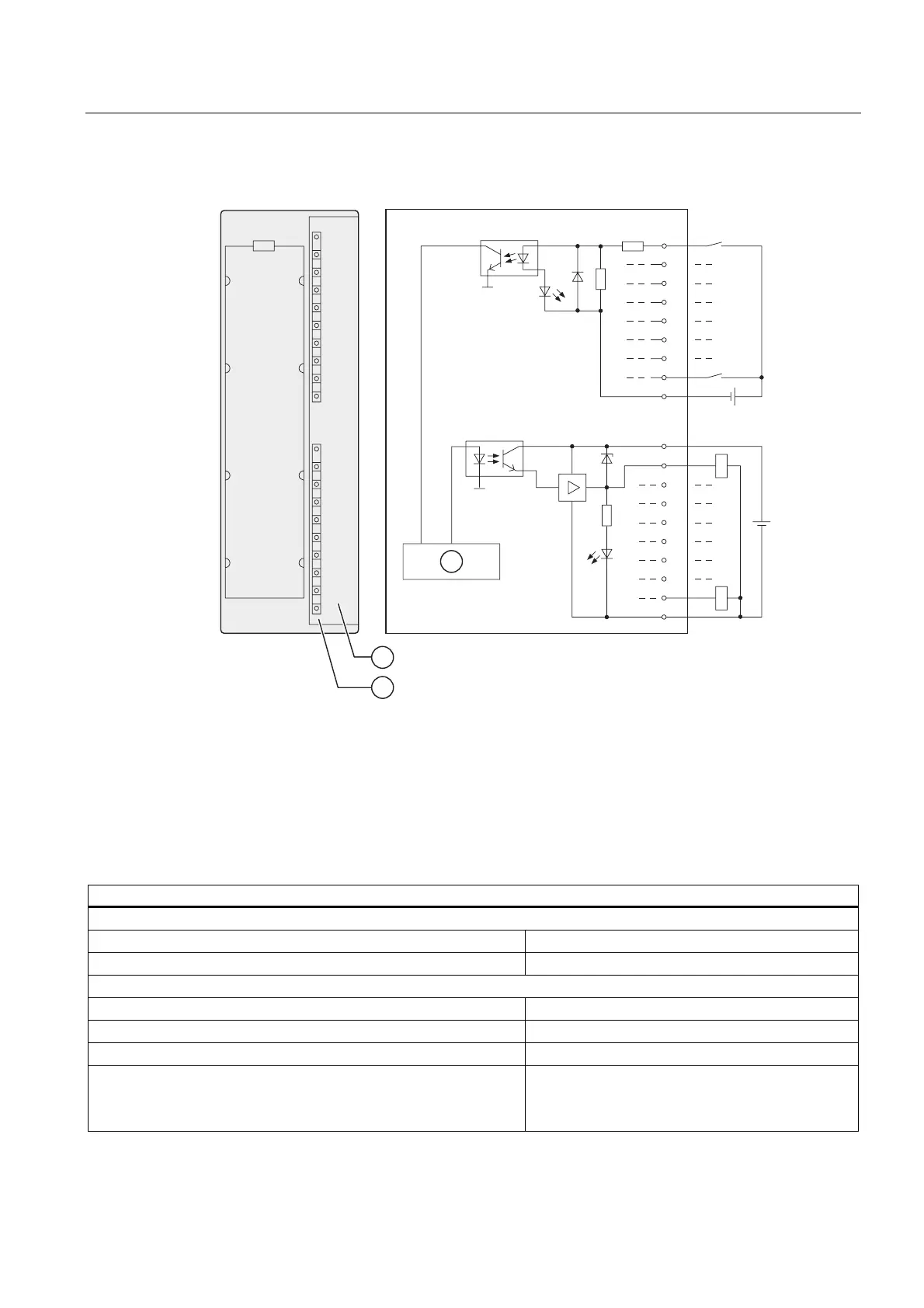

Wiring and block diagram of SM 323; DI 8/DO 8 x DC 24 V/0.5 A
9
0
0
9
/
0
0
① Channel number
② Status displays - green
③ Backplane bus interface
Technical data of SM 323; DI 8/DO 8 x DC 24 V/0.5 A
Technical data
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 117
Weight approx. 200 g
Module-specific data
Isochronous mode supported No
Number of inputs 8
Number of outputs 8
Cable length
• unshielded
• shielded
max. 600 m
max. 1000 m
