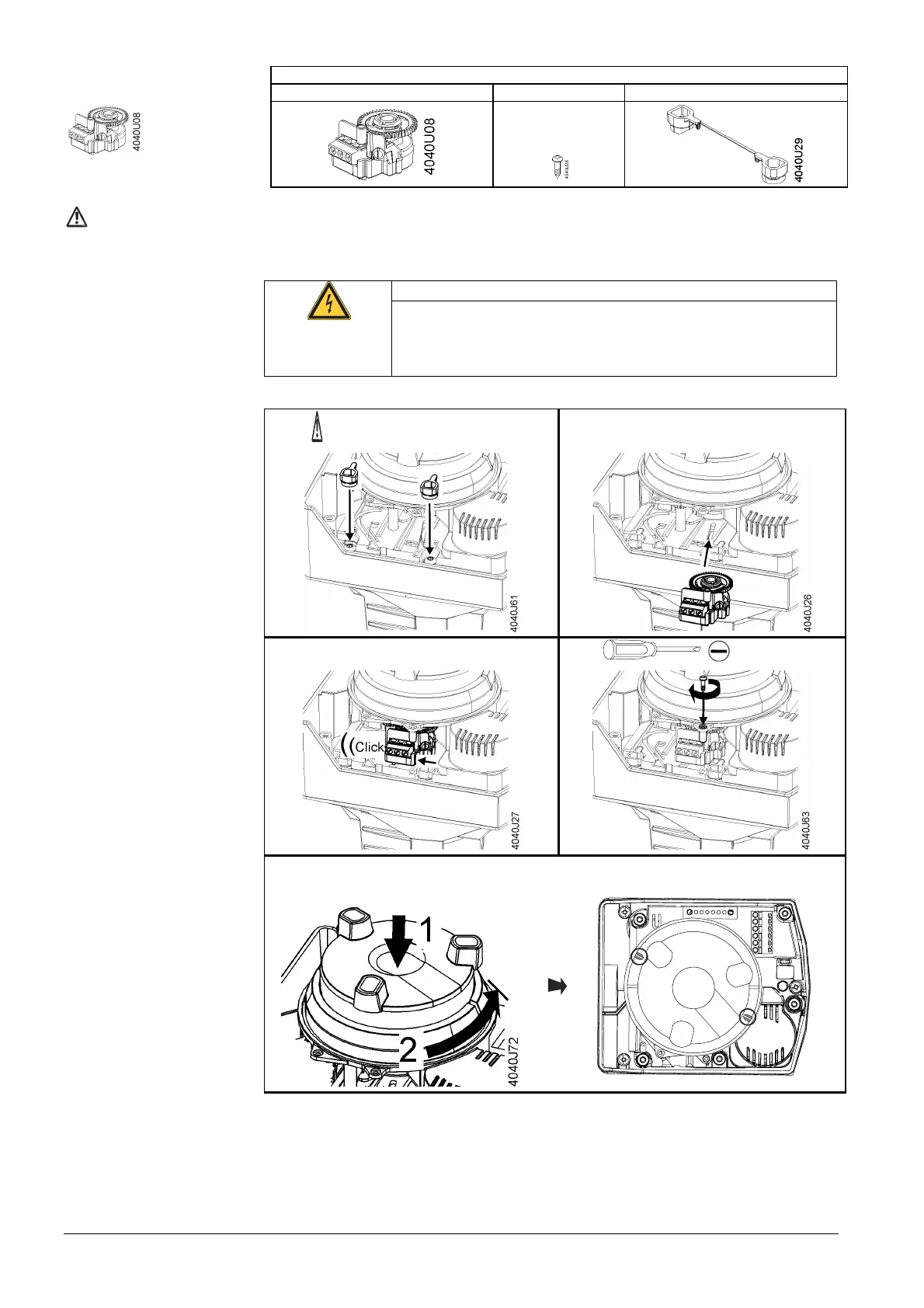

Scope of delivery
1 potentiometer ASZ7.5 1 screw 2 screw covers
1 pc.
First, observe "Special notes on mounting" (page 35).
Also observe "Notes on ASZ7.5" (page 19).
Danger!
Danger to life from electrical current!
If a live wire gets in contact with the screws the whole actuator
housing is a live.
· Fit the screw covers first.
1 2
3
4
No.: 1
5
Turn to 0%
4
0
4
0
J
7
3
Potentiometer
ASZ7.5
Plug-in space A
