6.5.2 Following error monitoring
Description
The following error is the deviation between the position setpoint and the position actual value
while the converter is positioning the axis.
3RVLWLRQ
DFWXDOYDOXH
3RVLWLRQ
VHWSRLQW
)ROORZLQJ
HUURU
7ROHUDQFH
W
V
)
)

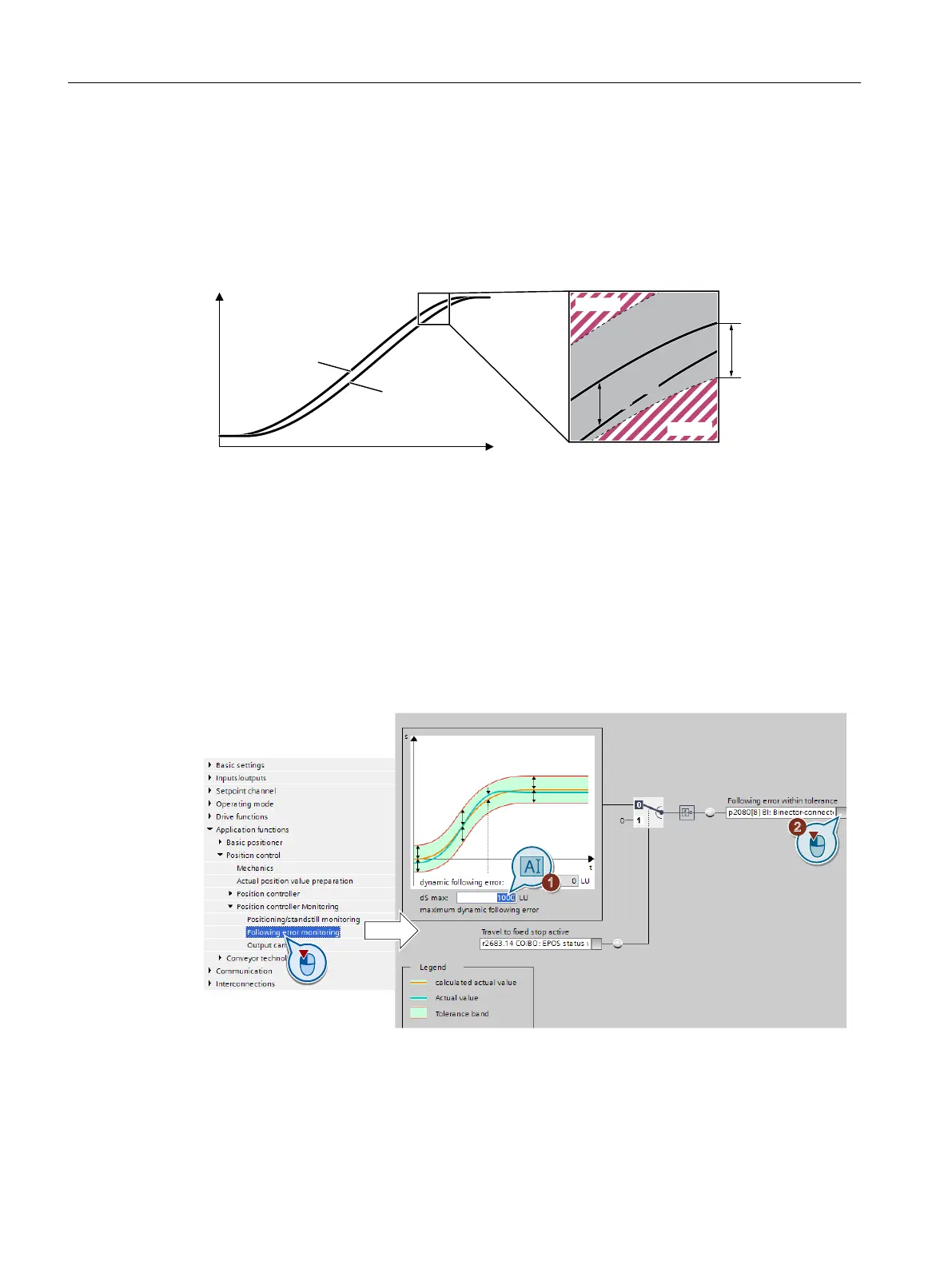

Figure 6-6 Monitoring the following error
The converter reports fault F07452 if the following error is too high. If you set the tolerance to 0,
monitoring is deactivated.
Setting following error monitoring
Requirement
You have selected the "Monitoring" screen and the "Following error monitoring" tab.
Procedure
Commissioning
6.5 Setting the monitoring functions
Basic positioner
54 Function Manual, 09/2020, FW V4.7 SP13, A5E34257659B AG
