Procedure

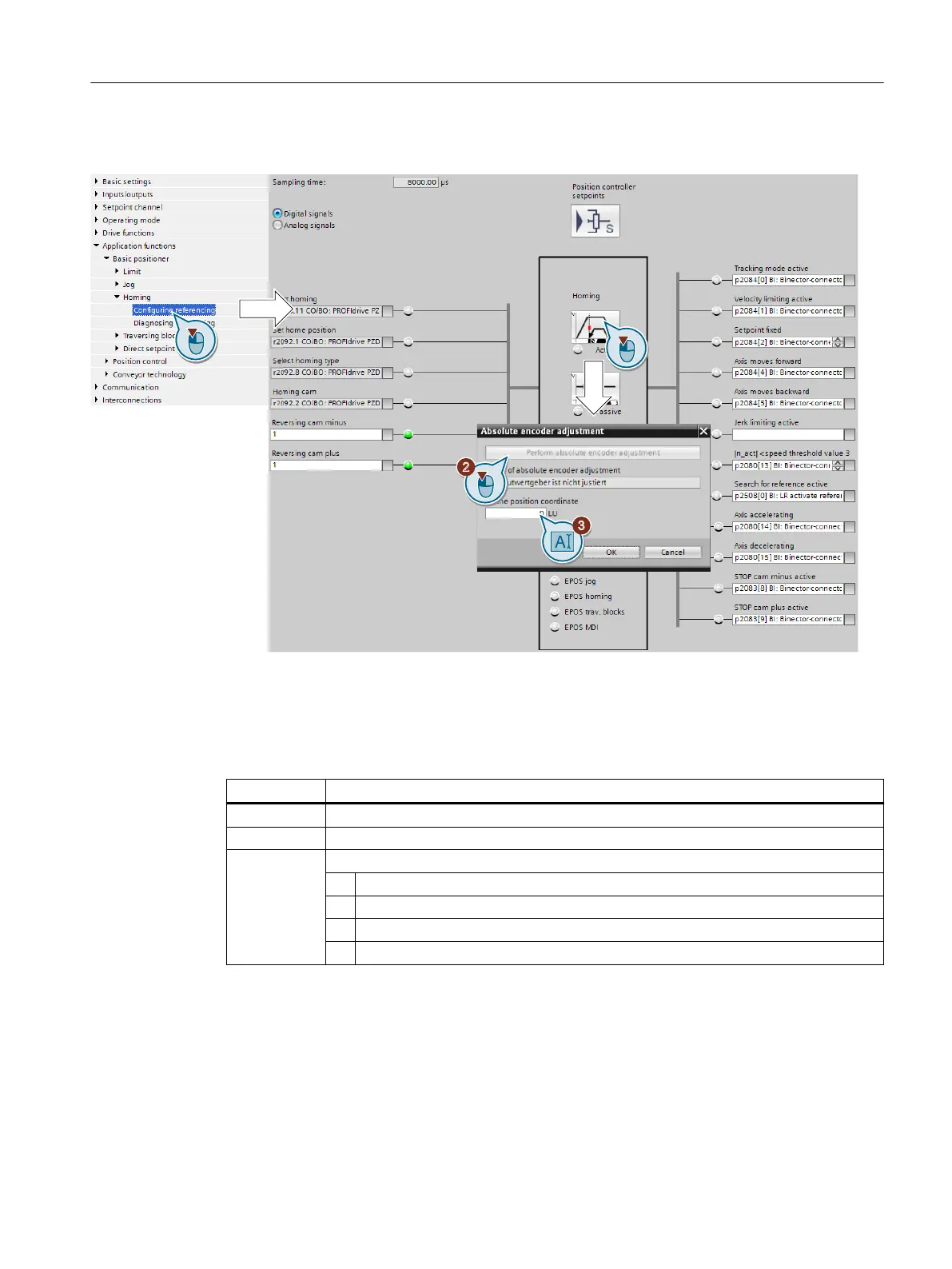

1. Specify the reference point coordinate.
2. Accept the reference point coordinate in the position actual value.
You have now adjusted the absolute encoder.
❒
Parameter Meaning
p2598 Reference point coordinate, signal source
p2599 Reference point coordinate value
p2507 Absolute encoder adjustment status
0 Error has occurred in the adjustment
1 Absolute encoder was not adjusted
2 Absolute encoder was not adjusted and encoder adjustment was initiated
3 Absolute encoder adjusted
Commissioning
6.6 Referencing
Basic positioner
Function Manual, 09/2020, FW V4.7 SP13, A5E34257659B AG 69
