Procedure: Fixed stop using an external signal

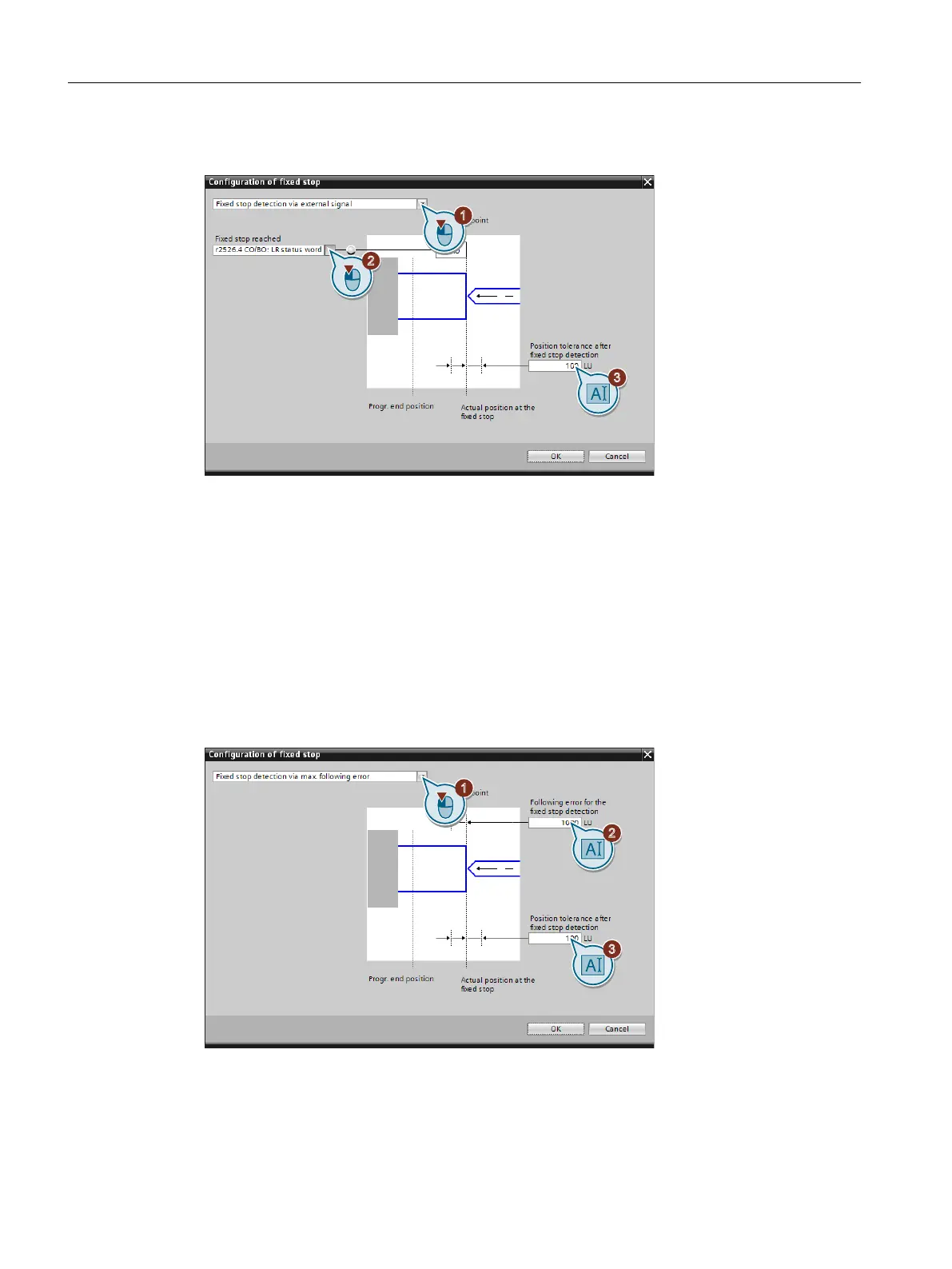

1. Select "Fixed stop using an external signal".
2. Interconnect the sensor that signals when the xed stop is reached with this signal.
3. Set the tolerance.
After the xed stop is detected, the converter monitors the actual position of the axis. If the
position actual value changes by more than this distance, then the converter stops the axis
and outputs fault F07484. Therefore, the converter detects that the xed stop has "broken
away".
You have now set "Travel to xed stop" using an external signal.
❒
Procedure: Fixed stop using maximum following error
Commissioning
6.8 Traversing blocks
Basic positioner
84 Function Manual, 09/2020, FW V4.7 SP13, A5E34257659B AG
